Removal and Installation of Rear Door Speaker: Removal

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove door finisher. Refer to DOOR FINISHER .
  2. Remove screws and remove speaker.
  3. Disconnect connector.

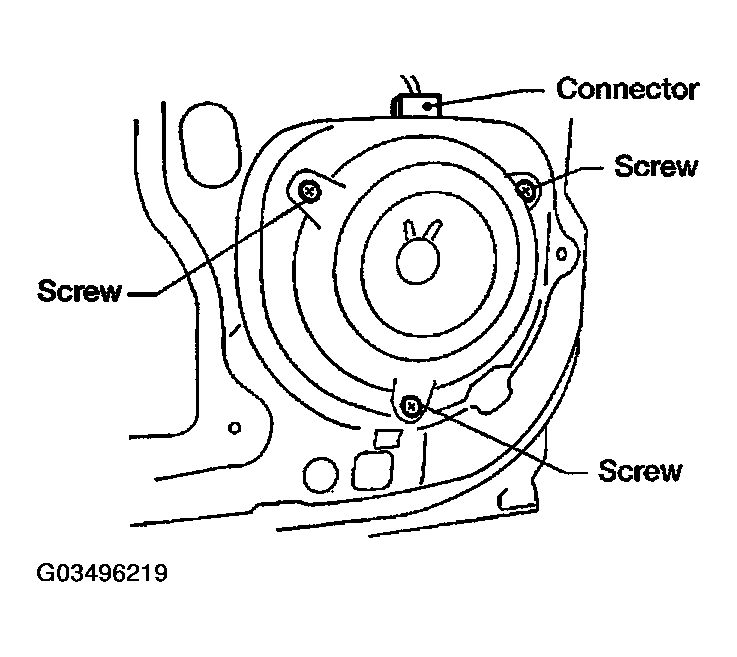

Fig 1: Removing Rear Door Speaker
G03496219Courtesy of NISSAN MOTOR CO., U.S.A.
