Wiring Diagram - WIPER -

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

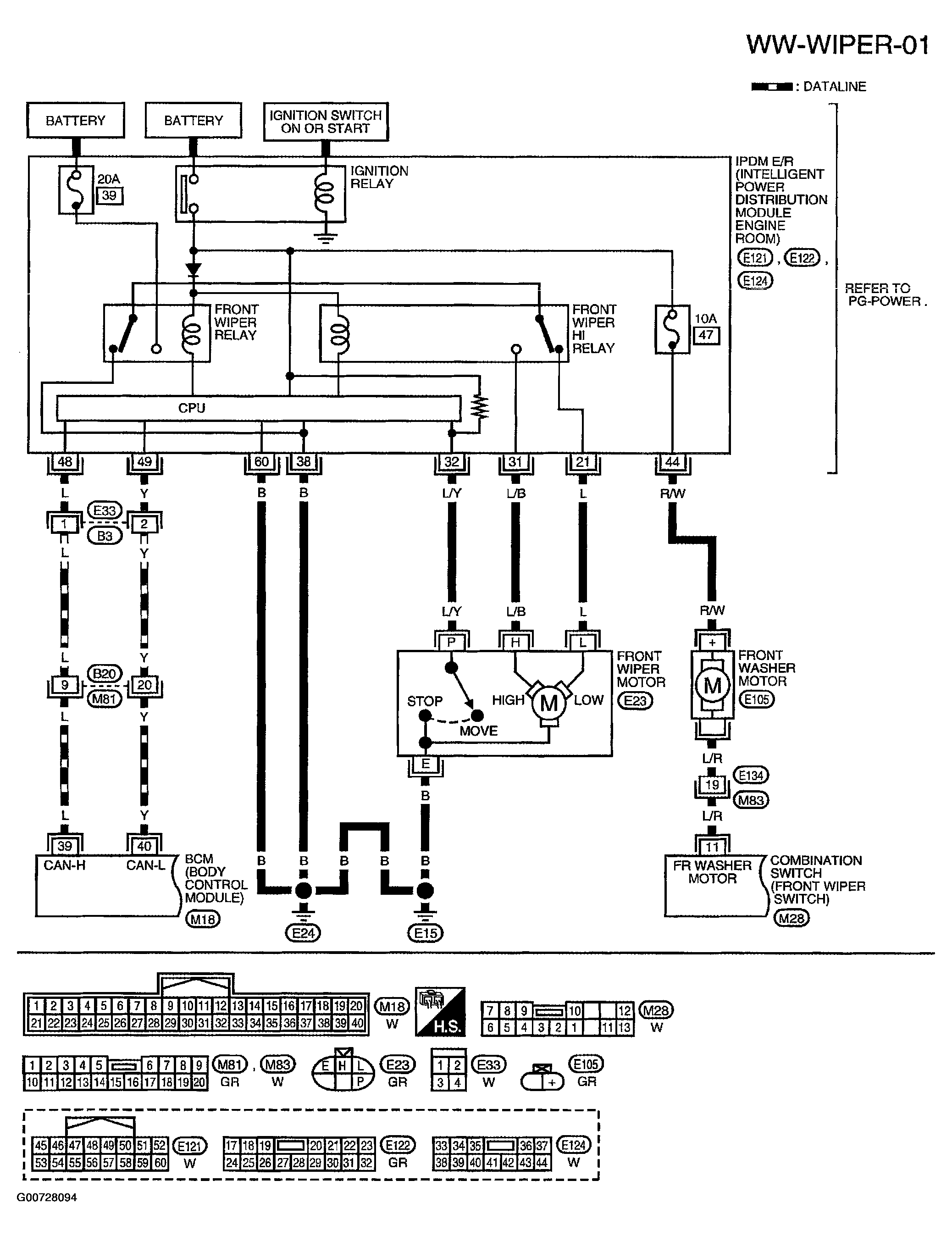

Fig 1: Identifying Wiring Diagram - WW-WIPER-01
G00728094Courtesy of NISSAN MOTOR CO., U.S.A.

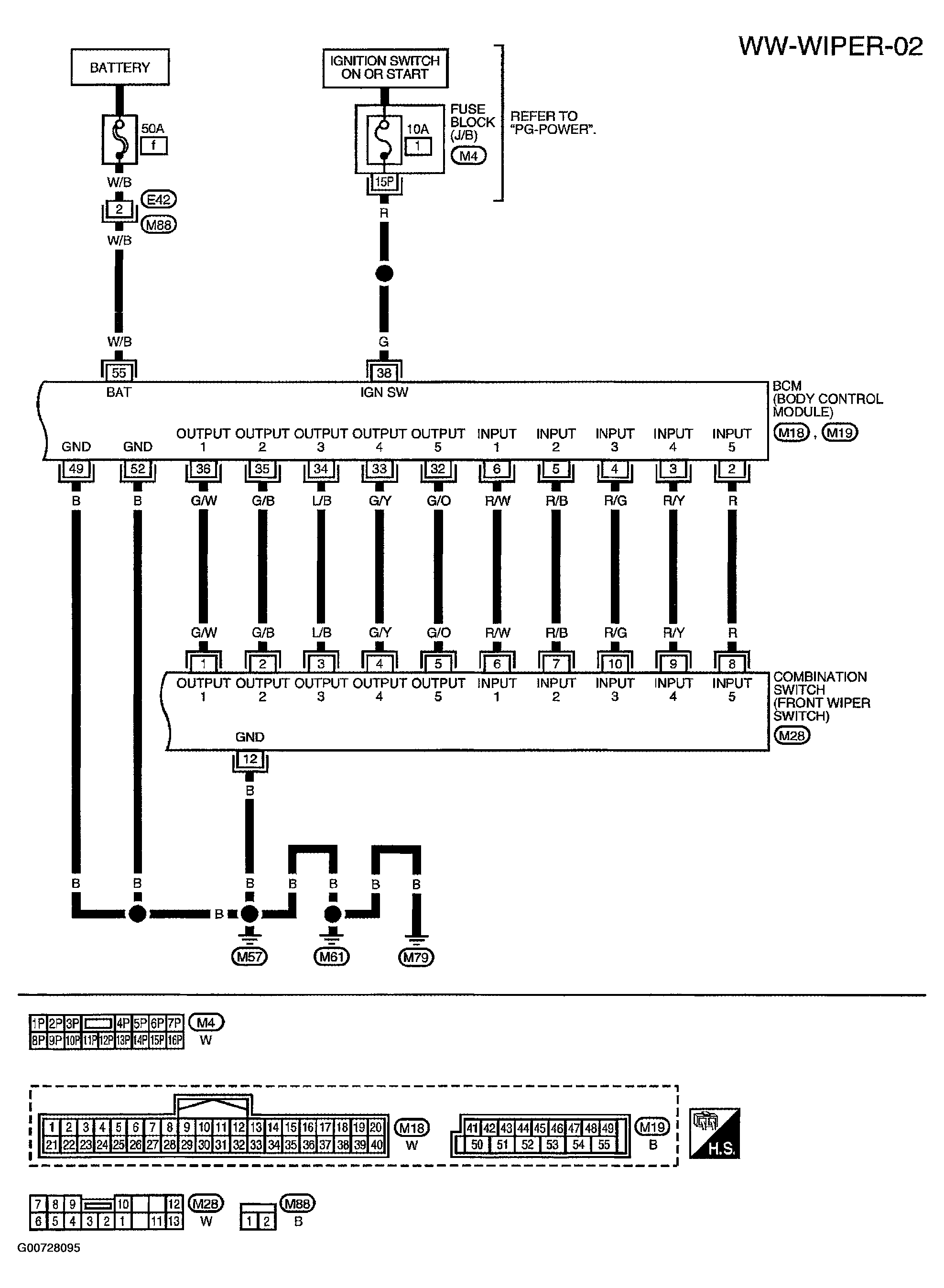

Fig 2: Identifying Wiring Diagram - WW-WIPER-02
G00728095Courtesy of NISSAN MOTOR CO., U.S.A.
