Inspection Procedure

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

COMBINATION SWITCH TO BCM INSPECTION
Select BCM on Consult-II. With "WIPER" data monitor, check that "FR WASHER SW" turns ON-OFF according to operation of front washer switch.

OK or NG

OK: Replace BCM.

NG: Replace wiper switch, refer to "REMOVAL AND INSTALLATION FOR WIPER AND WASHER SWITCH ".

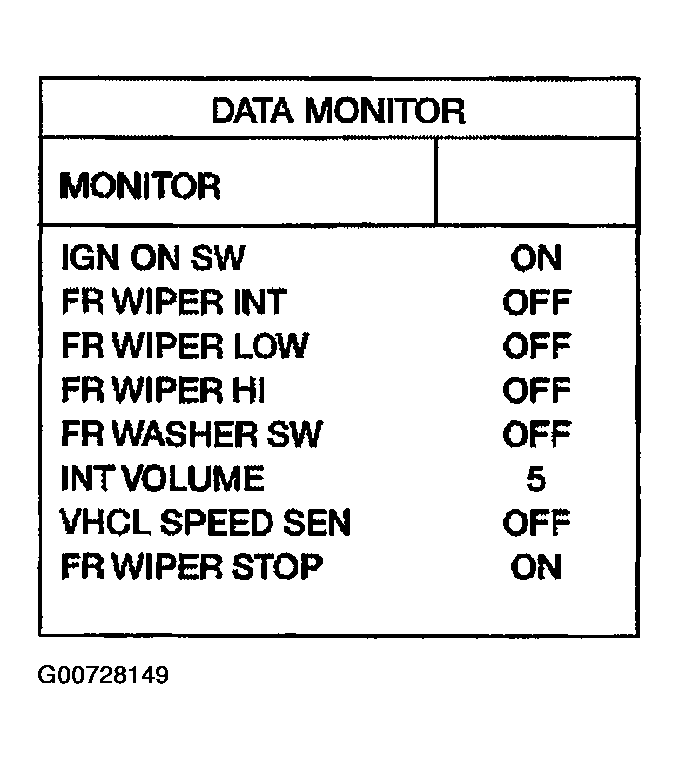

Fig 1: Display Data Monitor (4 Of 5)
Courtesy of NISSAN MOTOR CO., U.S.A.
