Inspection Procedure

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. COMBINATION SWITCH TO BCM INSPECTION

    Select BCM on Consult-II. With "WIPER" data monitor, check that "FR WIPER LOW" turns ON-OFF according to operation of wiper switch.

    OK or NG

    OK: Replace BCM.

    NG: Replace wiper switch, refer to "REMOVAL AND INSTALLATION FOR WIPER AND WASHER SWITCH ".

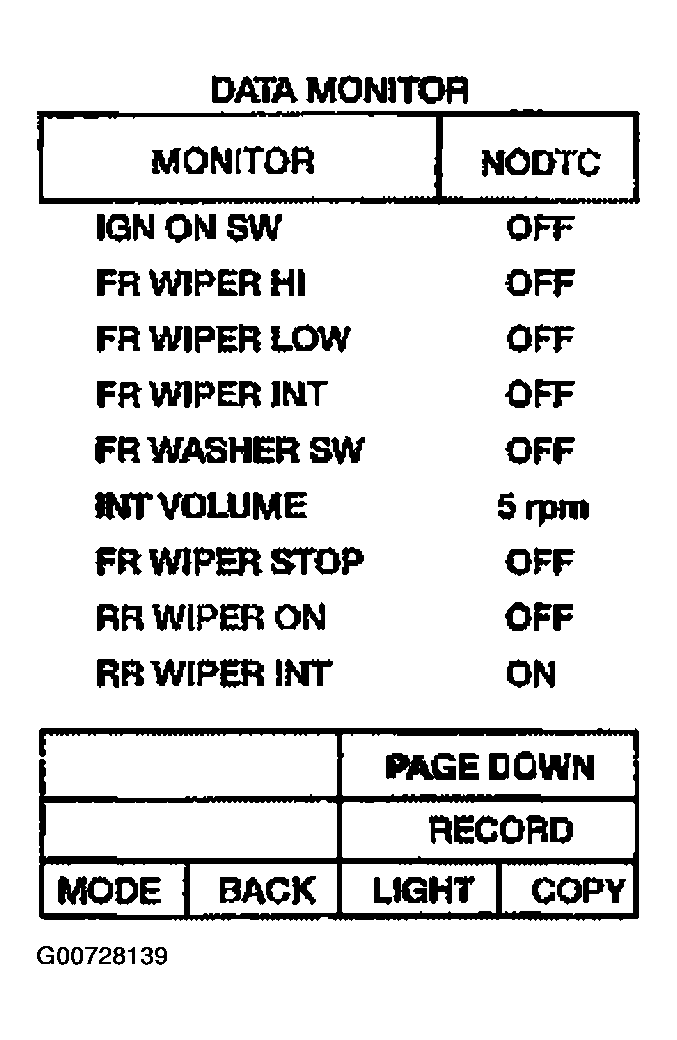

    Fig 1: Display Data Monitor
    G00728139Courtesy of NISSAN MOTOR CO., U.S.A.
