Inspection Procedure

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. COMBINATION SWITCH TO BCM INSPECTION

    Select BCM on Consult-II. With "WIPER" data monitor, check that "INT VOLUME" changes in order from 1 to 7 according to operation of the intermittent switch dial position.

    OK or NG

    OK: Replace BCM.

    NG: Replace wiper switch, refer to "REMOVAL AND INSTALLATION FOR WIPER AND WASHER SWITCH ".

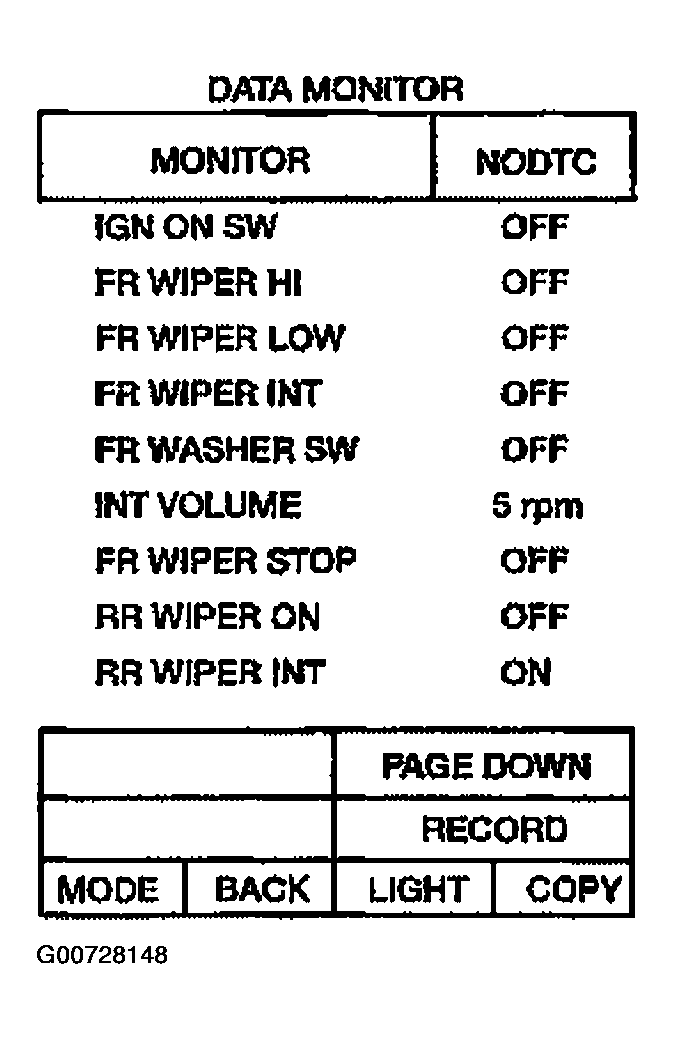

    Fig 1: Display Data Monitor (3 Of 5)
    G00728148Courtesy of NISSAN MOTOR CO., U.S.A.
