Removal and Installation for Wiper and Washer Switch: Removal

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove steering column cover.
  2. Remove wiper washer switch connector.
  3. Pinch tabs at wiper and washer switch base and slide switch away from steering column to remove.

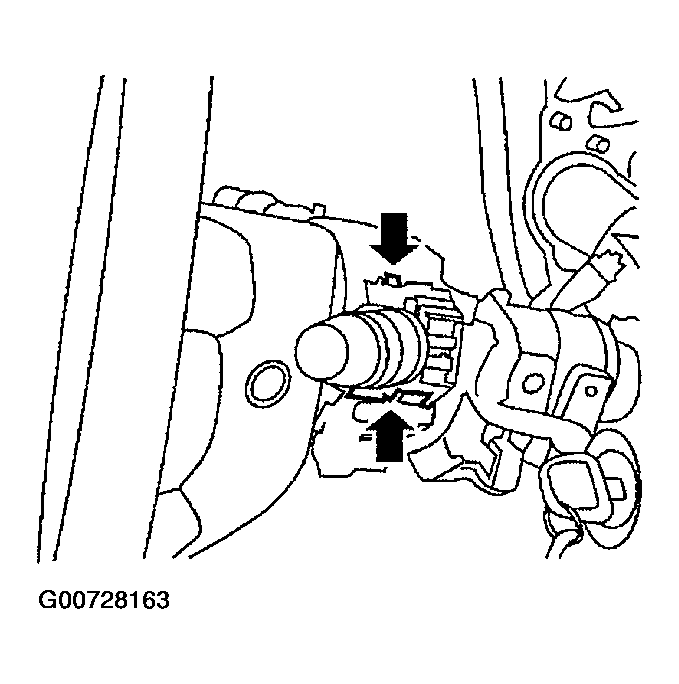

Fig 1: Removing Wiper Washer Switch Connector
G00728163Courtesy of NISSAN MOTOR CO., U.S.A.
