Removal and Installation for Washer Motor

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove fender protector, refer to REMOVAL AND INSTALLATION .
  2. Remove front washer motor connector and hose.
  3. Pull out front washer motor in the direction of the arrow as shown, and remove the washer pump from the washer tank.

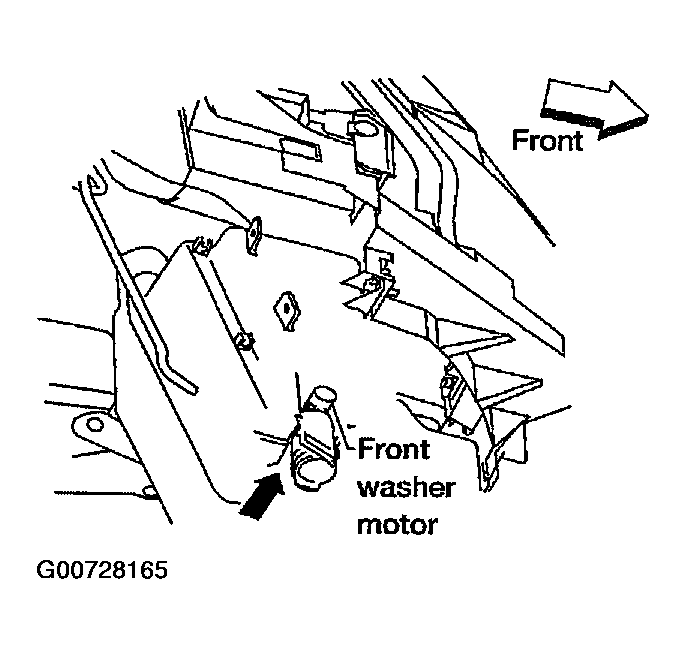

Fig 1: Identifying Front Washer Motor
G00728165Courtesy of NISSAN MOTOR CO., U.S.A.
CAUTION: When installing front washer motor, there should be no packing twists, etc.
