Wiring Diagram - CHIME -

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

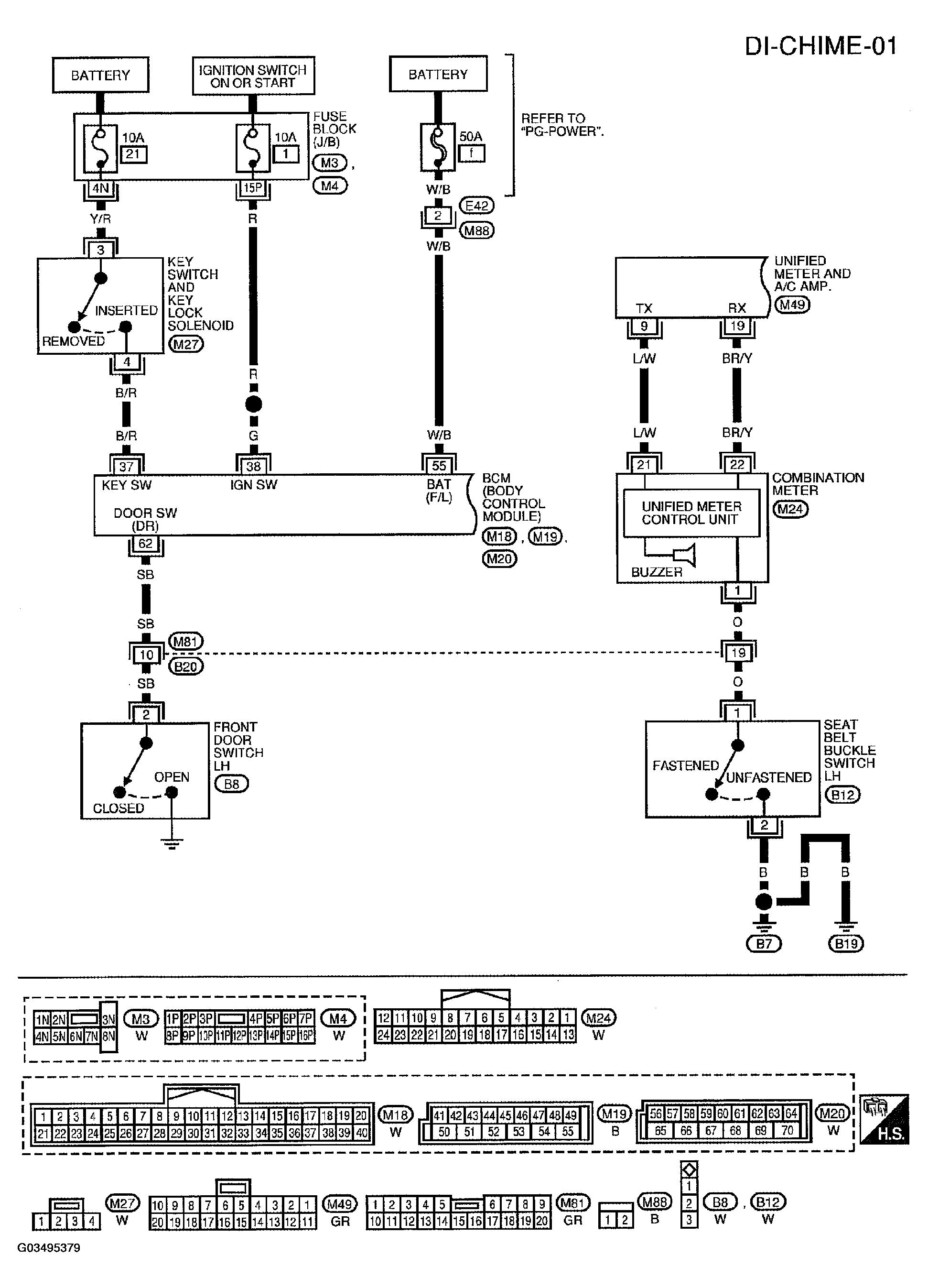

Fig 1: Wiring Diagram - Chime (1 Of 2) - DI-CHIME-01

Courtesy of NISSAN MOTOR CO., U.S.A.

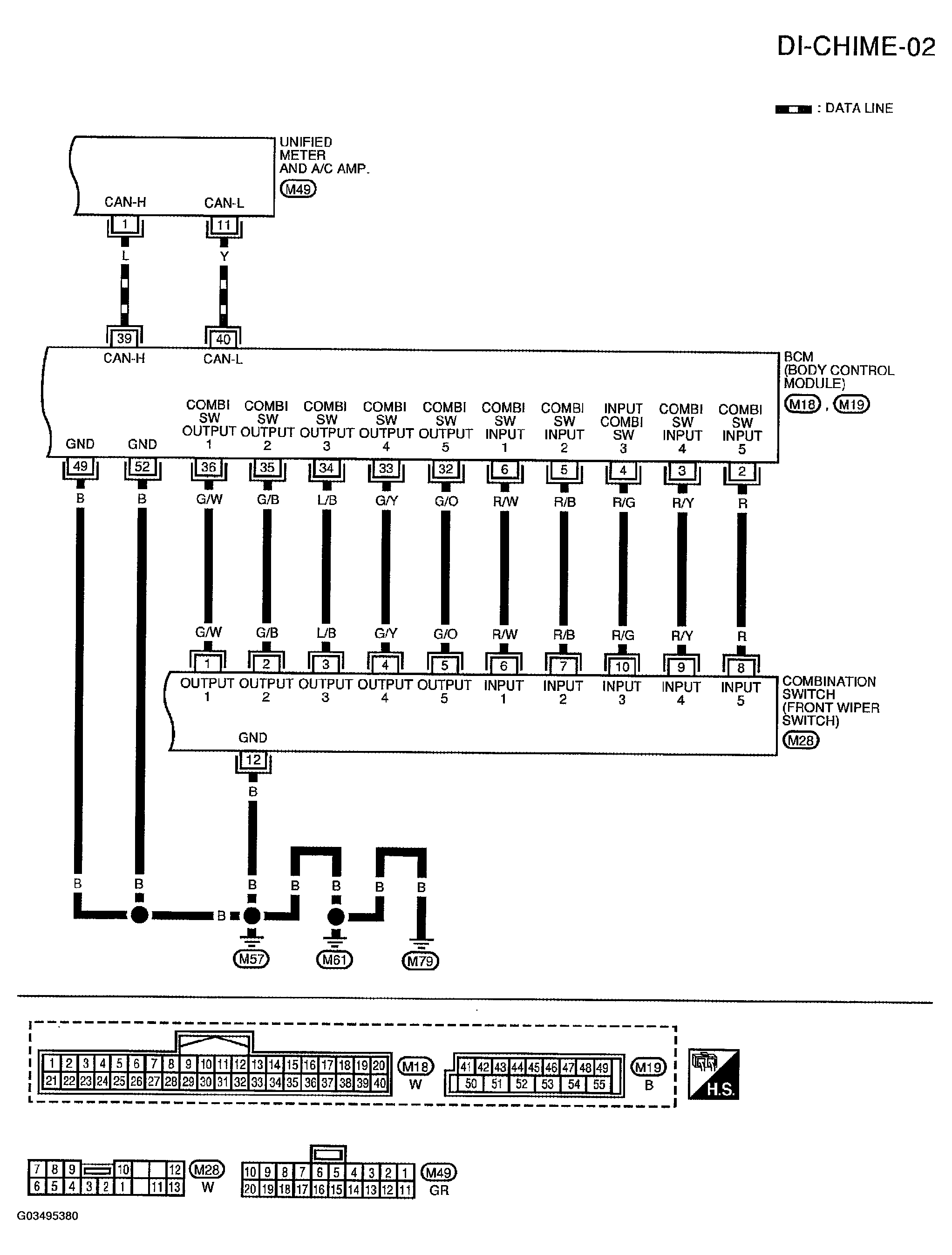

Fig 2: Wiring Diagram - Chime (2 Of 2) - DI-CHIME-02

Courtesy of NISSAN MOTOR CO., U.S.A.
