Terminals and Reference Value for Unified Meter and A/C Amp.
WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

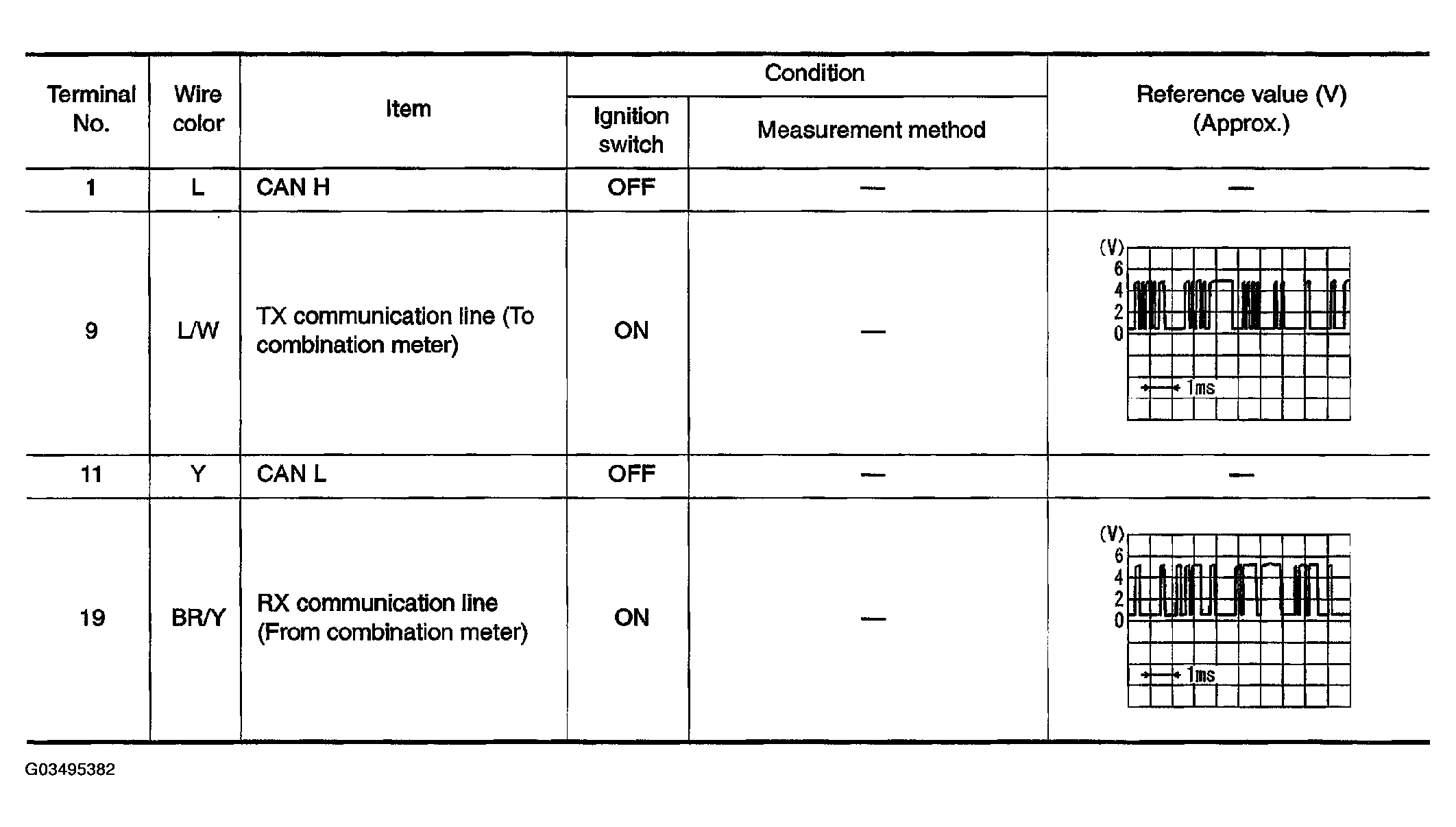

Fig 1: Unified Meter And A/C Amp Terminals & Reference Value Chart
