Key Warning Chime and Light Warning Chime Do Not Operate (Seat Belt Warning Chime Does Operate)

With CONSULT-II

1. Select "BCM" on CONSULT-II.
2. With "DATA MONITOR" of "BUZZER", confirm "DOOR SW-DR" changes with the status of front door LH.

When front door LH is opened: DOOR SW-DR ON

When front door LH is closed: DOOR SW-DR OFF

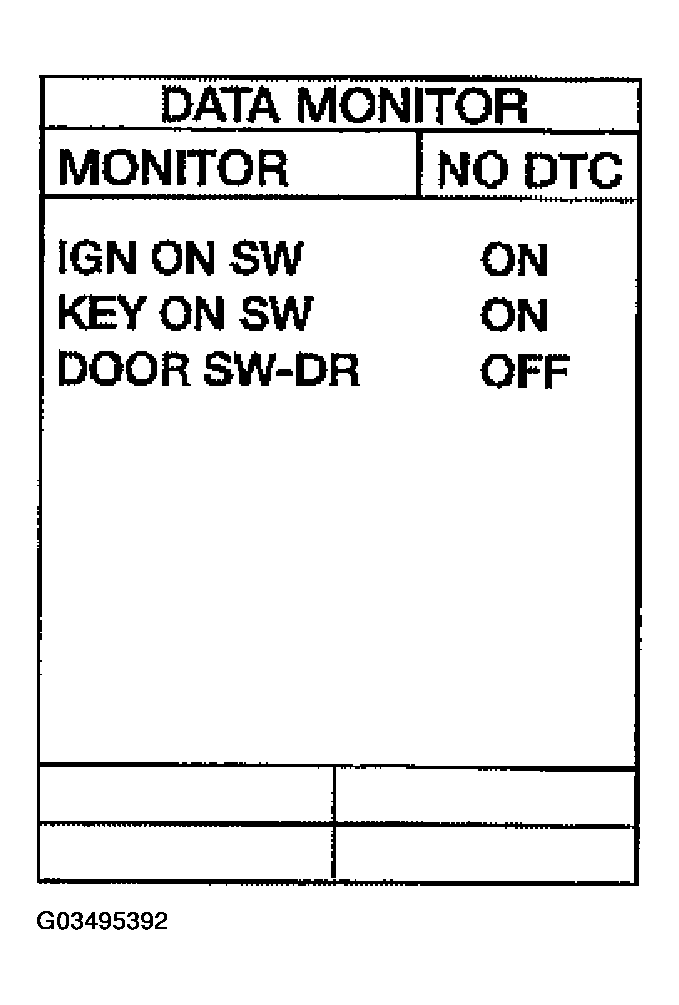

Fig 1: Data Monitor Display

Courtesy of NISSAN MOTOR CO., U.S.A.

Without CONSULT-II

Check continuity between BCM harness connector M20 terminal 62 (SB) and ground.

When front door LH is opened: Continuity should exist

When front door LH is closed: Continuity should not exist

OK or NG

1. OK: Replace the BCM. Refer to REMOVAL AND INSTALLATION OF BCM .
2. NG: GO TO 2.

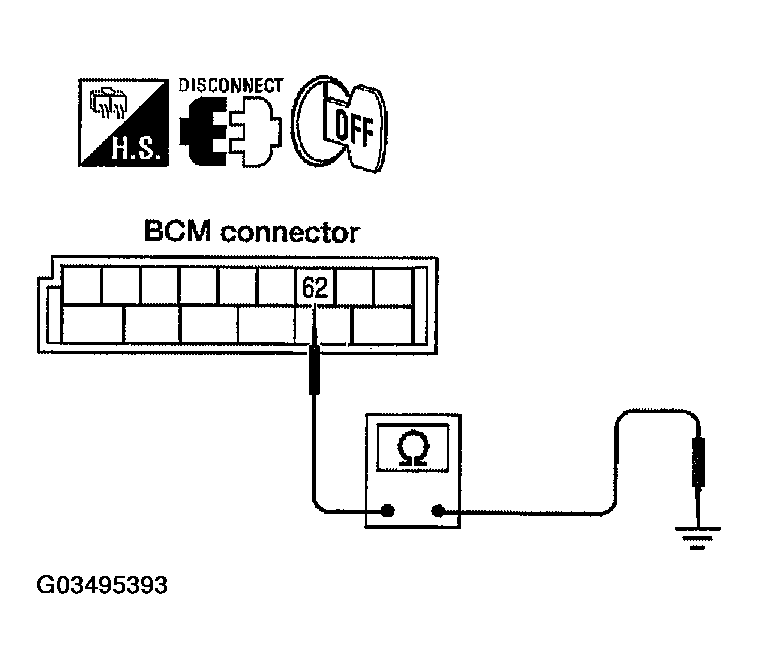

Fig 2: Checking Continuity Between BCM Harness Connector M20 Terminal And Ground

Courtesy of NISSAN MOTOR CO., U.S.A.

1. Turn ignition switch OFF.
2. Disconnect BCM connector and front door switch LH connector.
3. Check continuity between BCM harness connector M20 terminal 62 (SB) and front door switch LH harness connector B8 terminal 2 (SB).

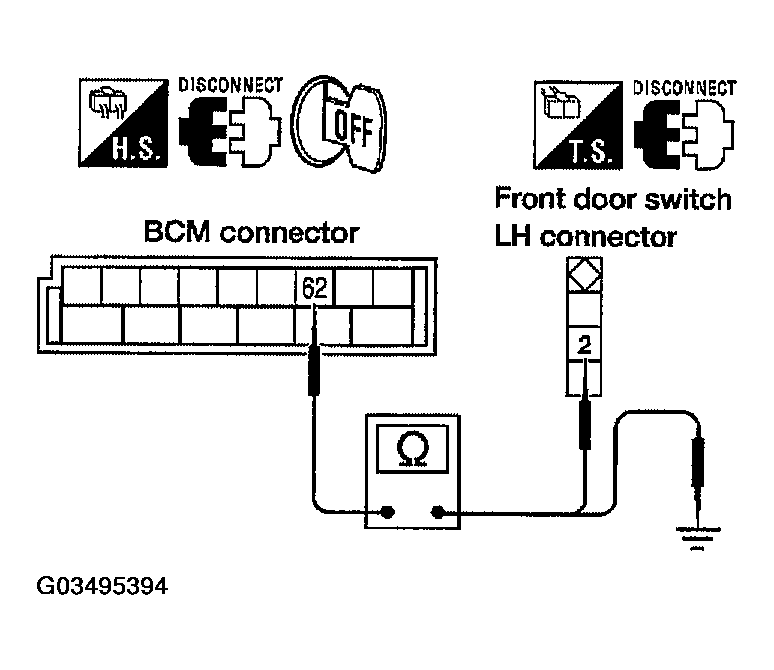

   Fig 3: Checking Front Door Switch LH Circuit

   Courtesy of NISSAN MOTOR CO., U.S.A.

   Continuity should exist.

4. Check continuity between BCM harness connector M20 terminal 62 (SB) and ground.

   Continuity should not exist.

   OK or NG

   1. OK: GO TO 3.
   2. NG: Repair harness or connector.

Check continuity between front door switch LH terminal 2 and ground while switching the door switch from ON (open) to OFF (closed).

When front door LH is opened: Continuity should exist

When front door LH is closed: Continuity should not exist

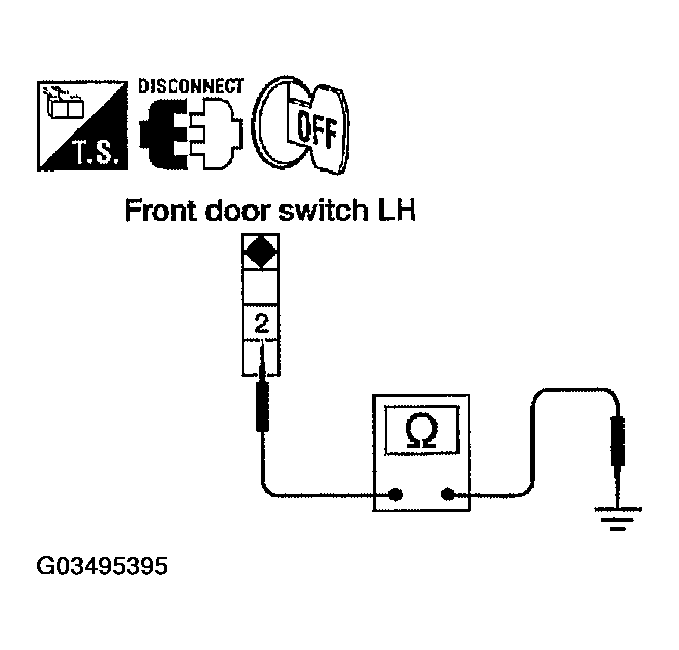

Fig 4: Checking Front Door Switch LH And Ground Circuit

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

1. OK: Replace the BCM. Refer to REMOVAL AND INSTALLATION OF BCM .
2. NG: Replace the front door switch LH.
