All Warning Chimes Do Not Operate

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

CHECK CHIME OPERATION
Select "BUZZER" on CONSULT-II, and perform "LIGHT WARN ALM", "IGN KEY WARN ALM", OR "SEAT BELT WARN" active test.

Does chime sound?
1. YES: Replace the BCM. Refer to REMOVAL AND INSTALLATION OF BCM .
2. NO: GO TO 2.

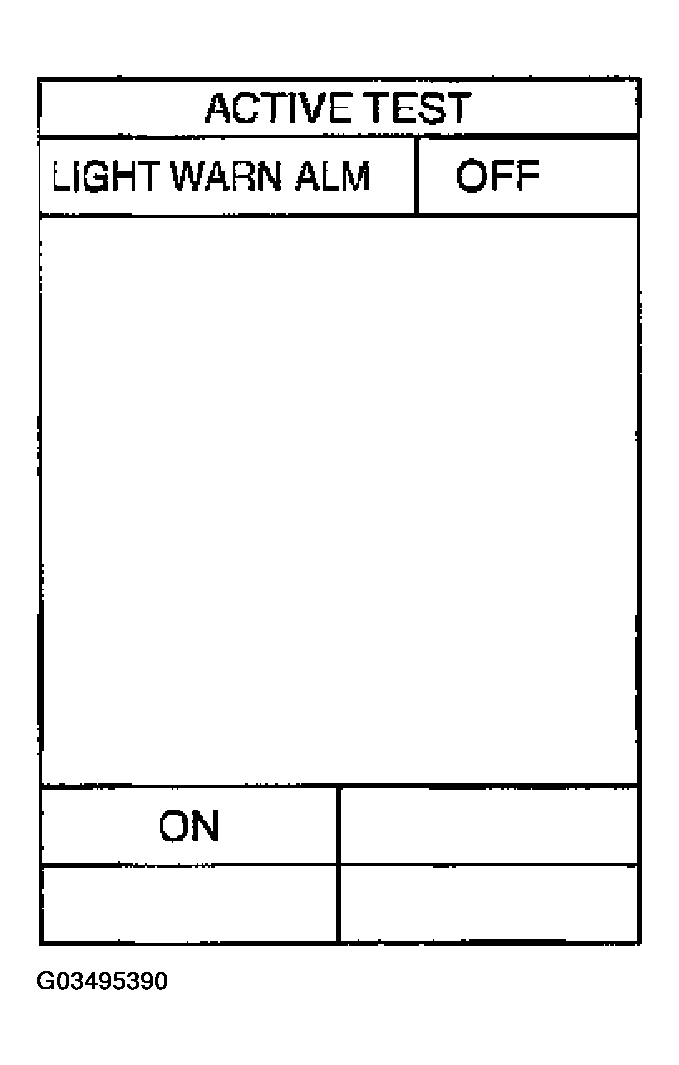

Fig 1: Display Active Test
Courtesy of NISSAN MOTOR CO., U.S.A.
CHECK UNIFIED METER AND A/C AMP. INPUT SIGNAL
Select "METER A/C AMP" on CONSULT-II. Operate switches meet the requirements to sounds warning chime with "BUZZER" of data monitor and check operation status.

When requirements are met to sound warning chime: BUZZER ON

Except above: BUZZER OFF

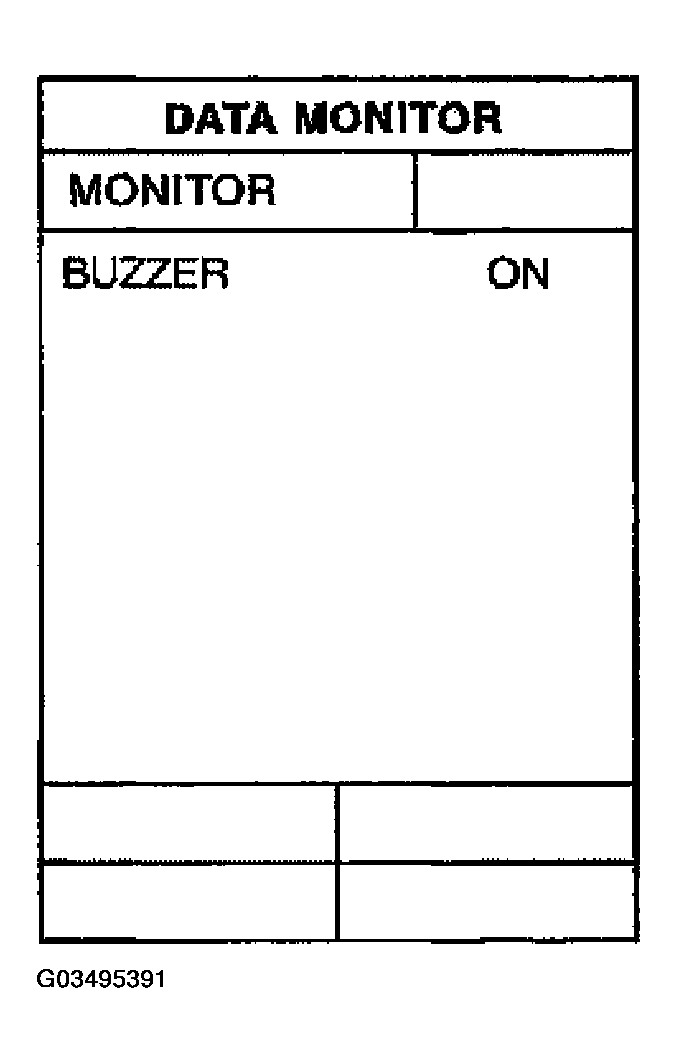

Fig 2: Data Monitor Display
Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG
1. OK: Replace the combination meter, refer to REMOVAL AND INSTALLATION OF COMBINATION METER .
2. NG: Replace the BCM. Refer to REMOVAL AND INSTALLATION OF BCM .
