A/T Indicator Does Not Illuminate

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK SELF-DIAGNOSIS OF COMBINATION METER

    Perform combination meter self-diagnosis. Refer to HOW TO ALTERNATE DIAGNOSIS MORE .

    OK or NG

    1. OK: GO TO 2.
    2. NG: Replace combination meter. Refer to REMOVAL AND INSTALLATION OF COMBINATION METER .

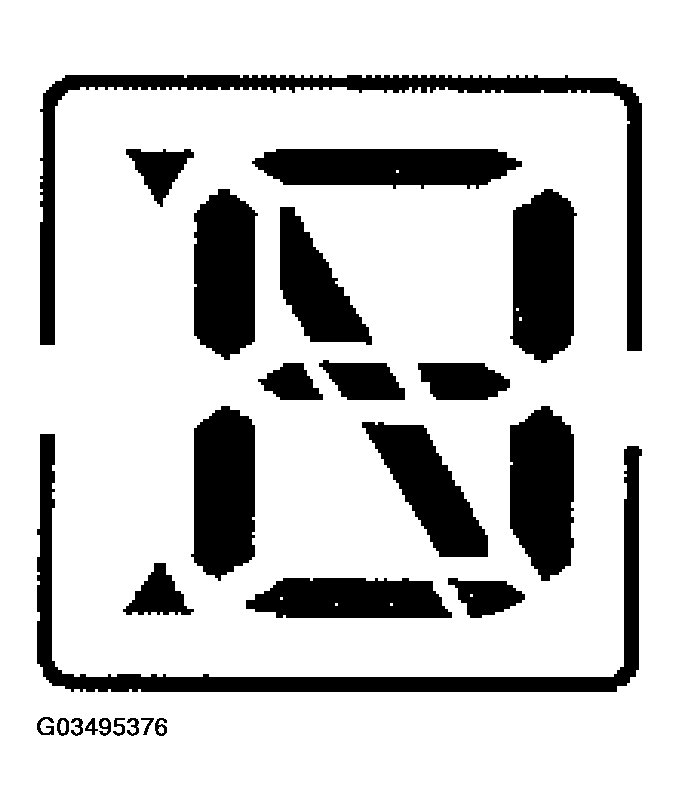

    Fig 1: Combination Meter Self-Diagnosis Display
    G03495376Courtesy of NISSAN MOTOR CO., U.S.A.
  2. CHECK SELF-DIAGNOSIS RESULTS OF UNIFIED METER AND A/C AMP.
    1. Start engine.
    2. Select "METER A/C AMP" on CONSULT-II, and perform self-diagnosis of unified meter and A/C amp. Refer to CONSULT-II FUNCTION .
    3. After erasing the self-diagnosis result, perform self-diagnosis again.

    Self-diagnosis results content

    No malfunction detected: GO TO 3.

    Malfunction detected: Go to SYMPTOM CHART 2 .

  3. CHECK UNIFIED METER AND A/C AMP. INPUT SIGNAL
    1. Lift drive wheels.
    2. Connect CONSULT-II and start engine.
    3. Select "DATA MONITOR" of "METER A/C AMP". Confirm each indication on the monitor when operating the shift lever.

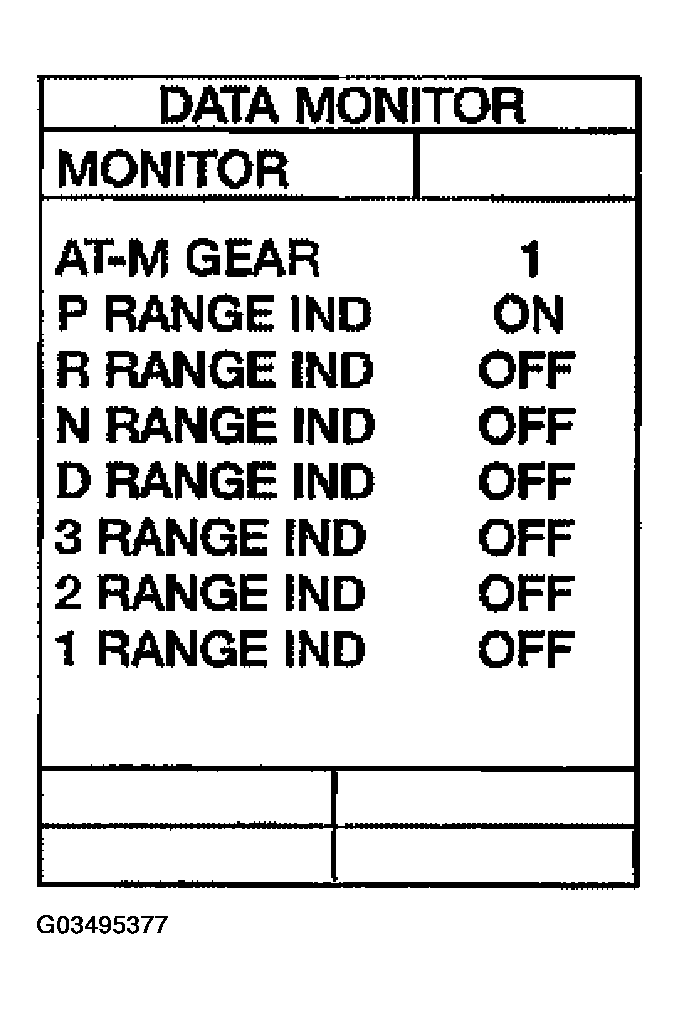

      Fig 2: Data Monitor Display
      G03495377Courtesy of NISSAN MOTOR CO., U.S.A.

    4 A/T Models

    SWITCH OPERATION (4 A/T MODELS)

    CONSULT-II display Switch operation Operation status
    P RANGE IND P range position ON
    Except for P range position OFF
    R RANGE IND R range position ON
    Except for R range position OFF
    N RANGE IND N range position ON
    Except for N range position OFF
    D RANGE IND D range position ON
    Except for D range position OFF
    3 RANGE IND 3 range position ON
    Except for 3 range position OFF
    2 RANGE IND 2 range position ON
    Except for 2 range position OFF
    1 RANGE IND 1 range position ON
    Except for 1 range position OFF

    5 A/T Models

    SWITCH OPERATION (5 A/T MODELS)

    CONSULT-II display Switch operation Operation status
    AT-M GEAR Manual mode range (shift up or down) 5-1
    Except for manual mode range 1
    P RANGE IND P range position ON
    Except for P range position OFF
    R RANGE IND R range position ON
    Except for R range position OFF
    N RANGE IND N range position ON
    Except for N range position OFF
    D RANGE IND D range position ON
    Except for D range position OFF
    3 RANGE IND 3 range position ON
    Except for 3 range position OFF
    2 RANGE IND 2 range position ON
    Except for 2 range position OFF
    1 RANGE IND 1 range position ON
    Except for 1 range position OFF

    OK or NG

    1. OK: Replace combination meter. Refer to REMOVAL AND INSTALLATION OF COMBINATION METER .
    2. NG: GO TO 4.
  4. CHECK TCM

    Perform self-diagnosis of TCM. For 4 A/T models, refer to SELF-DIAGNOSTIC PROCEDURE (WITH CONSULT-II) . For 5 A/T models, refer to CONSULT-II .

    OK or NG

    1. OK: Replace the unified meter and A/C amp. Refer to REMOVAL AND INSTALLATION OF UNIFIED METER AND .
    2. NG: Check the applicable parts.
