Wiring Diagram - WARN -

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

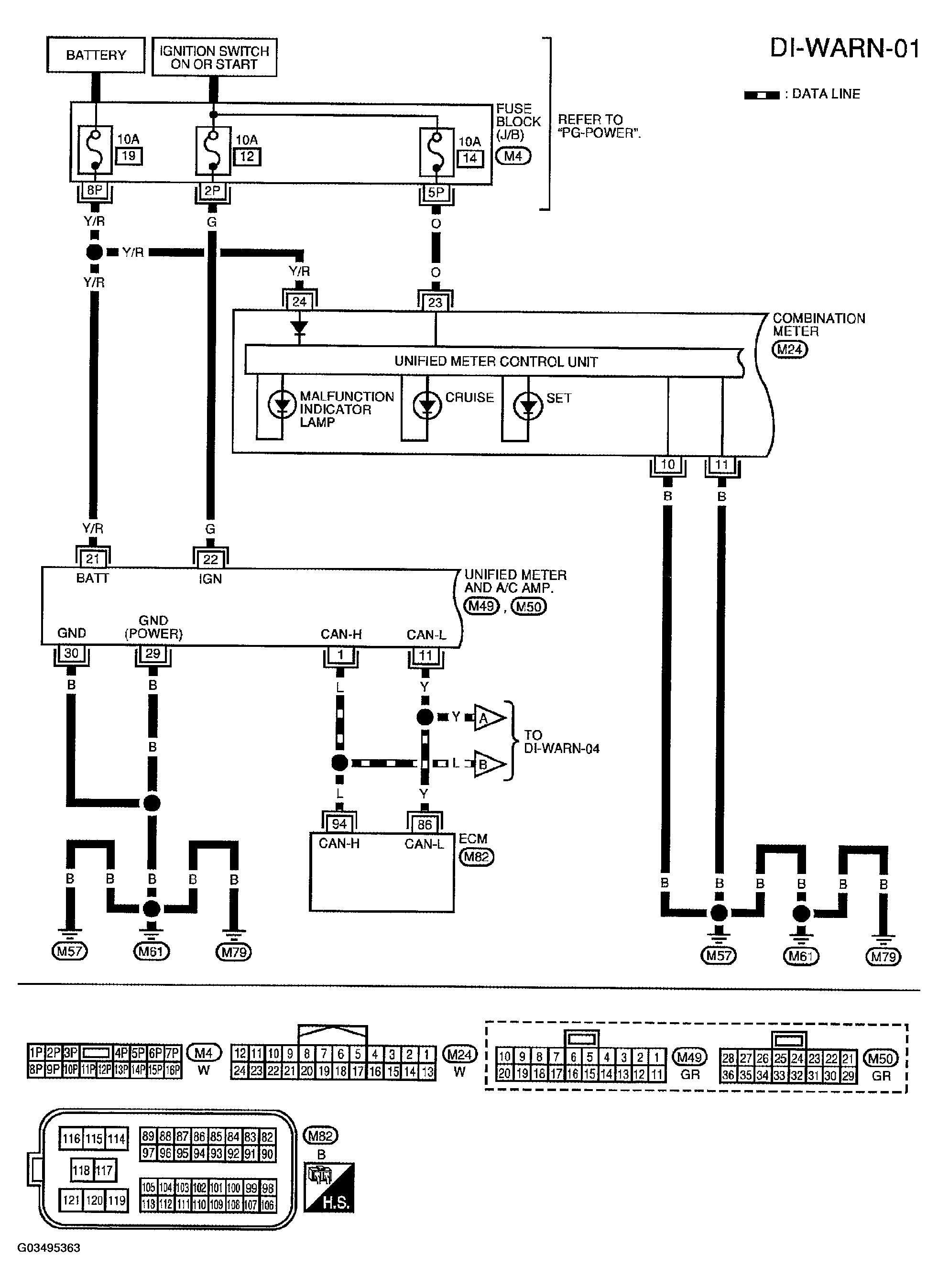

Fig 1: Wiring Diagram - Warning Lamps (1 Of 5) - DI-WARN-01

Courtesy of NISSAN MOTOR CO., U.S.A.

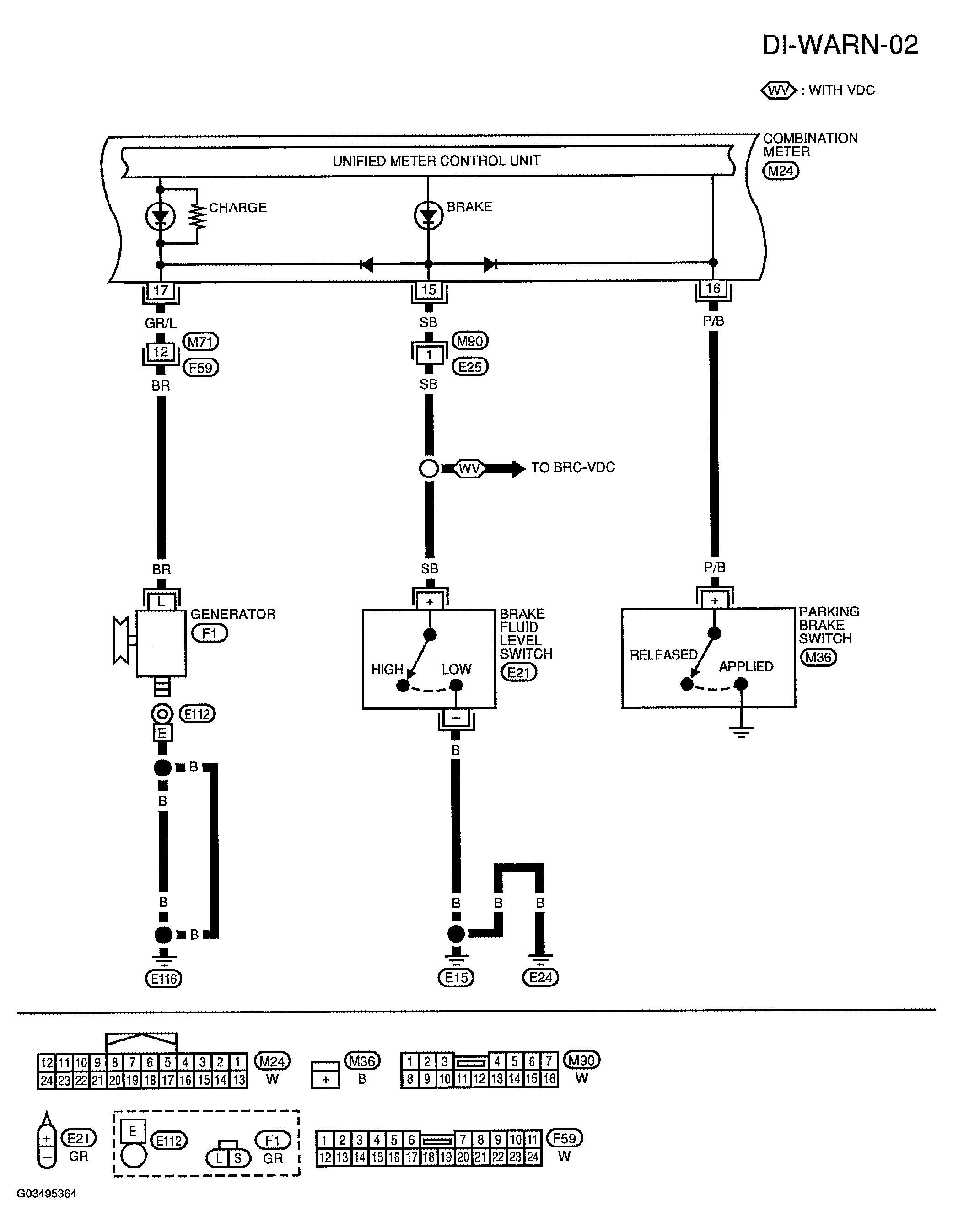

Fig 2: Wiring Diagram - Warning Lamps (2 Of 5) - DI-WARN-02

Courtesy of NISSAN MOTOR CO., U.S.A.

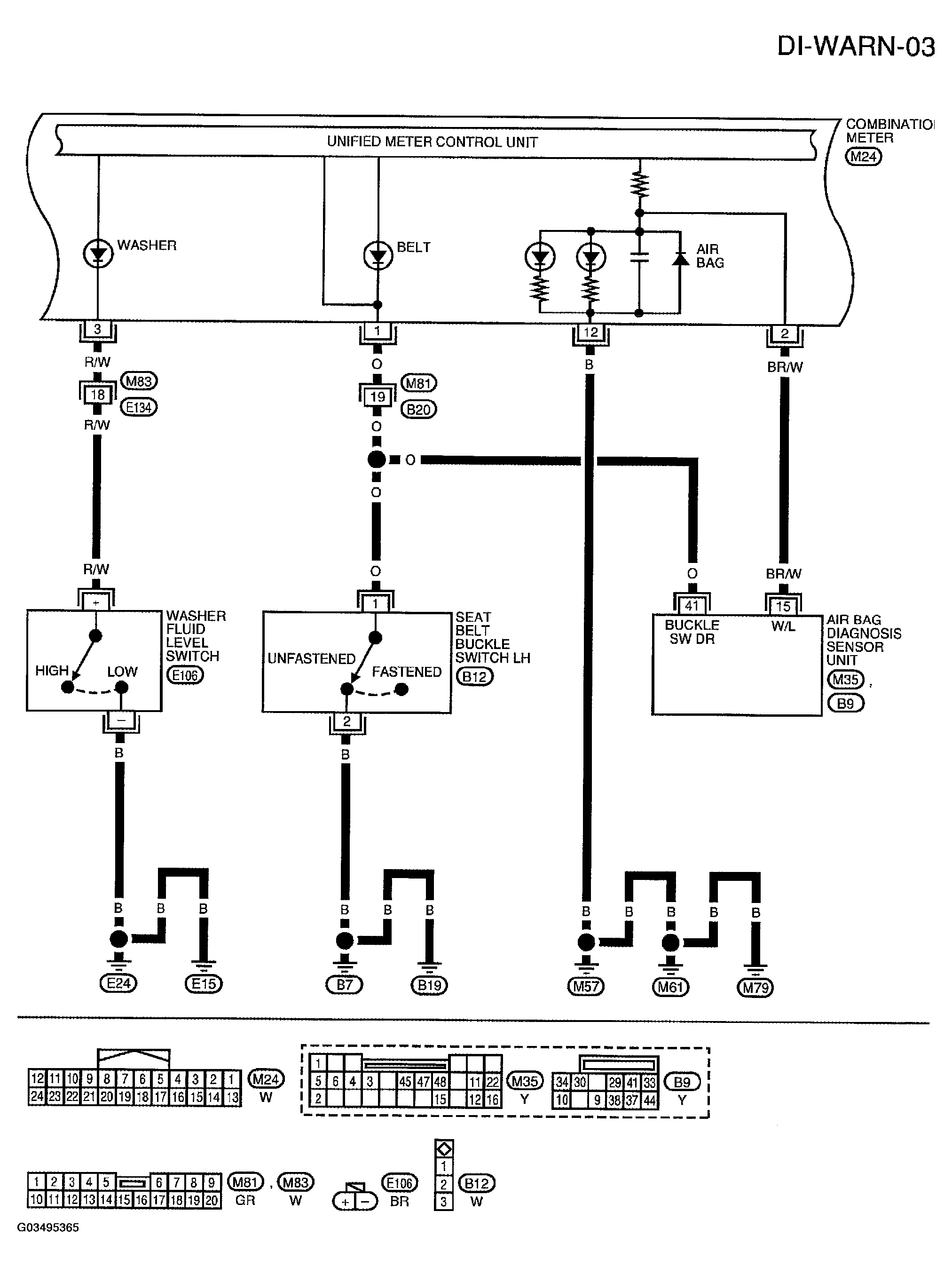

Fig 3: Wiring Diagram - Warning Lamps (3 Of 5) - DI-WARN-03

Courtesy of NISSAN MOTOR CO., U.S.A.

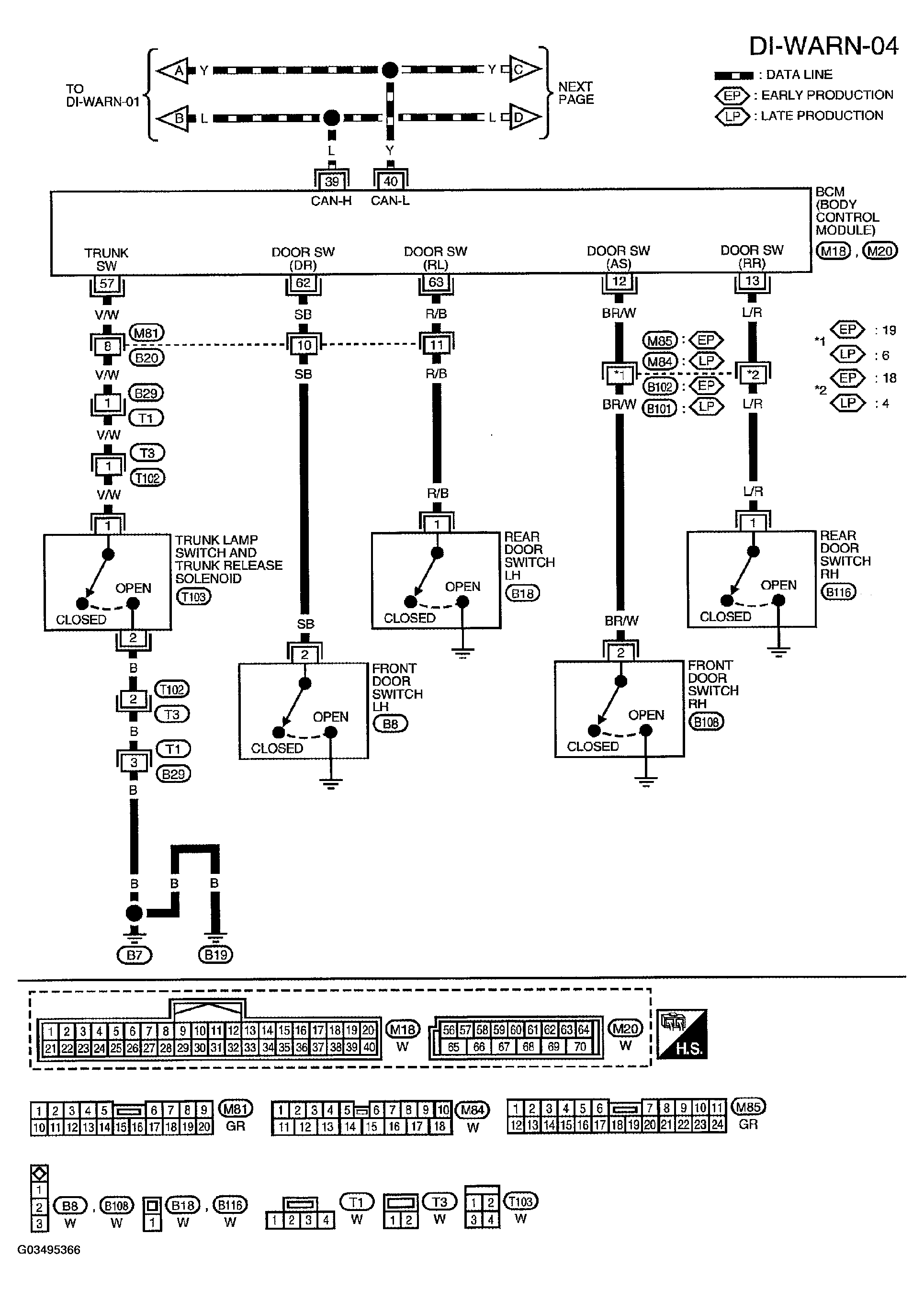

Fig 4: Wiring Diagram - Warning Lamps (4 Of 5) - DI-WARN-04

Courtesy of NISSAN MOTOR CO., U.S.A.

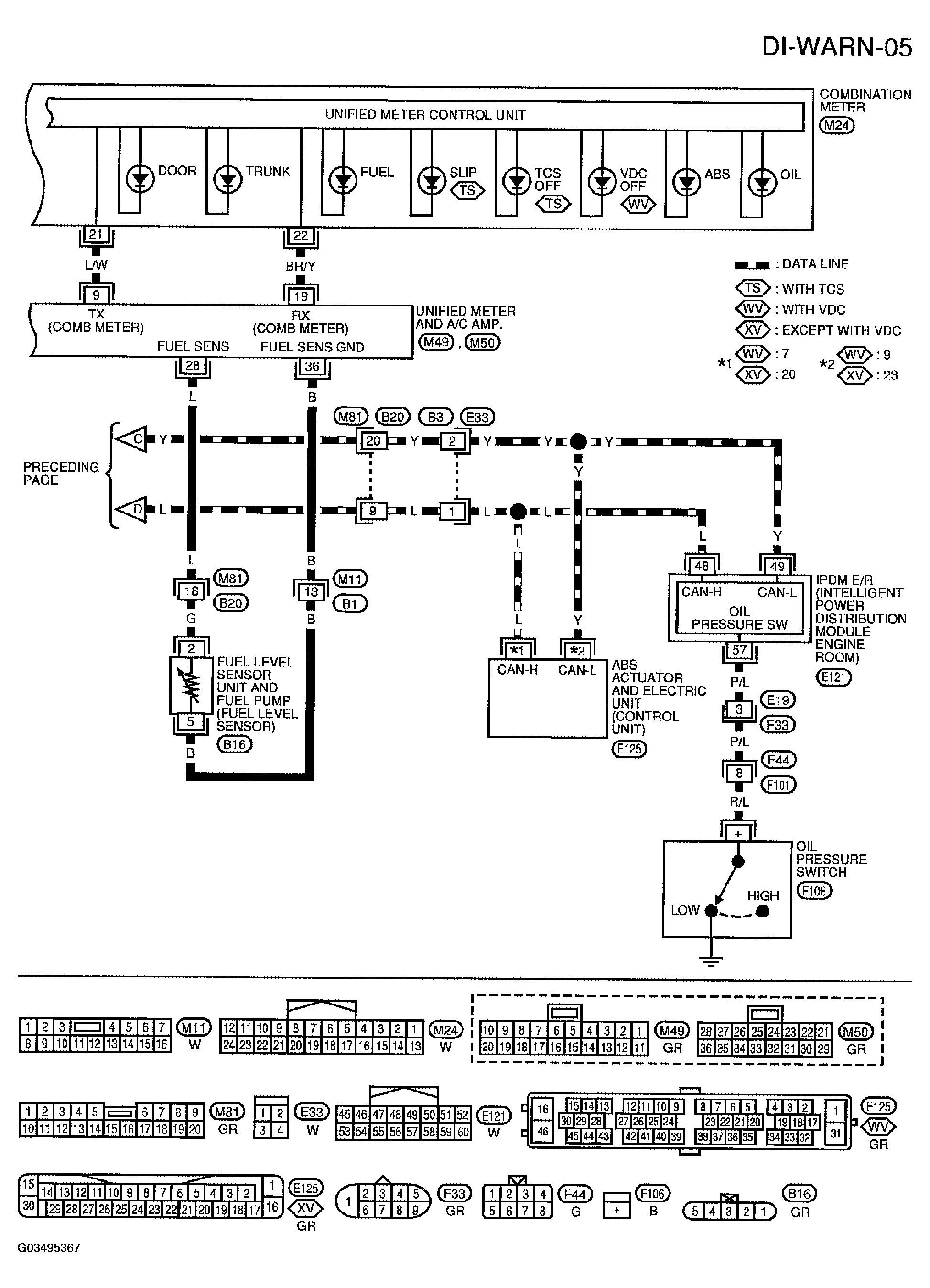

Fig 5: Wiring Diagram - Warning Lamps (5 Of 5) - DI-WARN-05

Courtesy of NISSAN MOTOR CO., U.S.A.
