Removal and Installation of Unified Meter and A/C Amp.: Removal

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove center stack assembly, refer to CENTER STACK ASSEMBLY , "Center Stack Assembly".
  2. Remove unified meter and A/C amp. screws, and remove unified meter and A/C amp. from brackets.
    CAUTION:
    • When carrying audio unit body, do not touch internal mechanism access from cassette tape slot.
    • Be careful not to allow foreign material to enter from cassette tape slot.
    • Use appropriate screws for each, as screws for audio unit are different from that for unified meter and A/C amp.

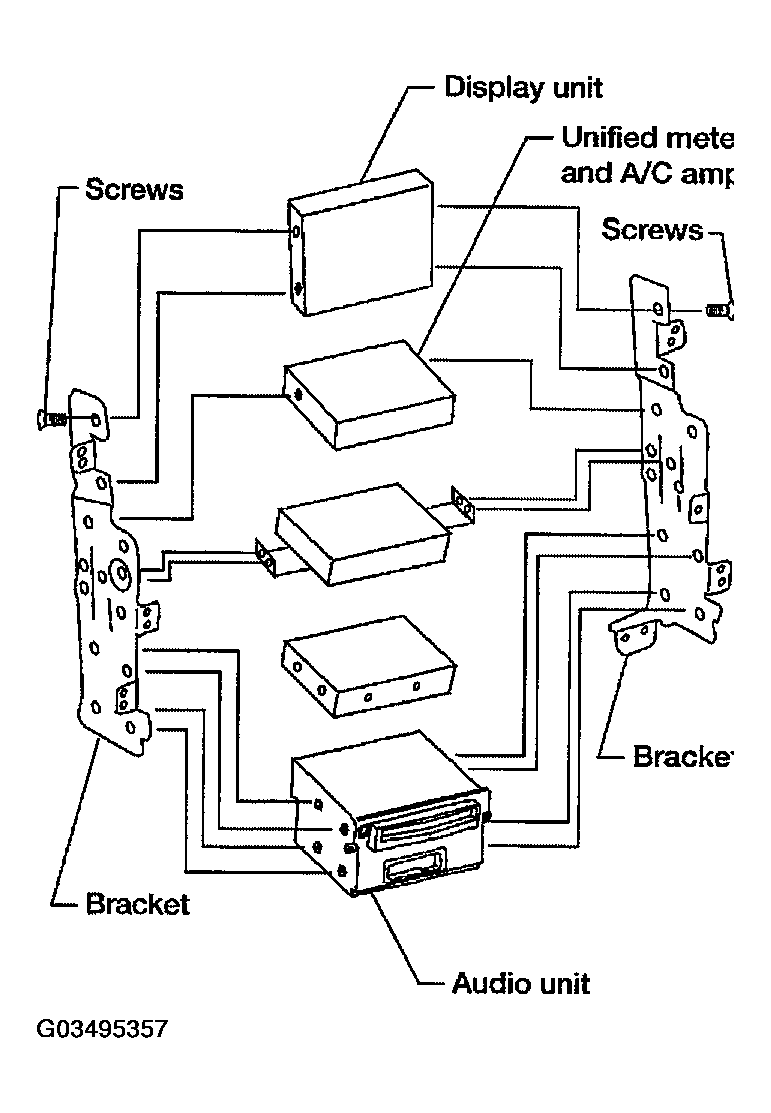

    Fig 1: Removing/Installing Unified Meter & A/C Amp
    G03495357Courtesy of NISSAN MOTOR CO., U.S.A.
