Consult-II Basic Operation

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carries out CAN communication.
  1. With the ignition switch OFF, connect "CONSULT-II" and "CONSULT-II CONVERTER" to the data link connector, then turn ignition switch ON.

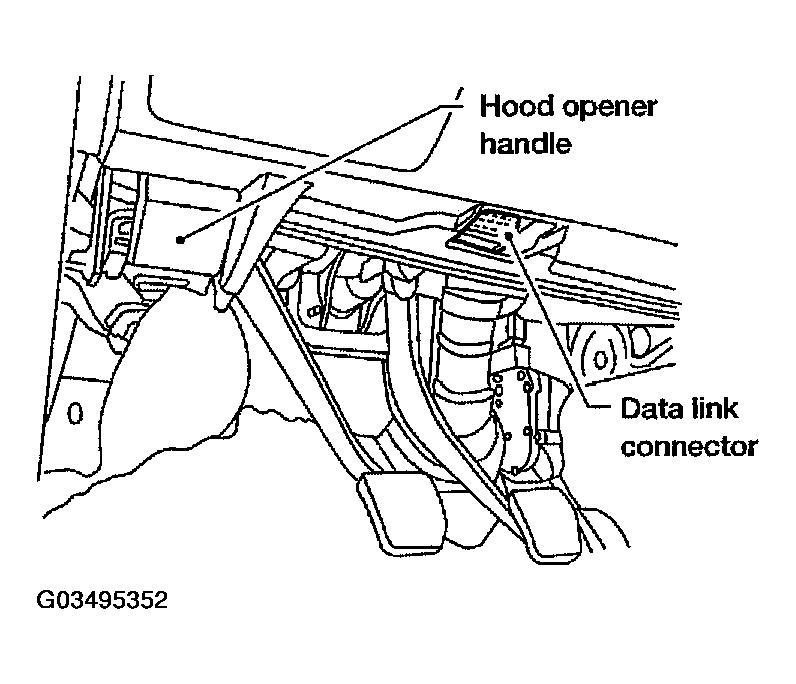

    Fig 1: Identifying Data Link Connector
    G03495352Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Touch "START (NISSAN BASED VHCL)".

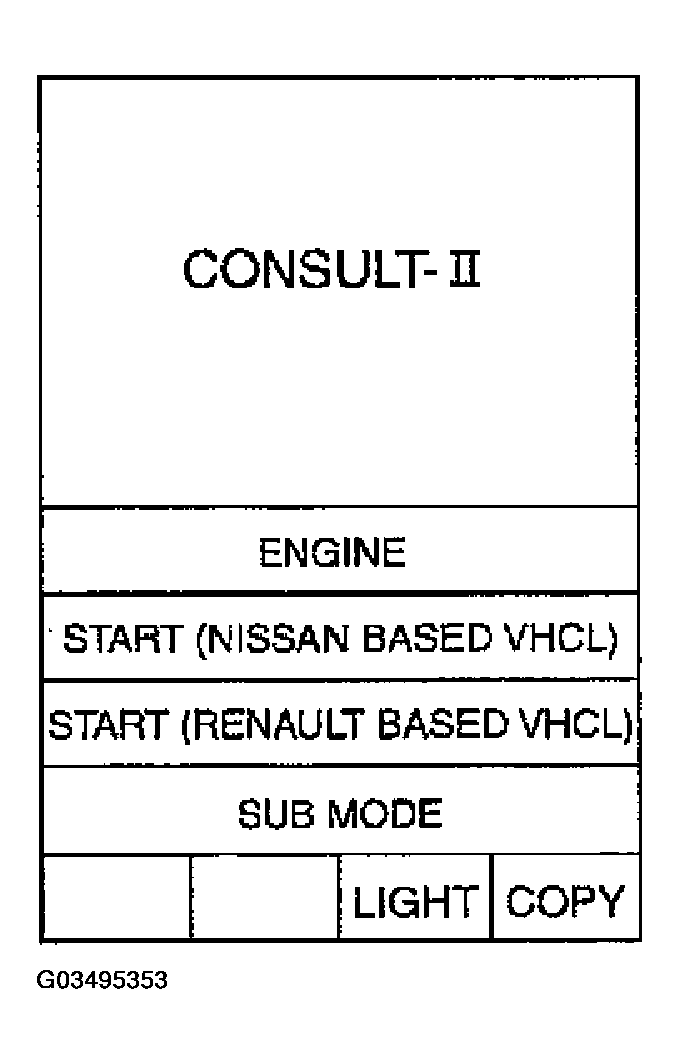

    Fig 2: Identifying Scan Tool Display With CONSULT-II (1 Of 2)
    G03495353Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Touch "METER A/C AMP" on "SELECT SYSTEM" screen. If "METER A/C AMP" is not indicated, go to CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT .
  4. Select "SELF-DIAG RESULTS" or "DATA MONITOR".

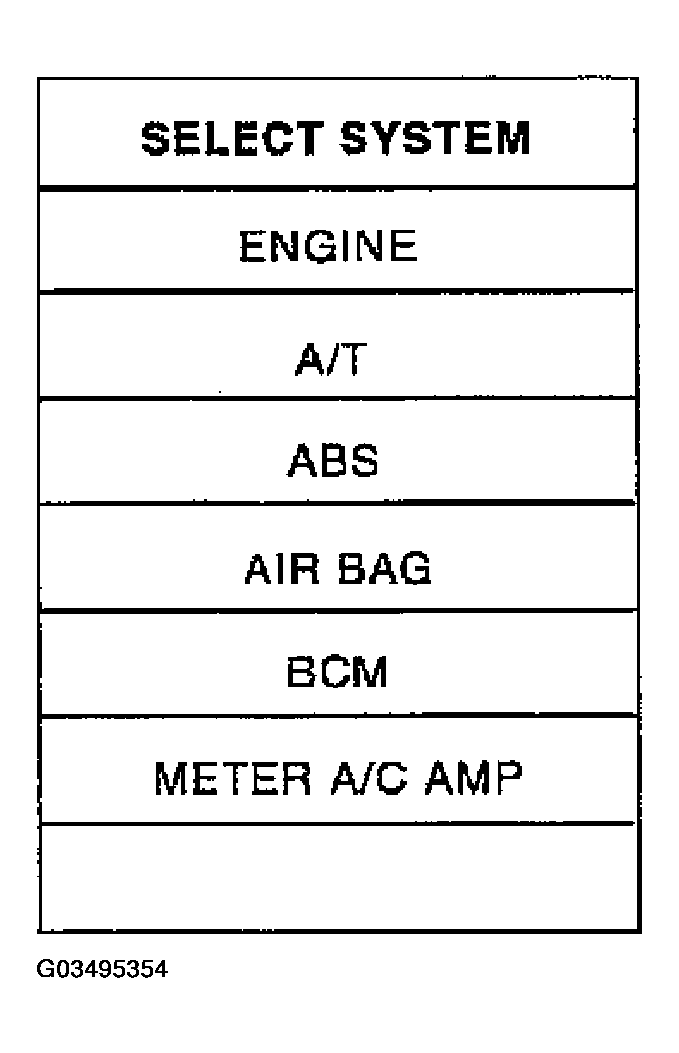

    Fig 3: Identifying Scan Tool Display With CONSULT-II (2 Of 2)
    G03495354Courtesy of NISSAN MOTOR CO., U.S.A.
