With Front And Rear Power Window Anti-Pinch System

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

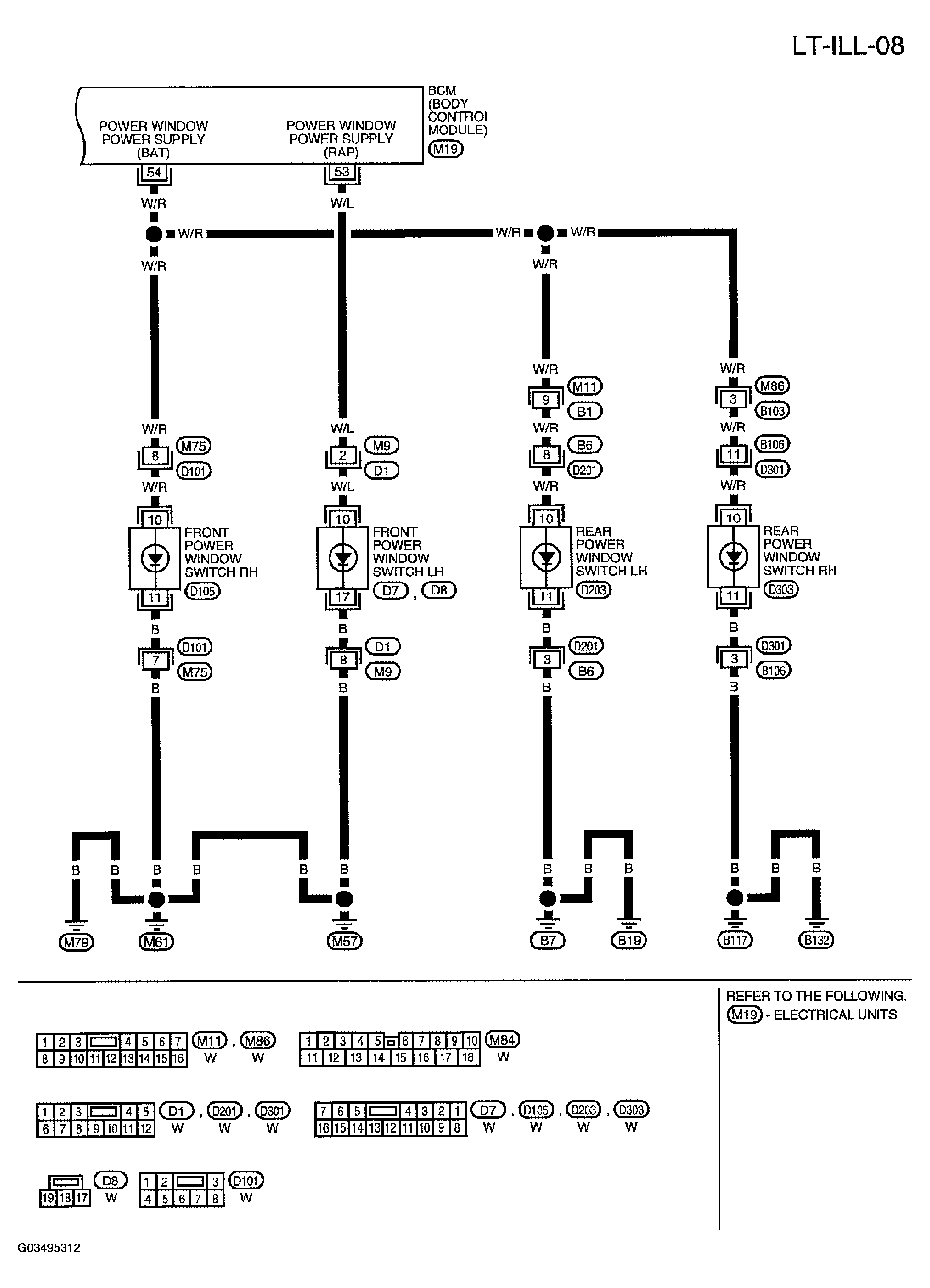

Fig 1: Illumination Wiring Diagram And Connector (8 Of 8) - LT-ILL-08
G03495312Courtesy of NISSAN MOTOR CO., U.S.A.
