WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

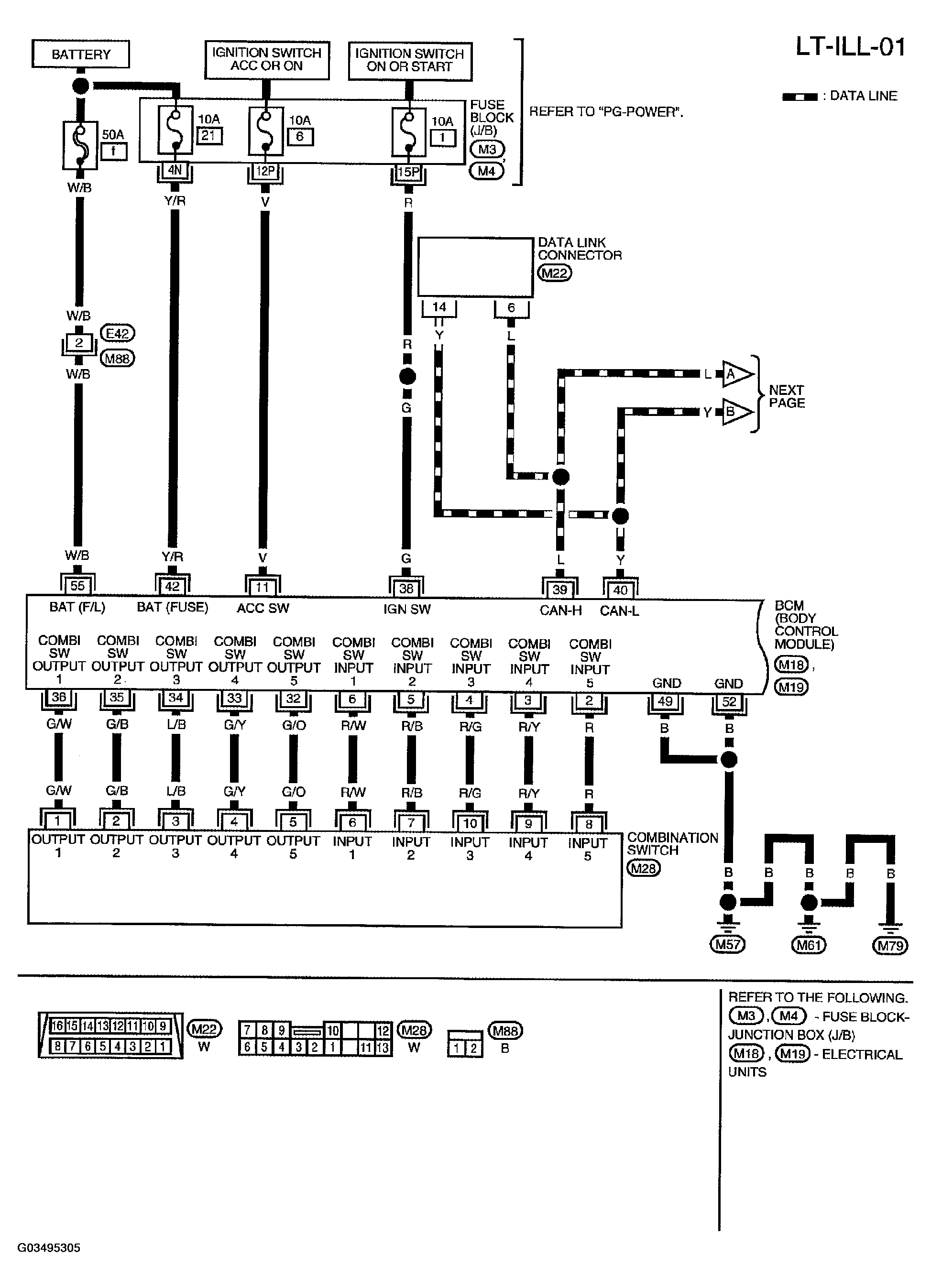

Fig 1: Illumination Wiring Diagram And Connector (1 Of 8) - LT-ILL-01
Courtesy of NISSAN MOTOR CO., U.S.A.

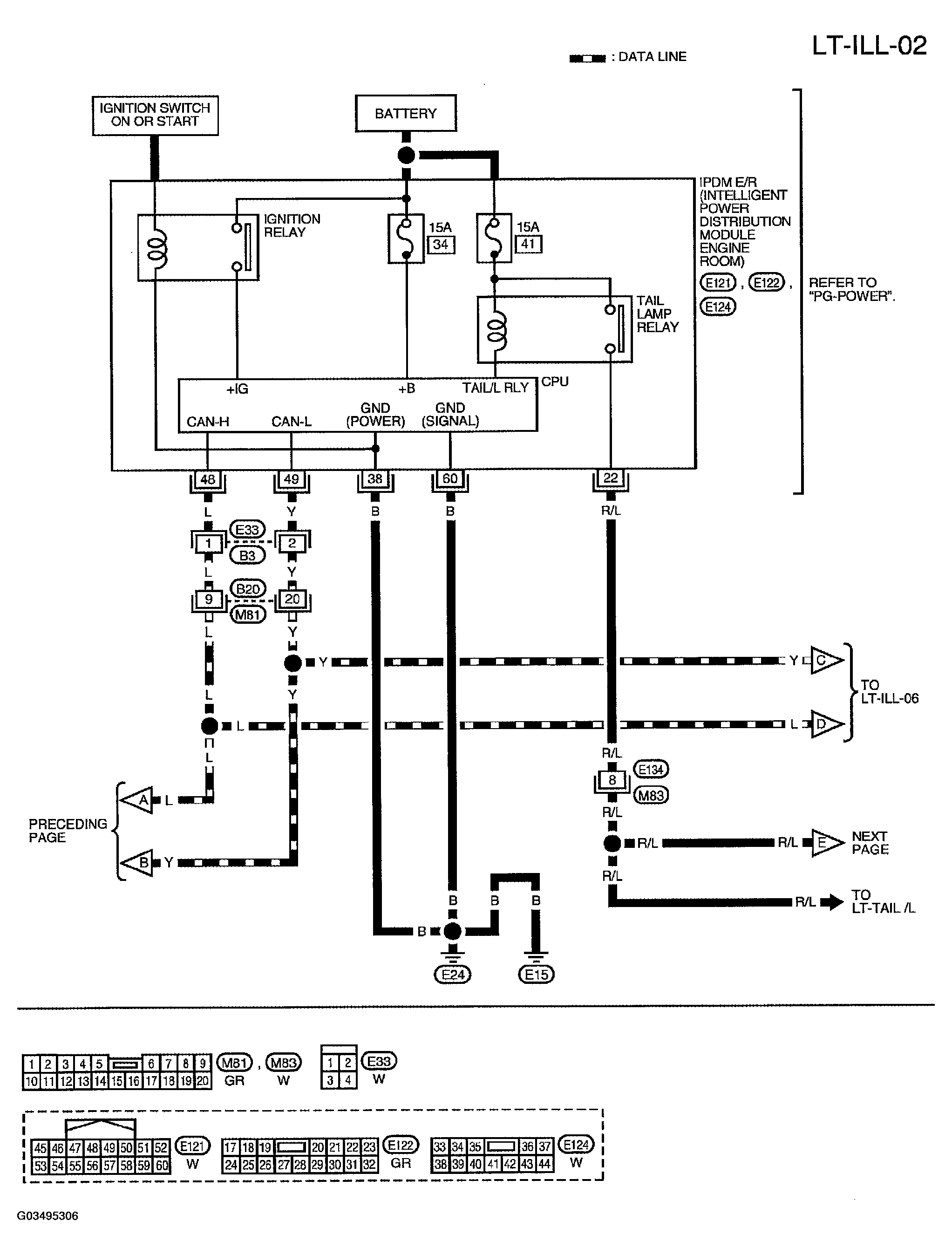

Fig 2: Illumination Wiring Diagram And Connector (2 Of 8) - LT-ILL-02
Courtesy of NISSAN MOTOR CO., U.S.A.

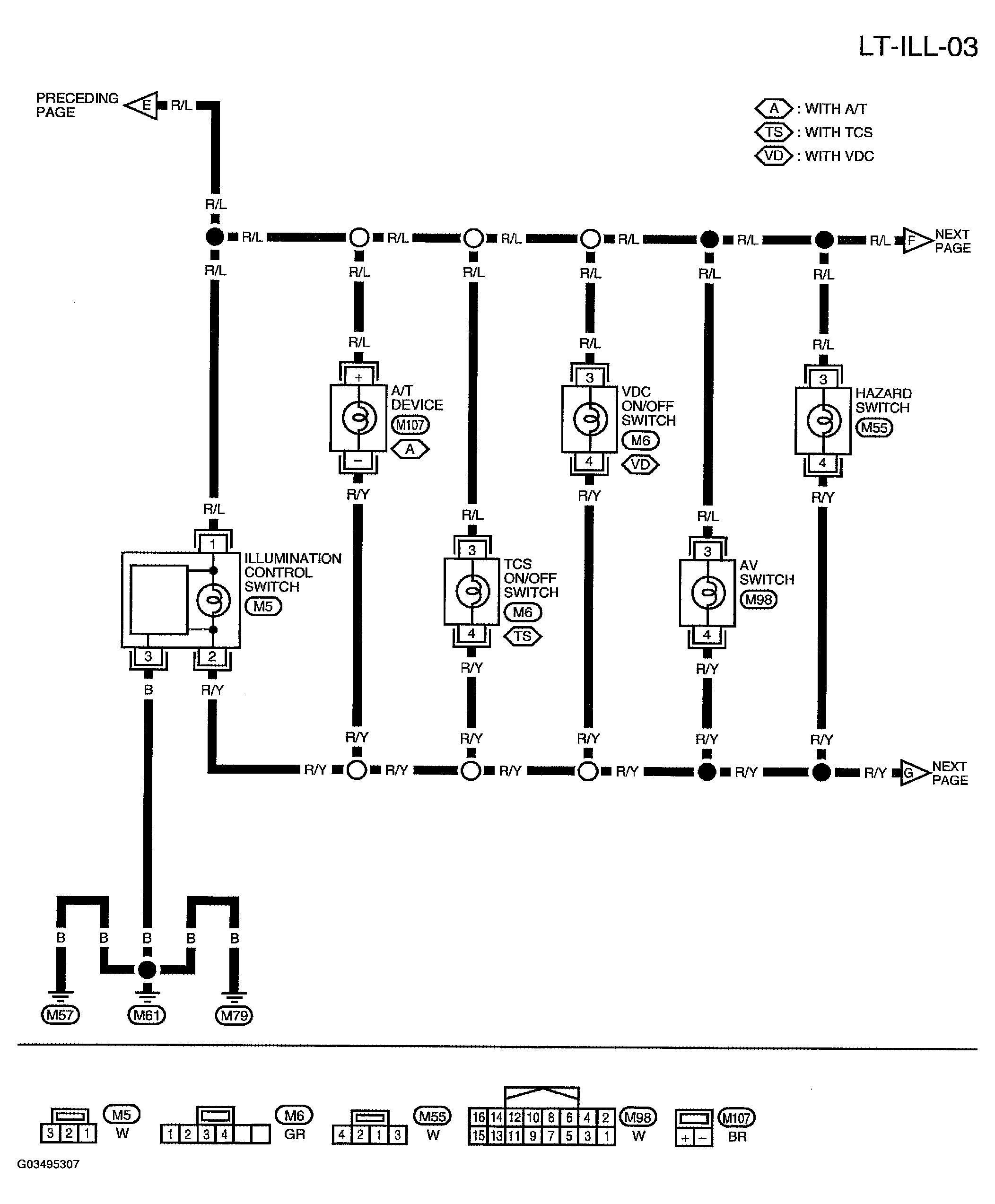

Fig 3: Illumination Wiring Diagram And Connector (3 Of 8) - LT-ILL-03
Courtesy of NISSAN MOTOR CO., U.S.A.

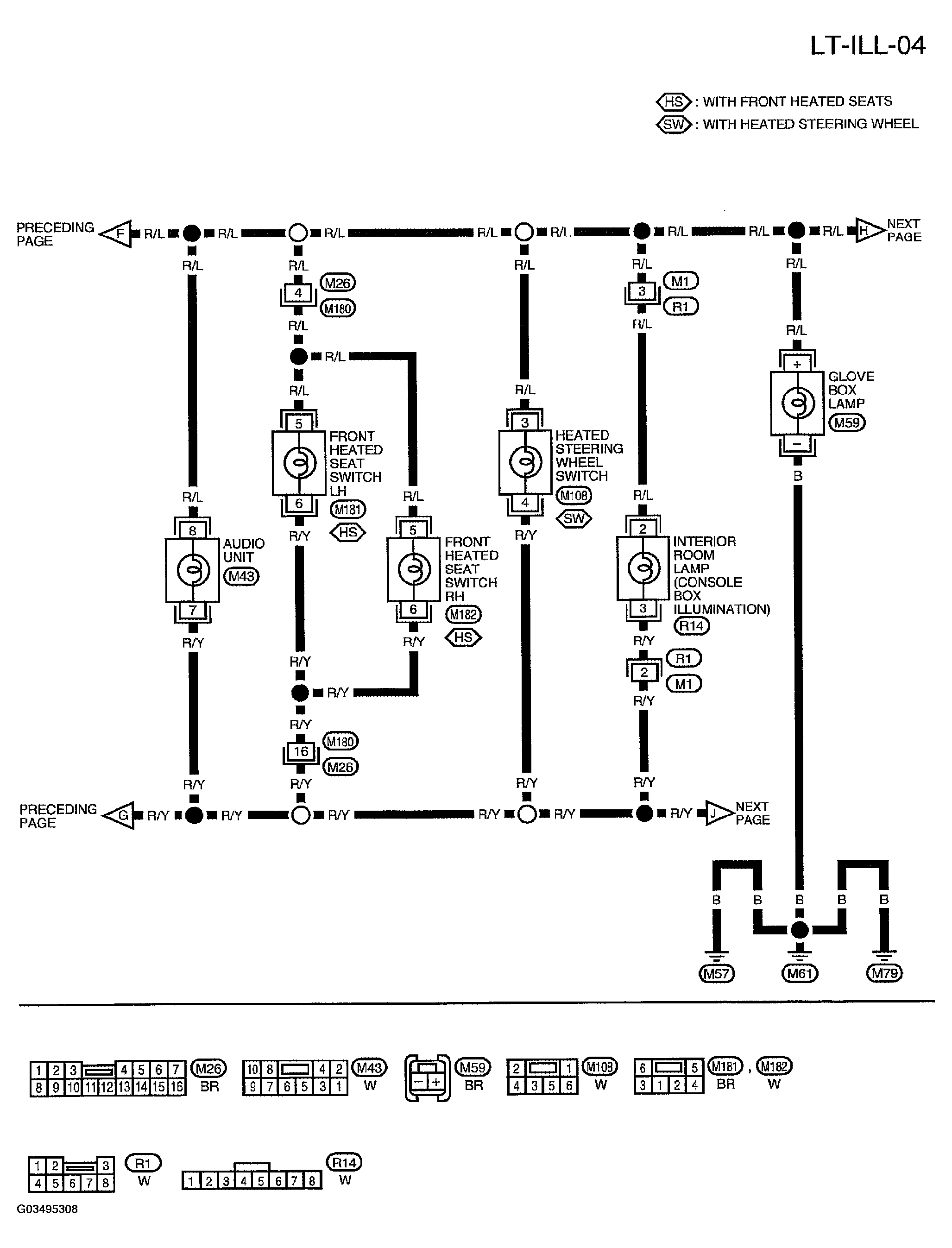

Fig 4: Illumination Wiring Diagram And Connector (4 Of 8) - LT-ILL-04
Courtesy of NISSAN MOTOR CO., U.S.A.

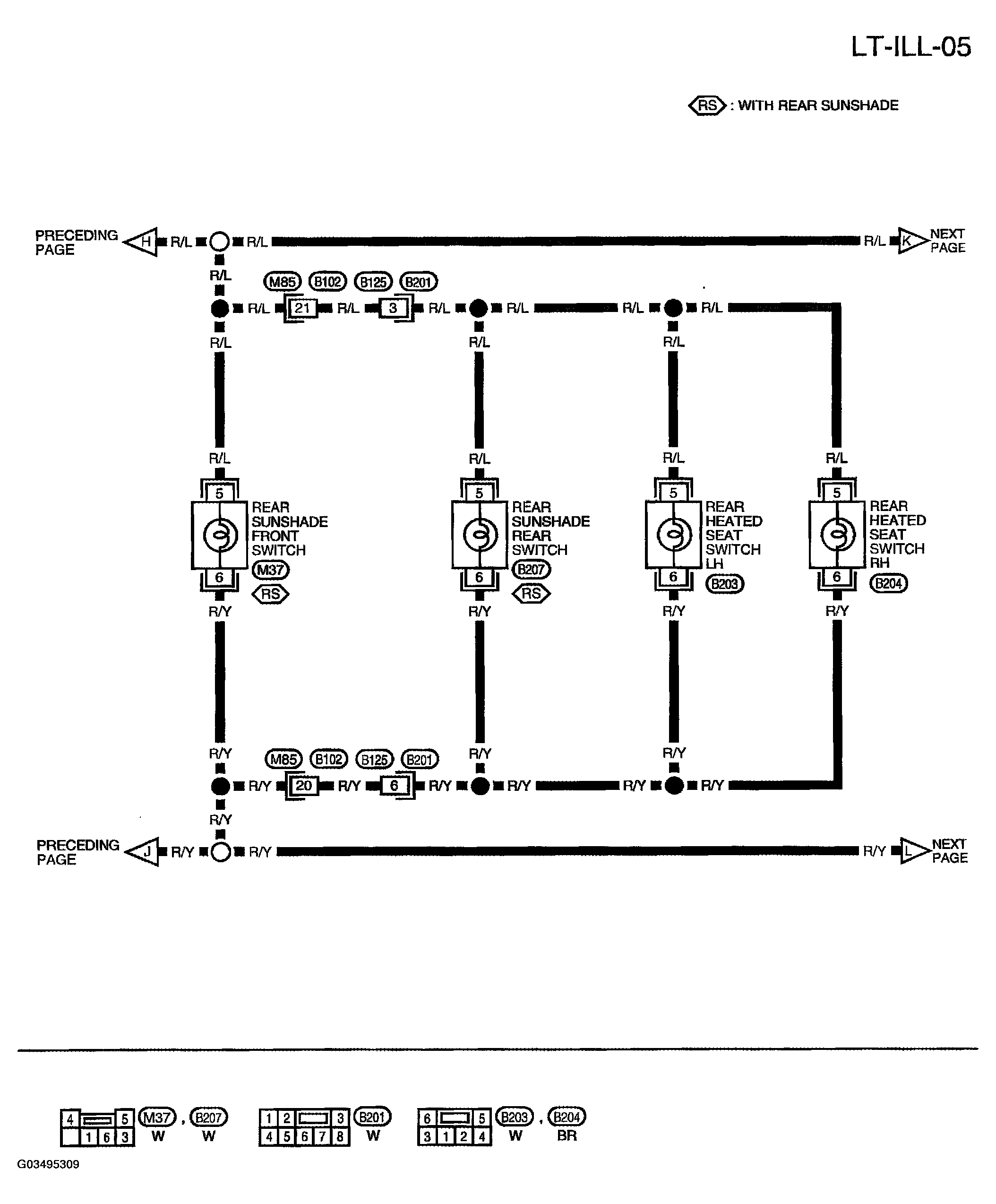

Fig 5: Illumination Wiring Diagram And Connector (5 Of 8) - LT-ILL-05
Courtesy of NISSAN MOTOR CO., U.S.A.

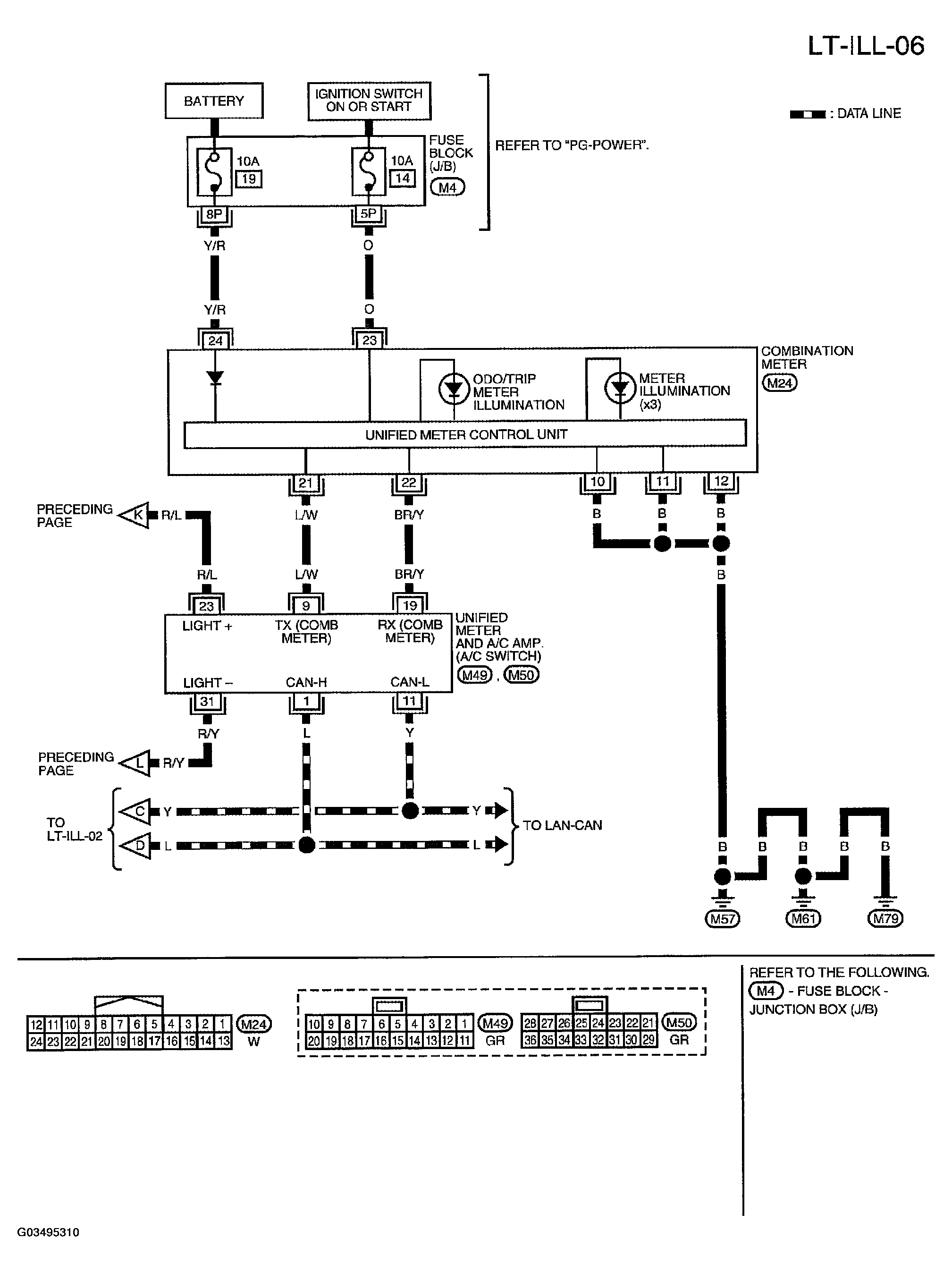

Fig 6: Illumination Wiring Diagram And Connector (6 Of 8) - LT-ILL-06
