Wiring Diagram - Room/L -

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

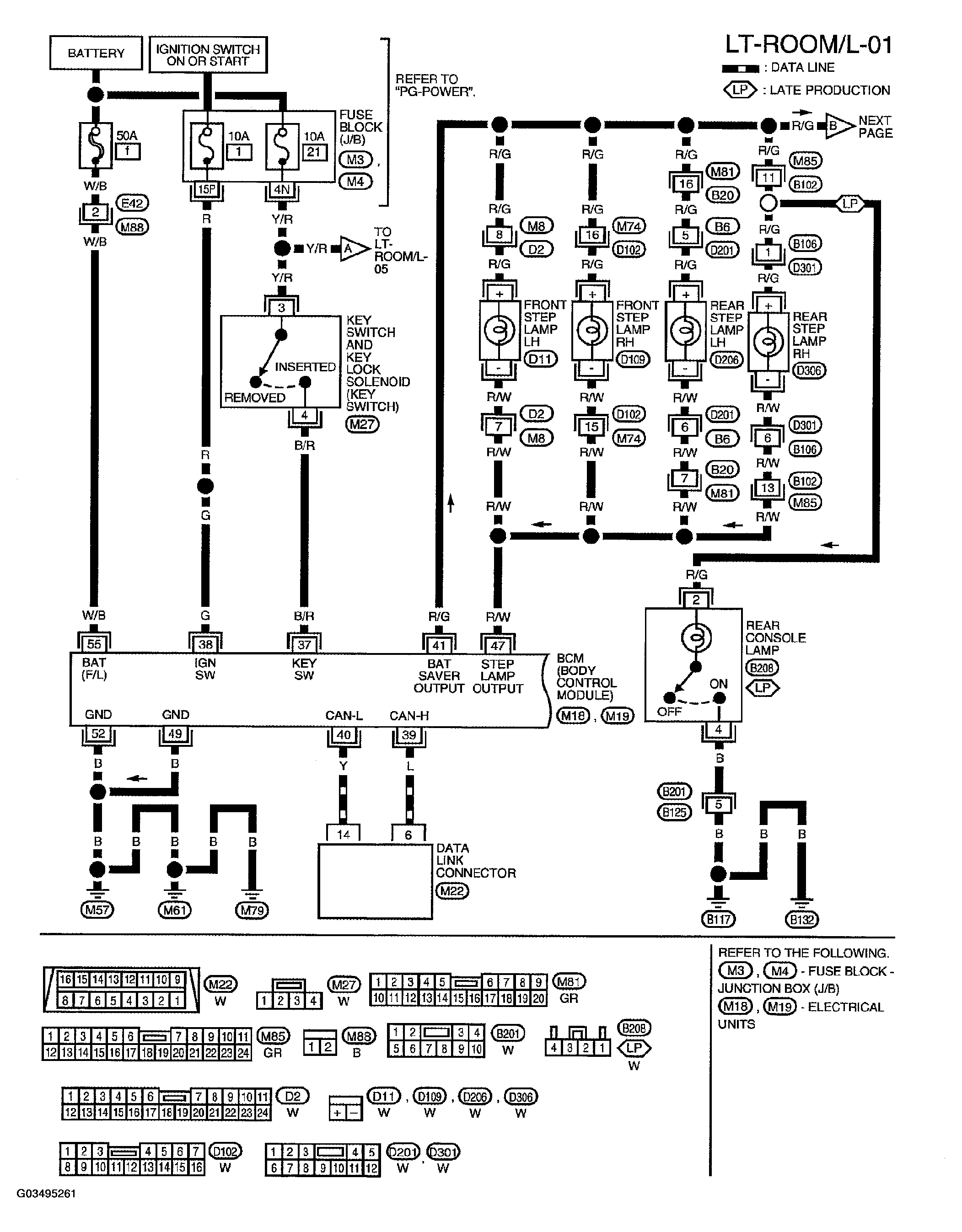

Fig 1: Interior Room Lamp Wring Diagram And Connectors (1 Of 7) - LT-ROOM/L-01

Courtesy of NISSAN MOTOR CO., U.S.A.

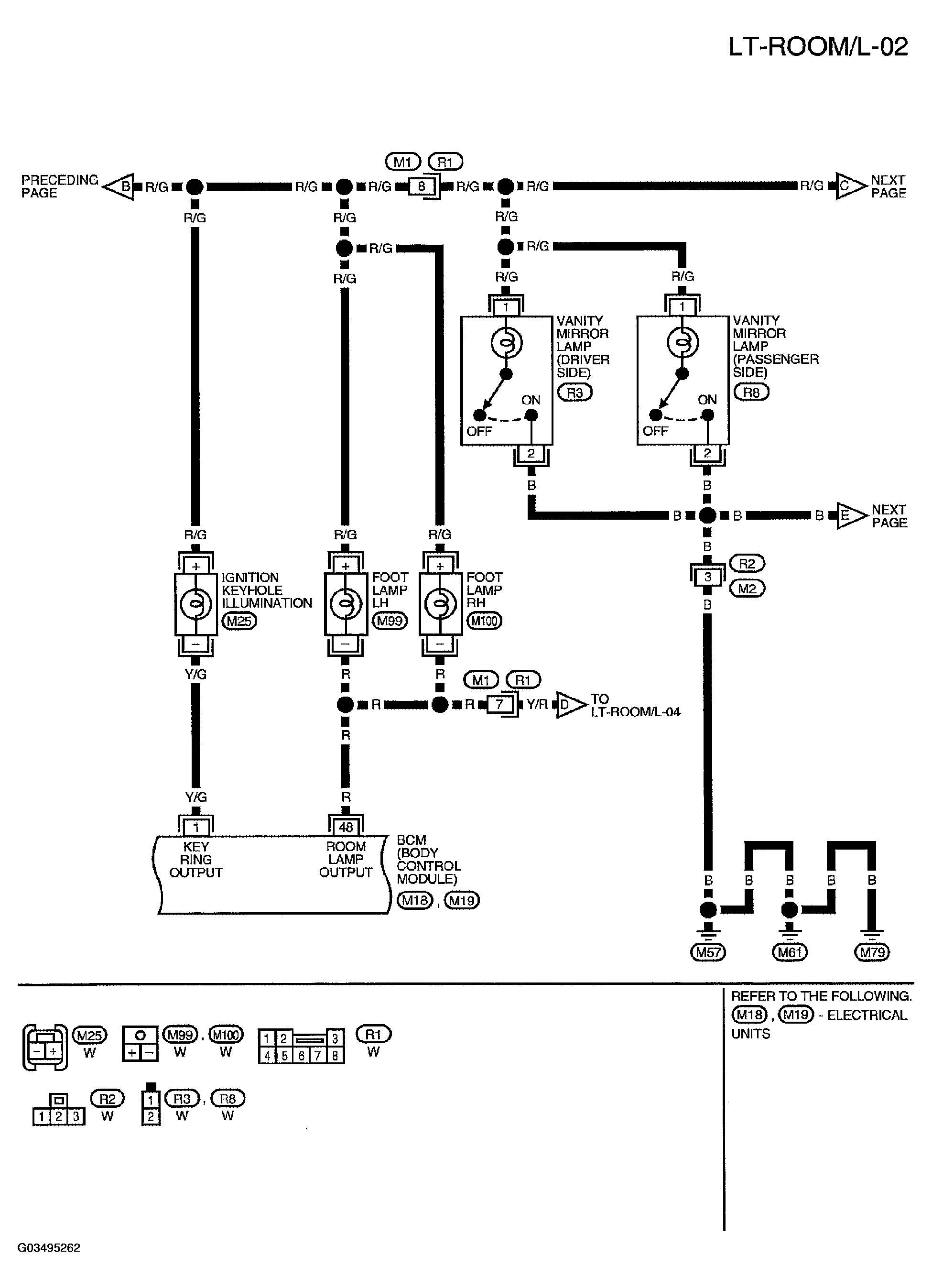

Fig 2: Interior Room Lamp Wring Diagram And Connectors (2 Of 7) - LT-ROOM/L-02

Courtesy of NISSAN MOTOR CO., U.S.A.

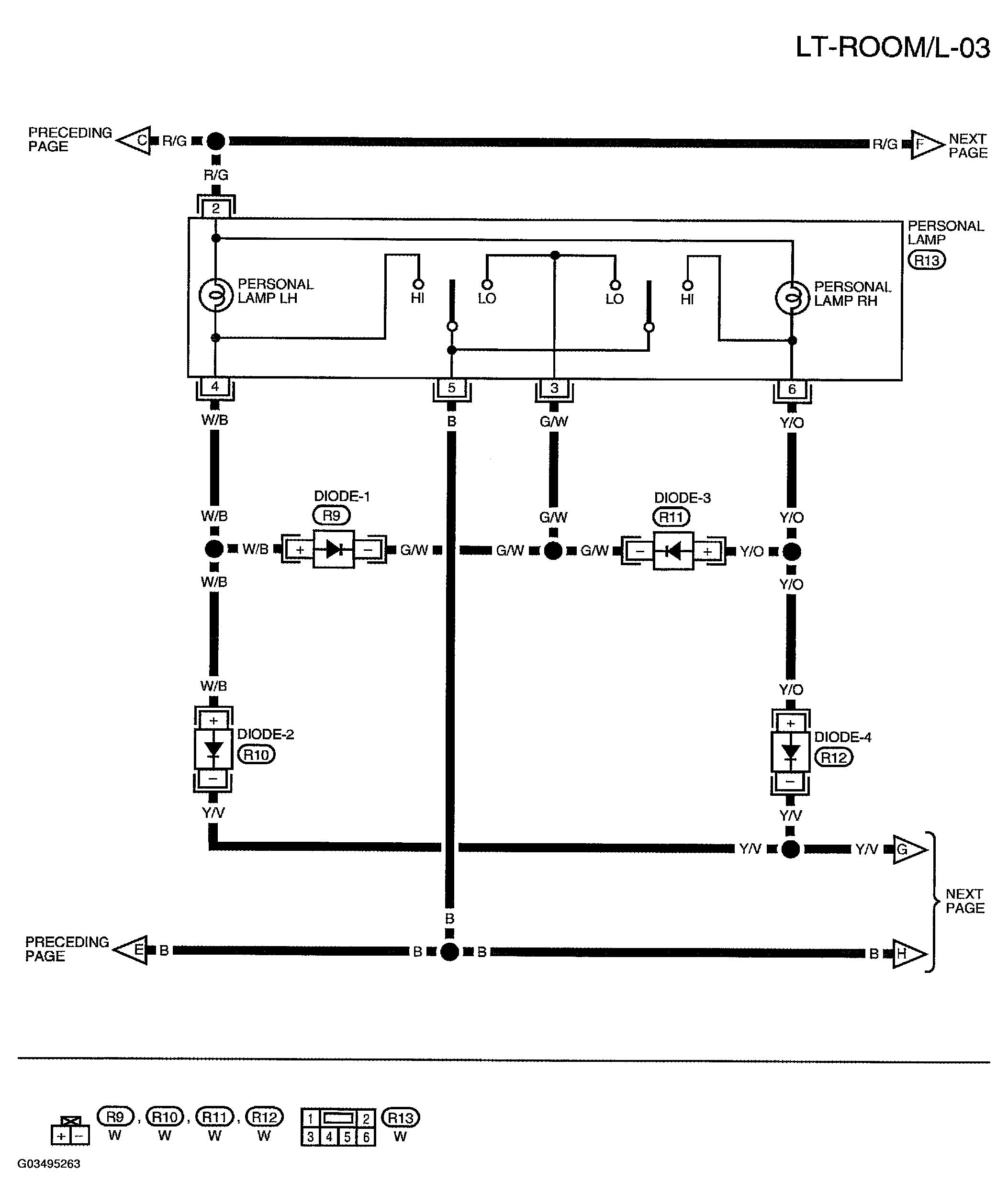

Fig 3: Interior Room Lamp Wring Diagram And Connectors (3 Of 7) - LT-ROOM/L-03

Courtesy of NISSAN MOTOR CO., U.S.A.

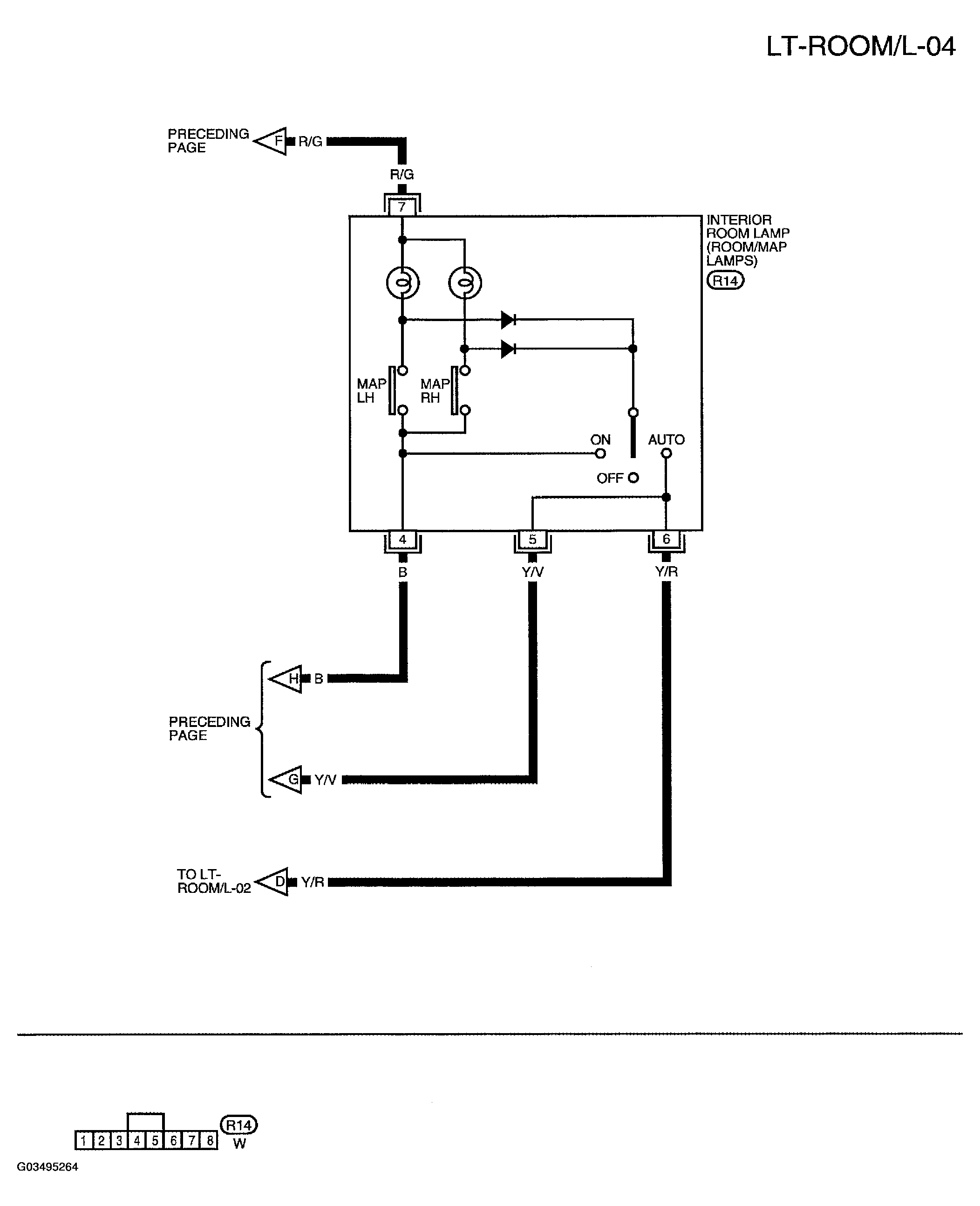

Fig 4: Interior Room Lamp Wring Diagram And Connectors (4 Of 7) - LT-ROOM/L-04

Courtesy of NISSAN MOTOR CO., U.S.A.

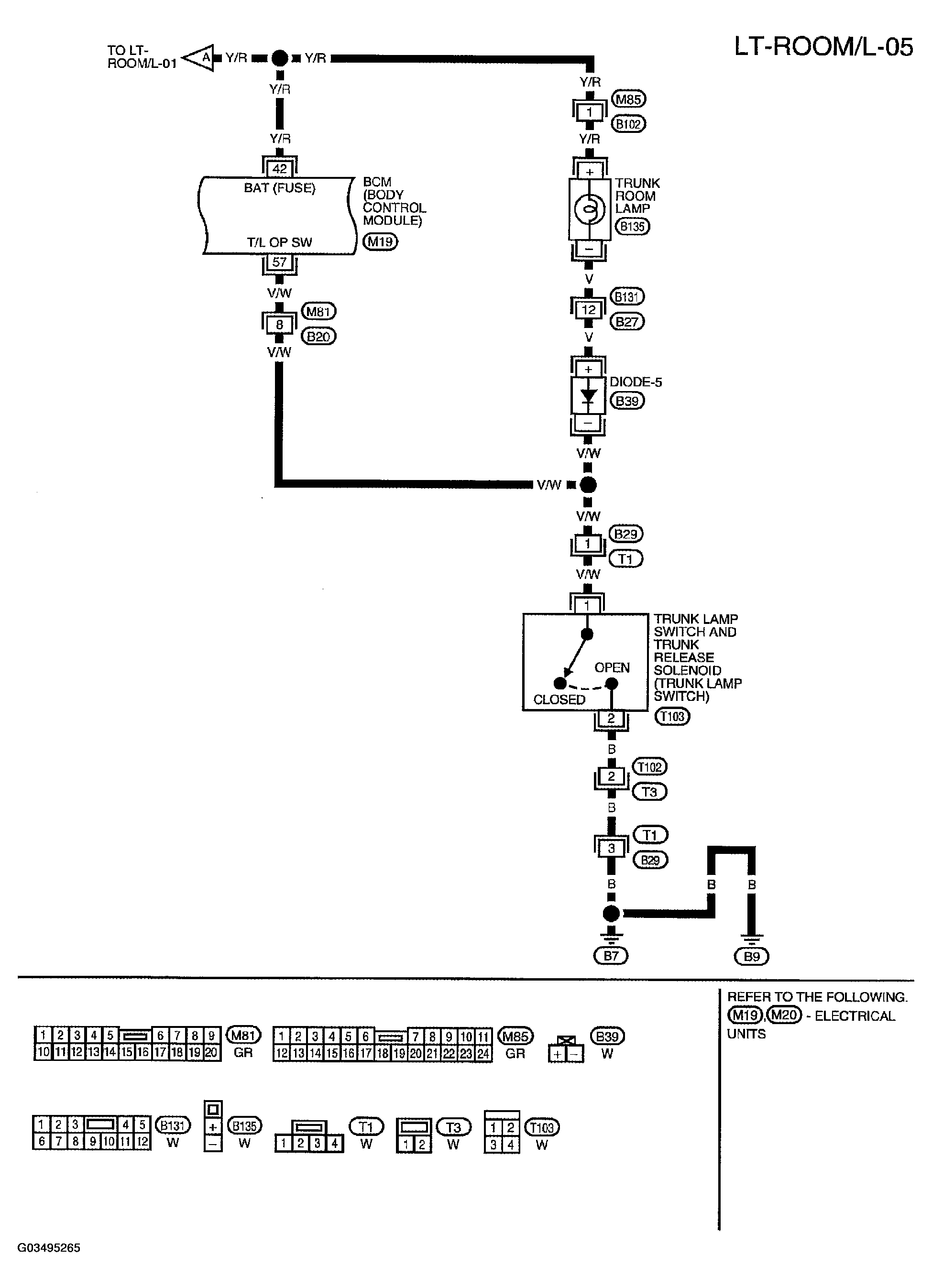

Fig 5: Interior Room Lamp Wring Diagram And Connectors (5 Of 7) - LT-ROOM/L-05

Courtesy of NISSAN MOTOR CO., U.S.A.

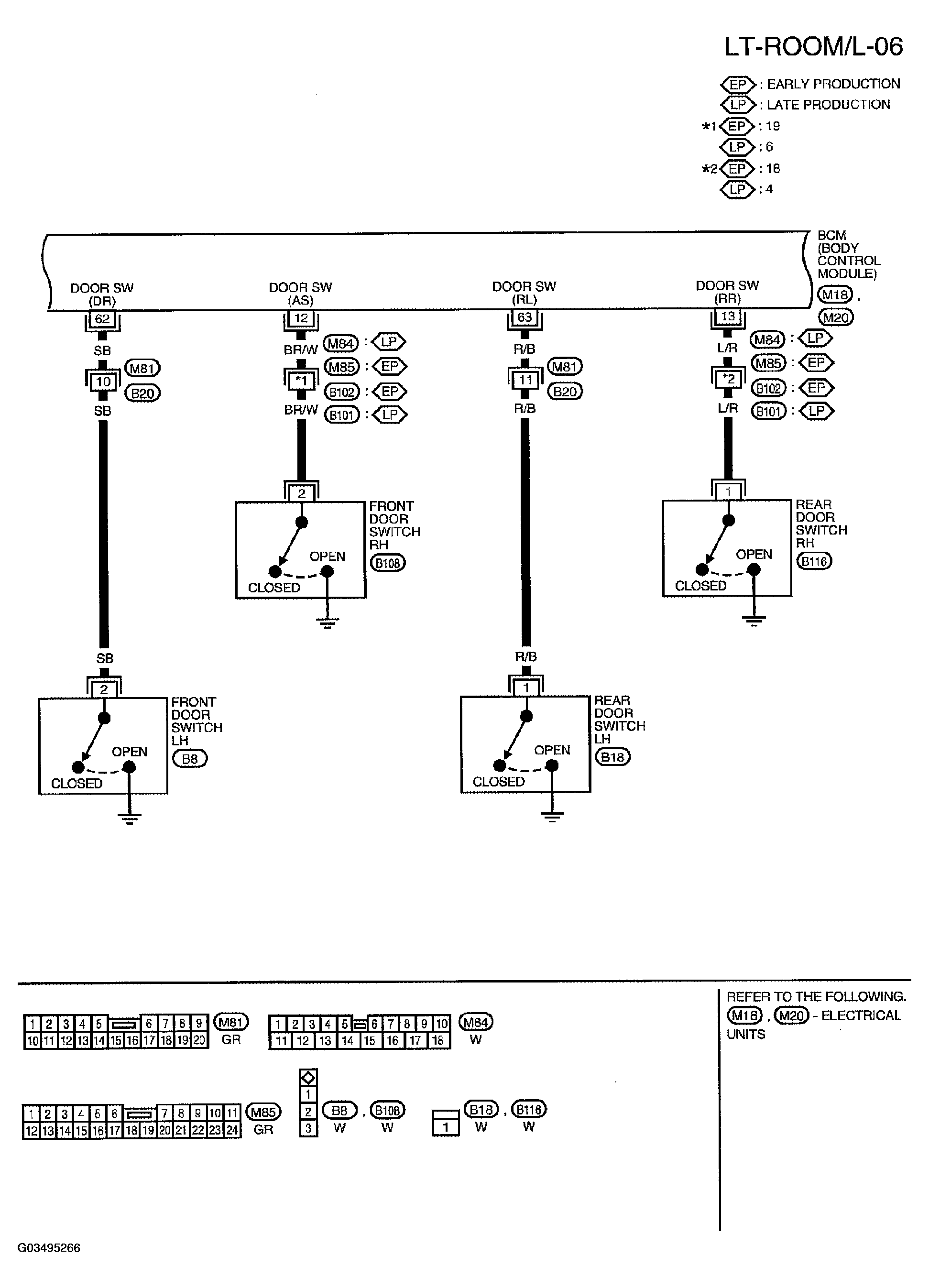

Fig 6: Interior Room Lamp Wring Diagram And Connectors (6 Of 7) - LT-ROOM/L-06

Courtesy of NISSAN MOTOR CO., U.S.A.

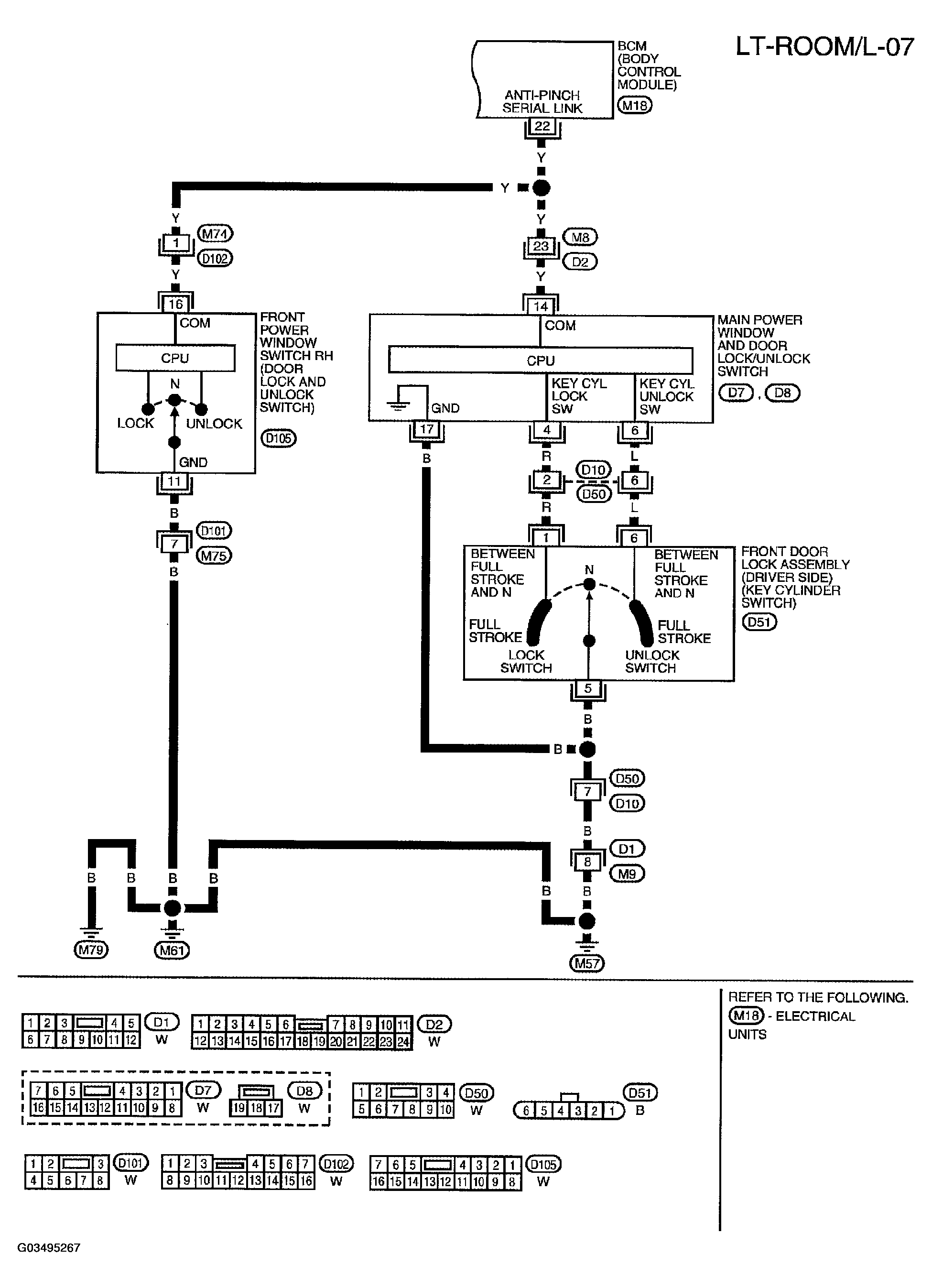

Fig 7: Interior Room Lamp Wring Diagram And Connectors (7 Of 7) - LT-ROOM/L-07

Courtesy of NISSAN MOTOR CO., U.S.A.
