Removal & Installation

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position trunk interior trim aside.
  2. Disconnect rear combination lamp connector.
  3. Remove rear combination lamp mounting nuts.
  4. Pull rear combination lamp to remove from the vehicle.
  5. To install, reverse removal procedure.

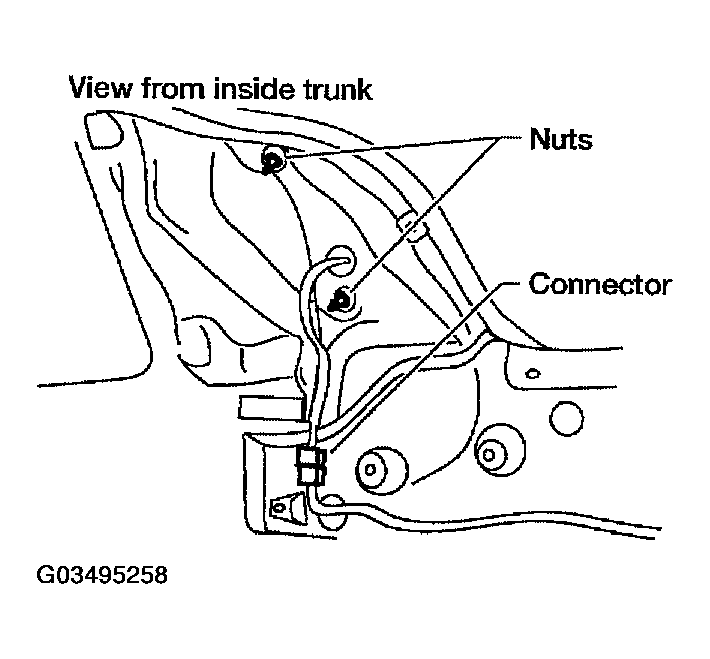

    6. Fig 1: Removing Rear Combination Lamp Mounting Nuts
    G03495258Courtesy of NISSAN MOTOR CO., U.S.A.
