WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

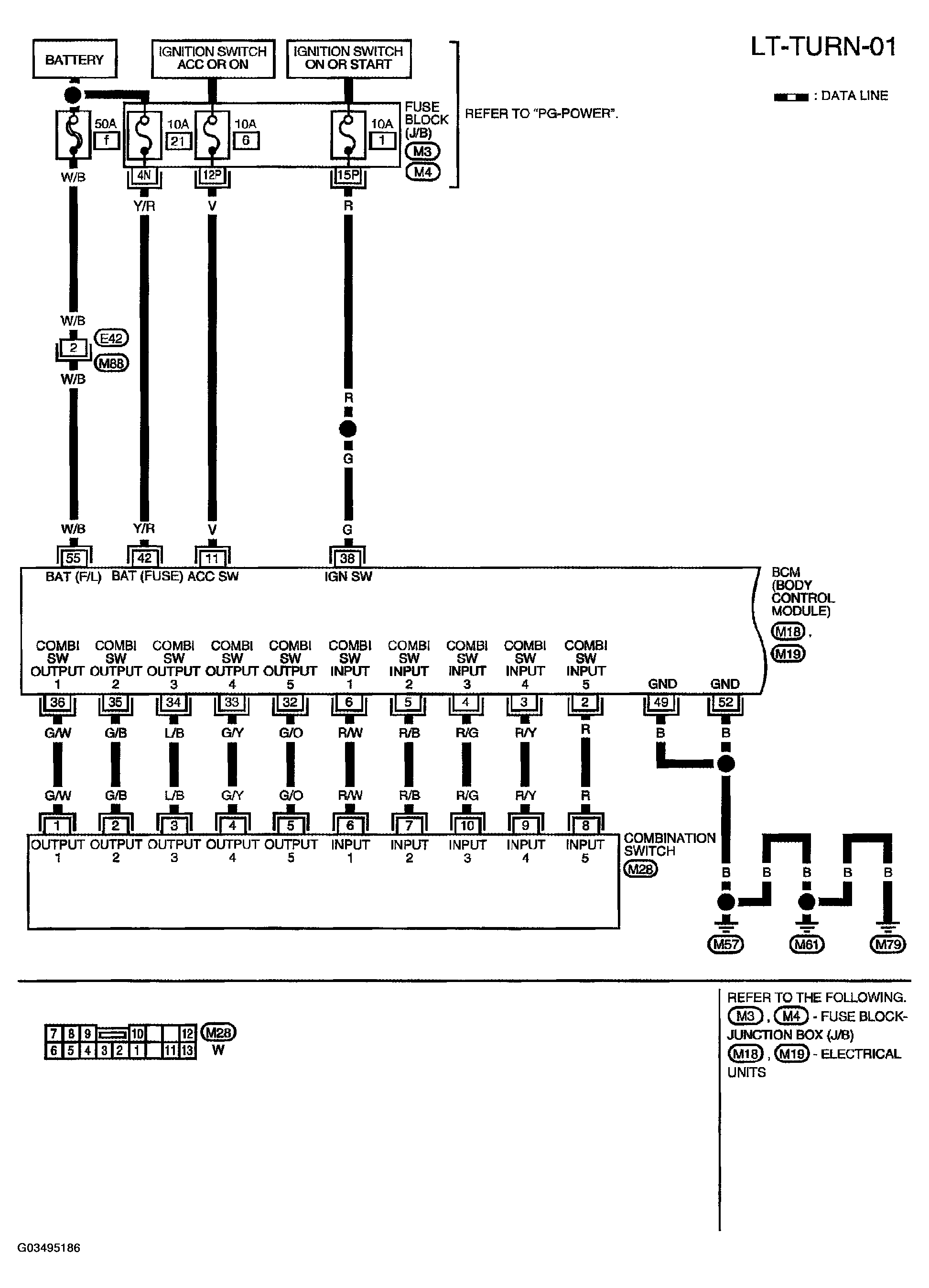

Fig 1: Turn Signal And Hazard Warning Lamps Wiring Diagram (1 Of 3) - LT-TURN-01
Courtesy of NISSAN MOTOR CO., U.S.A.

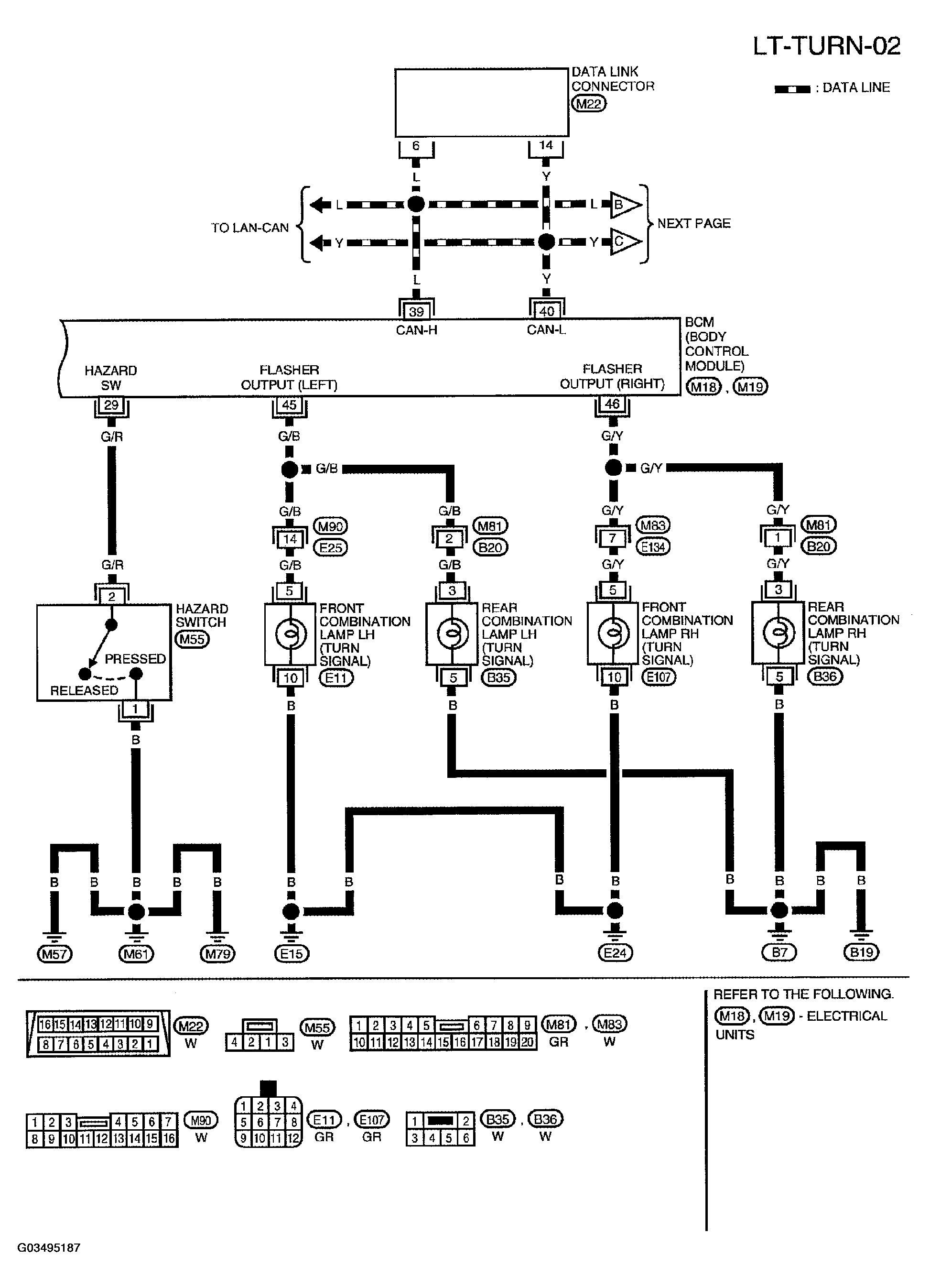

Fig 2: Turn Signal And Hazard Warning Lamps Wiring Diagram (2 Of 3) - LT-TURN-02
Courtesy of NISSAN MOTOR CO., U.S.A.

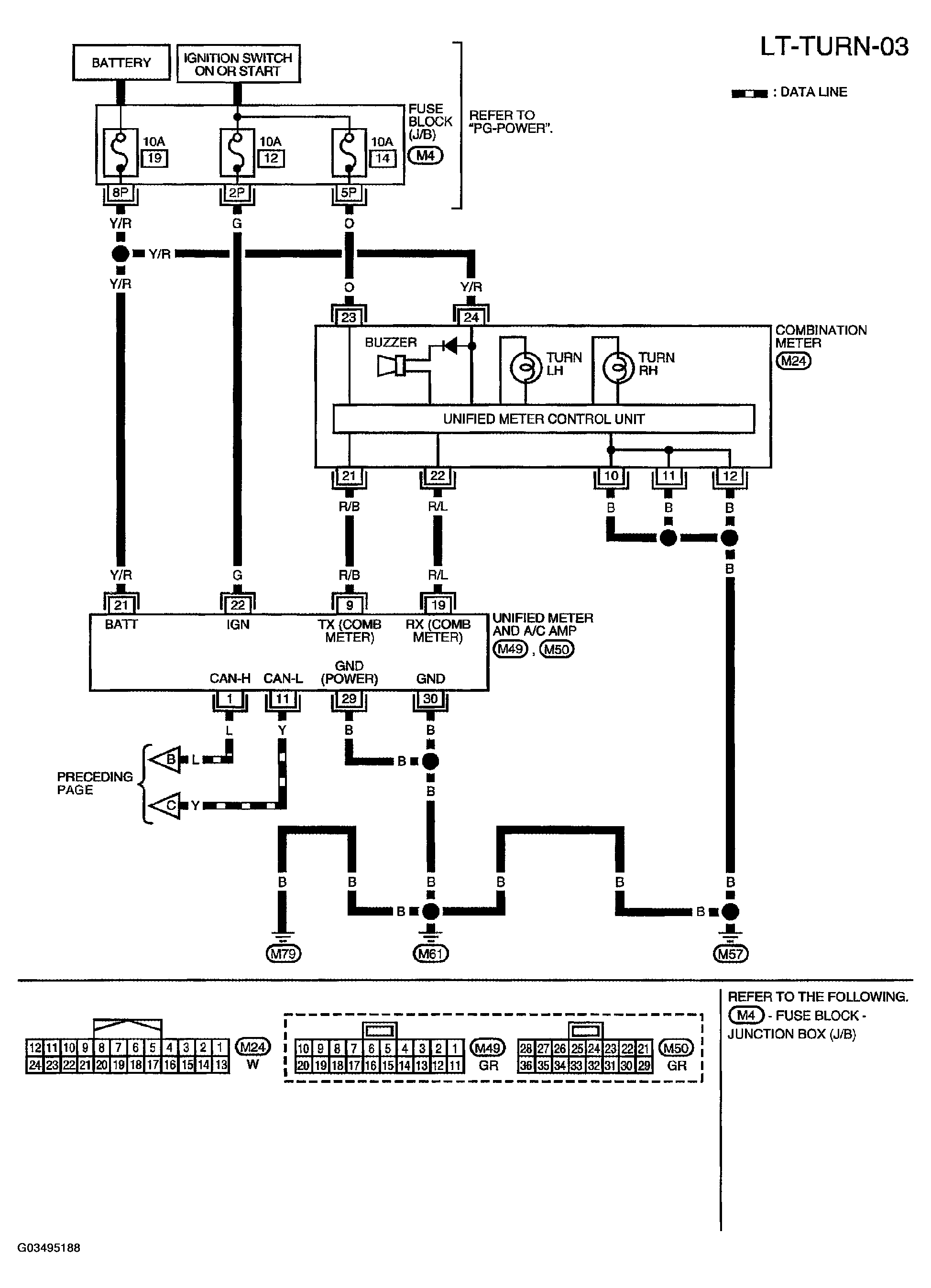

Fig 3: Turn Signal And Hazard Warning Lamps Wiring Diagram (3 Of 3) - LT-TURN-03
