Rear Turn Signal Lamp Does Not Operate

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

CHECK TAIL LAMPS AND STOP LAMPS
Check bulb standard of each turn signal lamp is correct.

OK or NG
1. OK: GO TO 2.
2. NG: Replace turn signal lamp bulb.
CHECK TURN SIGNAL LAMPS CIRCUIT
1. Disconnect BCM connector and rear combination lamp connector.
2. Check continuity between BCM harness connector M19 terminal 46 (G/Y) and rear combination lamp RH harness connector B36 terminal 3 (G/Y).
  1. 46 (G/Y) - 3 (G/Y): Continuity should exist.
3. Check continuity between BCM harness connector M19 terminal 45 (G/B) and rear combination lamp LH harness connector B35 terminal 3 (G/B).
  1. 45 (G/B) - 3 (G/B): Continuity should exist.
OK or NG
1. OK: GO TO 3.
2. NG: Repair harness or connector.

  Fig 1: Checking Turn Signal Lamps Circuit
  Courtesy of NISSAN MOTOR CO., U.S.A.
CHECK GROUND CIRCUIT
Check continuity between rear combination lamp harness connector B35 LH and B36 RH terminal 5 (B) and ground.
1. 5 (B) - Ground: Continuity should exist.
OK or NG
1. OK: Check rear combination lamp connector for proper connection. Repair as necessary.
2. NG: Repair harness or connector.

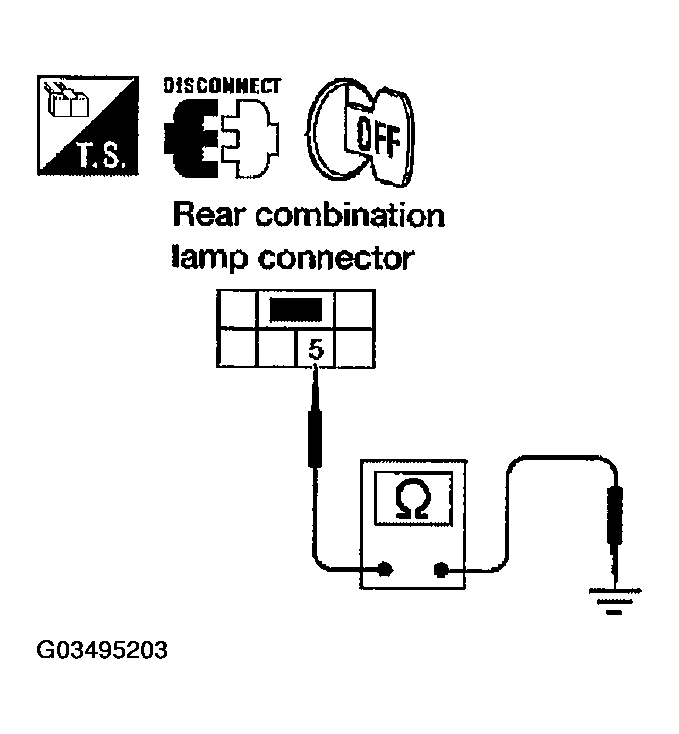

Fig 2: Checking Ground Circuit

Courtesy of NISSAN MOTOR CO., U.S.A.
