Consult-II Basic Operation

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carries out CAN communication.

With the ignition switch OFF, connect CONSULT-II and CONSULT-II CONVERTER to the data link connector, then turn ignition switch ON.

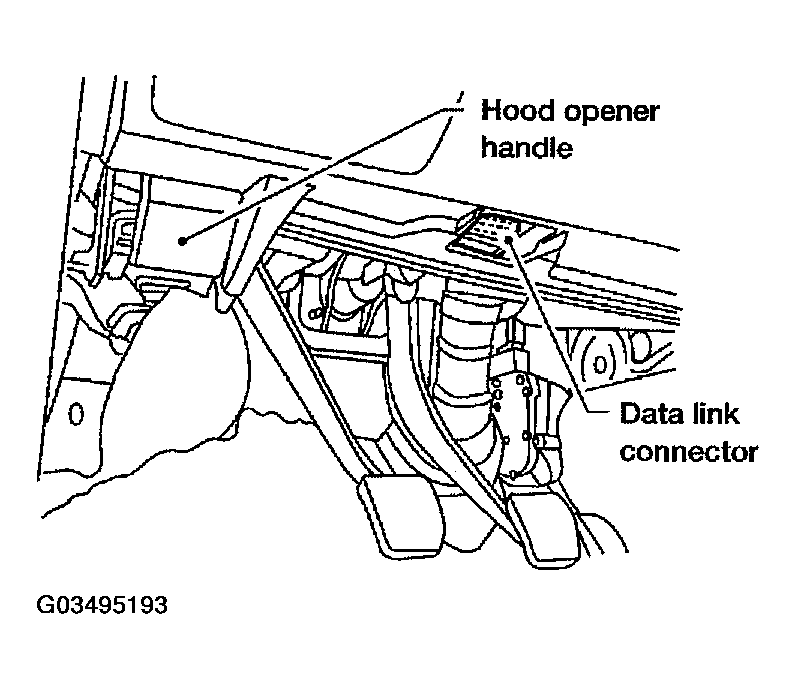

Fig 1: Connecting Consult-II And Consult-II Converter To Data Link Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "START (NISSAN BASED VHCL)".

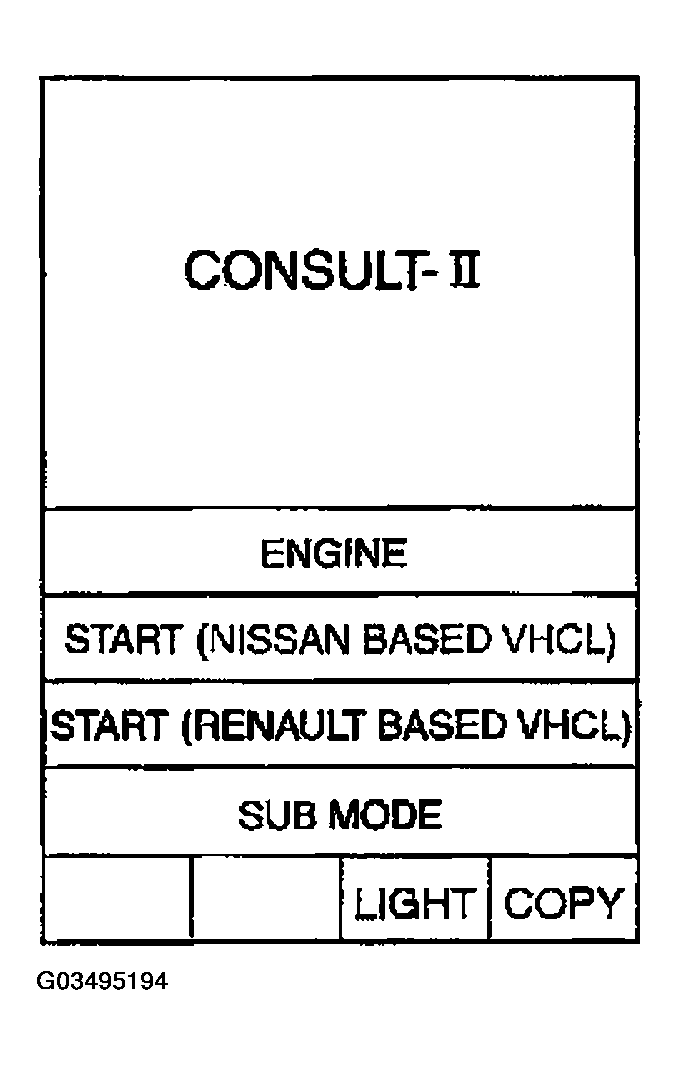

Fig 2: Consult-II Display Touch Start (Nissan Based Vehicle)
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "BCM" on "SELECT SYSTEM" screen.
If "BCM" is not indicated, go to CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT .

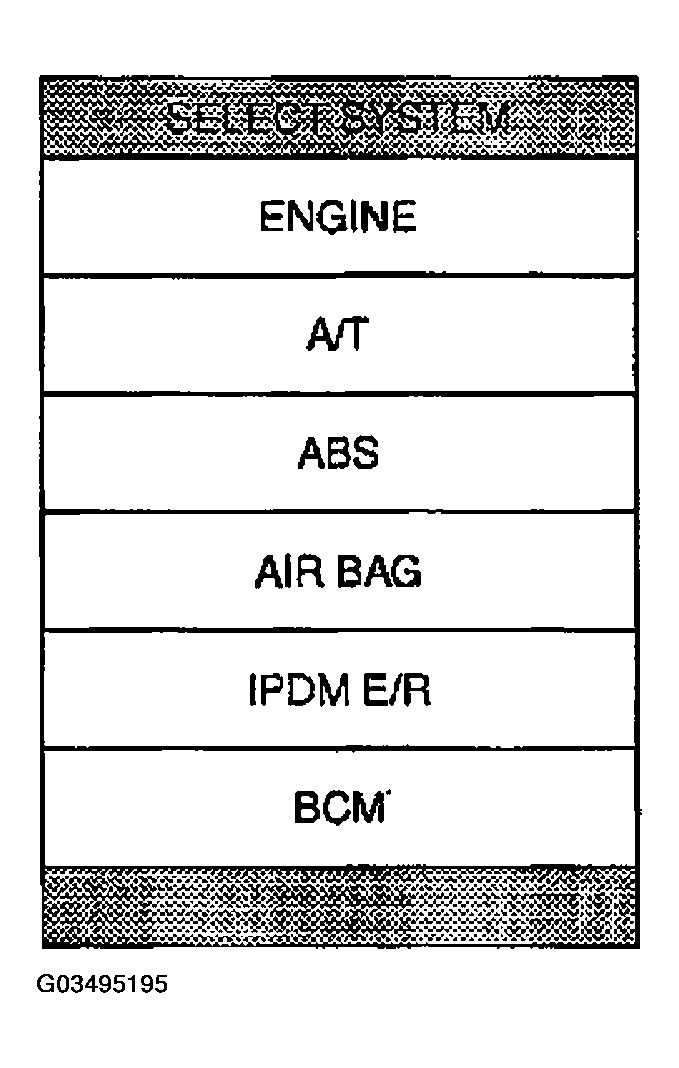

Fig 3: Consult-II Display Select System
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "FLASHER" on "SELECT TEST ITEM" screen.

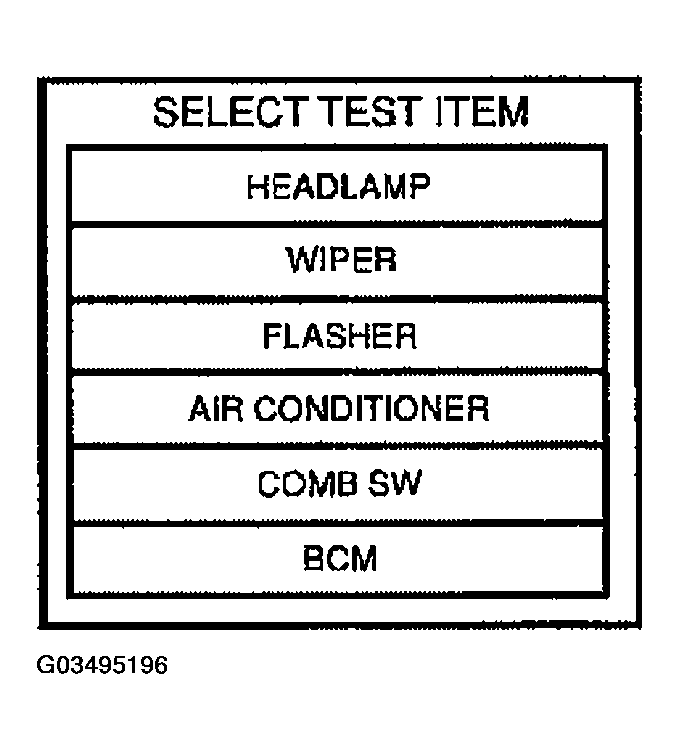

Fig 4: Consult-II Display Select Test Item
Courtesy of NISSAN MOTOR CO., U.S.A.
