WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

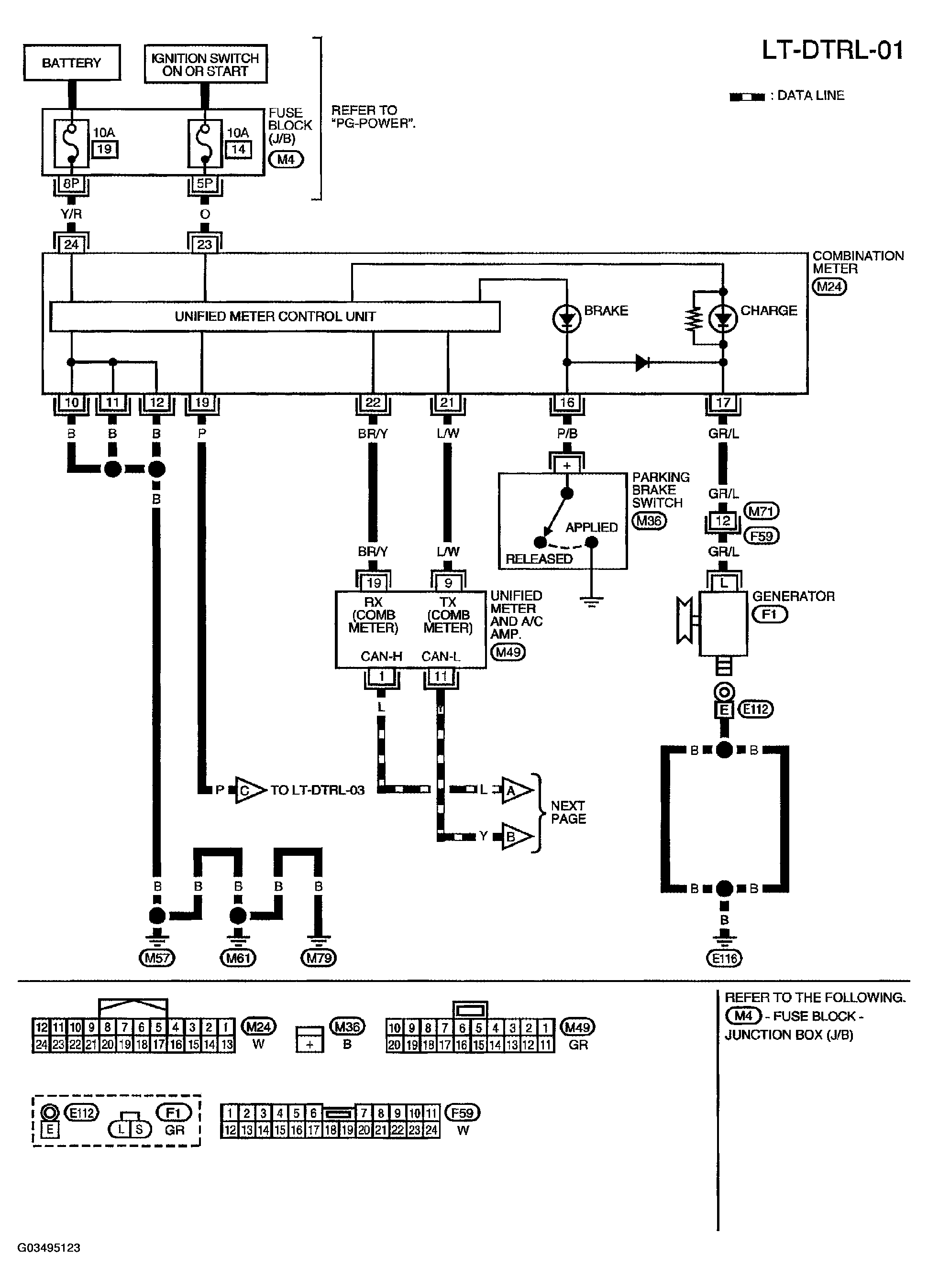

Fig 1: Headlamp Daytime Light System Wiring Diagram (1 Of 3) - LT-DTRL-01
Courtesy of NISSAN MOTOR CO., U.S.A.

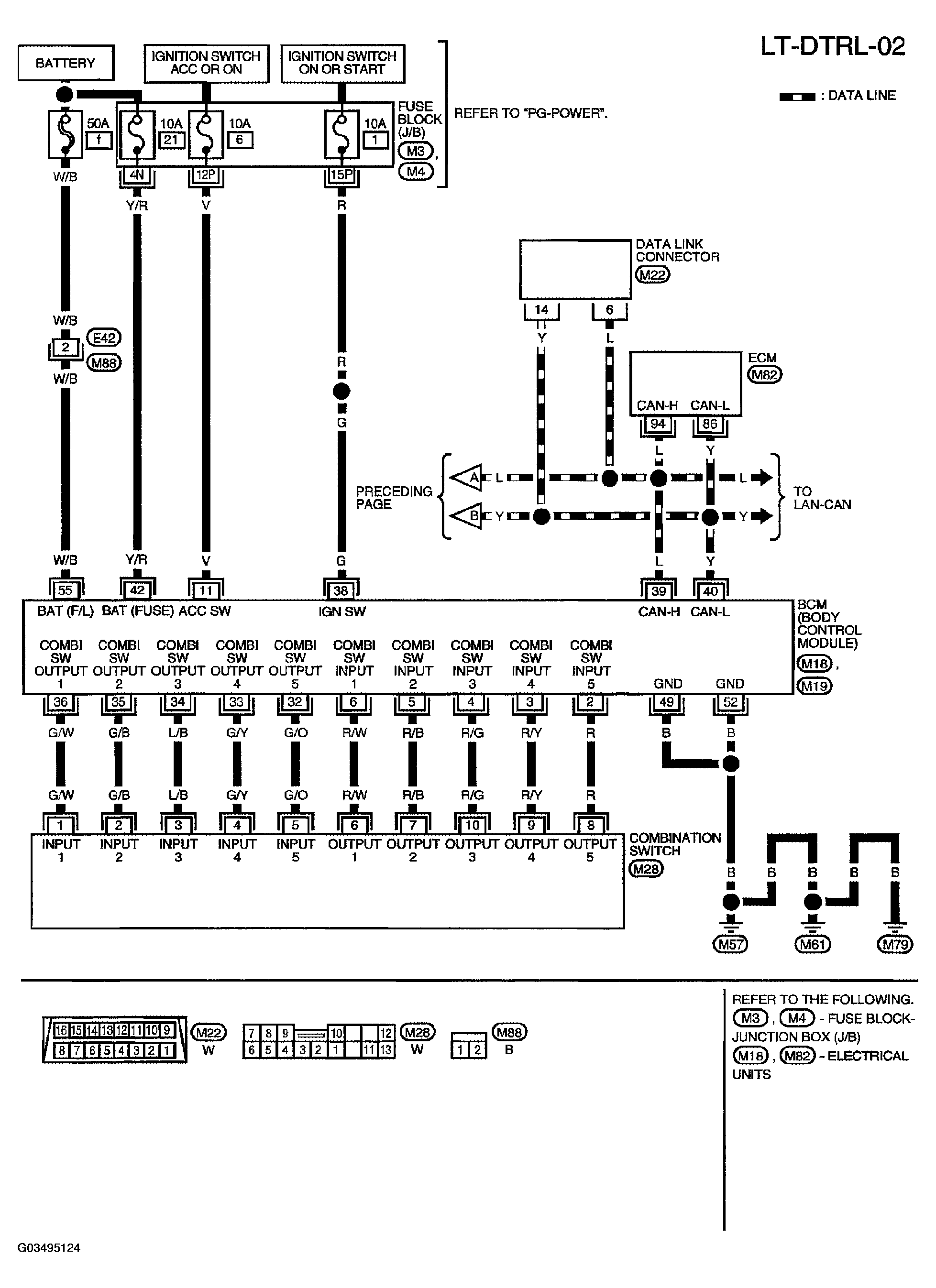

Fig 2: Headlamp Daytime Light System Wiring Diagram (2 Of 3) - LT-DTRL-02
Courtesy of NISSAN MOTOR CO., U.S.A.

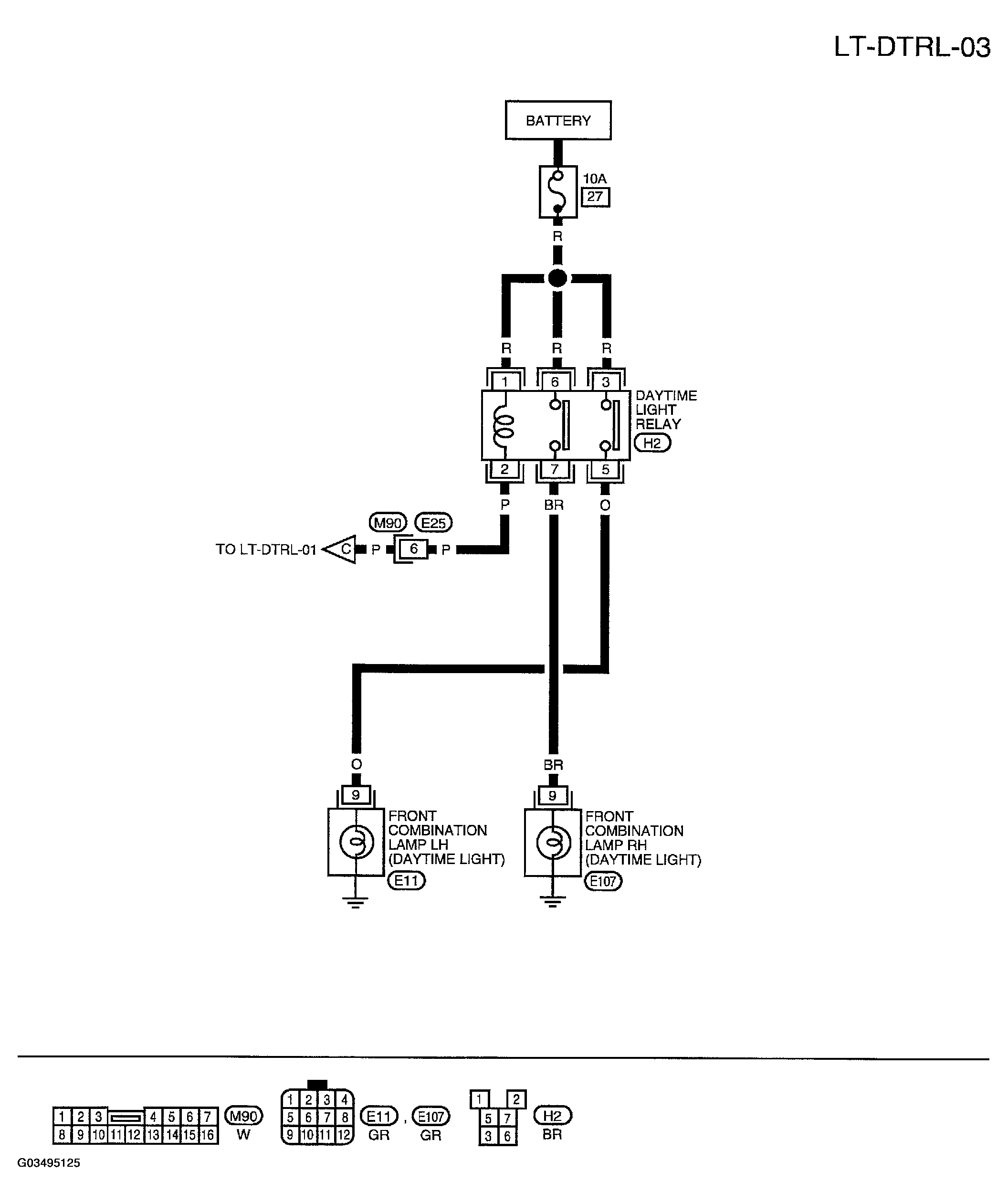

Fig 3: Headlamp Daytime Light System Wiring Diagram (3 Of 3) - LT-DTRL-03
