Headlamp Low Beam Does Not Illuminate (One Side)

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

CHECK BULB
Check ballasts (HID control unit) and xenon bulb of lamp which does not illuminate. Refer to "XENON HEADLAMP TROUBLE DIAGNOSIS ".

OK or NG
1. OK: GO TO 2.
2. NG: Repair malfunctioning part.
CHECK HEADLAMP CIRCUIT
1. Disconnect IPDM E/R connector and front combination lamp RH or LH connector.
2. Check continuity between IPDM E/R harness connector E122 terminal 20 (R/Y) and front combination lamp RH harness connector E107 terminal 3 (R/Y).
  1. 20 (R/Y) - 3 (R/Y): Continuity should exist.
3. Check continuity between IPDM E/R harness connector E122 terminal 30 (L) and front combination lamp LH harness connector E11 terminal 3 (L).

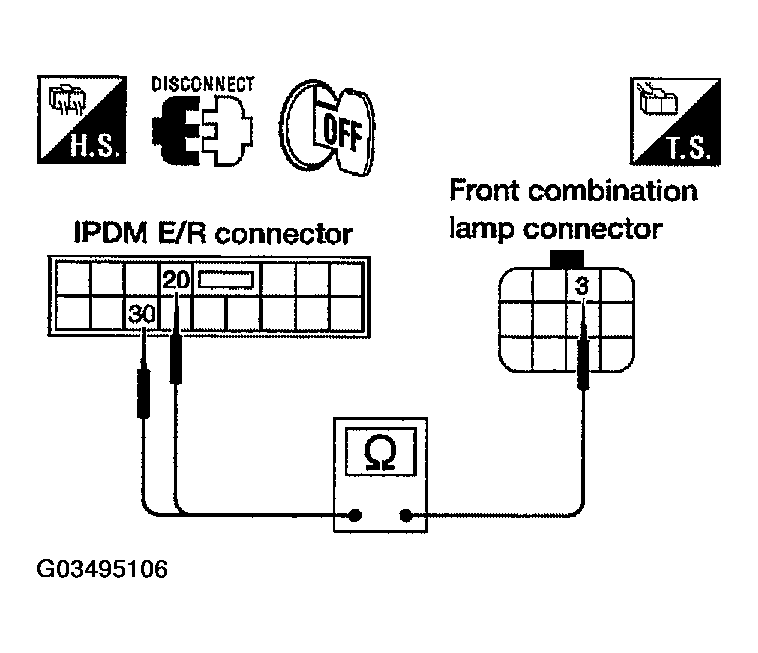

  Fig 1: Checking Headlamp Circuit
  Courtesy of NISSAN MOTOR CO., U.S.A.
  1. 30 (L) - 3 (L): Continuity should exist.
OK or NG
1. OK: GO TO 3.
2. NG: Repair harness or connector.
CHECK HEADLAMP GROUND
1. Check continuity between front combination lamp RH harness connector E107 terminal 4 (B) and ground.
  1. 4 (B) - Ground: Continuity should exist.
2. Check continuity between front combination lamp LH harness connector E11 terminal 4 (B) and ground.
  1. 4 (B) - Ground: Continuity should exist.

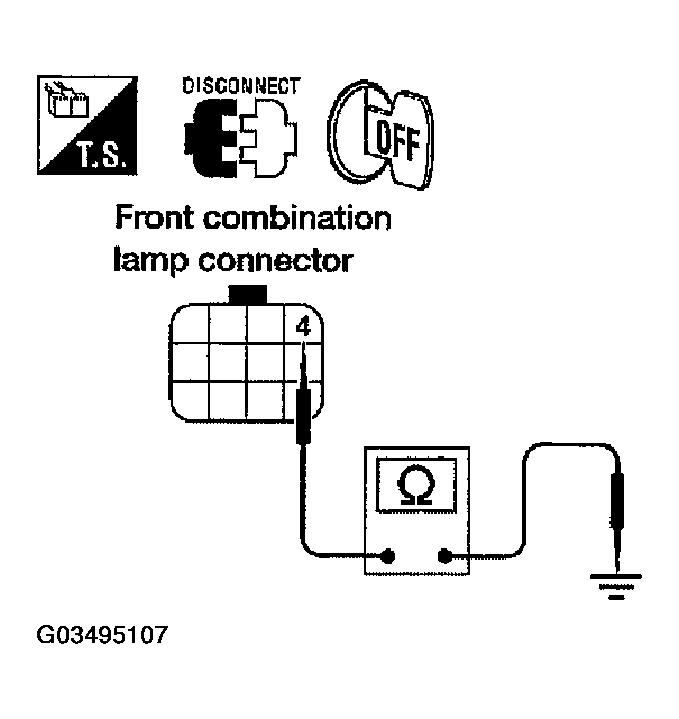

  Fig 2: Checking Continuity Between Front Combination Lamp LH Harness Connectors Terminal 4 (B) And Ground
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
1. OK: Replace IPDM E/R.
2. NG: Repair harness or connector.
