Wiring Diagram -- NATS --

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

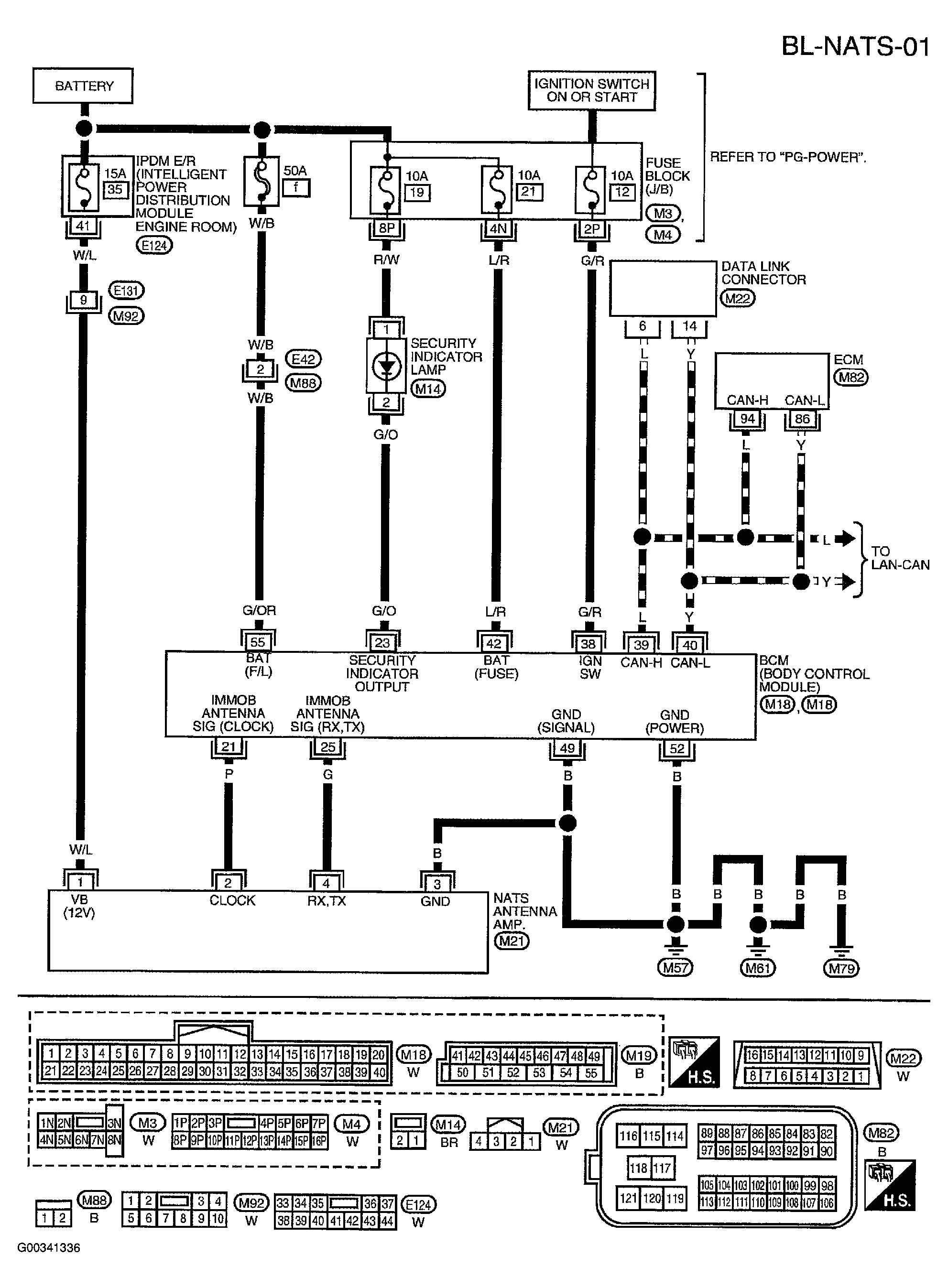

Fig 1: NATS - Wiring Diagram & Identifying Connectors - BL-NATS-01

Courtesy of NISSAN MOTOR CO., U.S.A.
