System Composition
WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

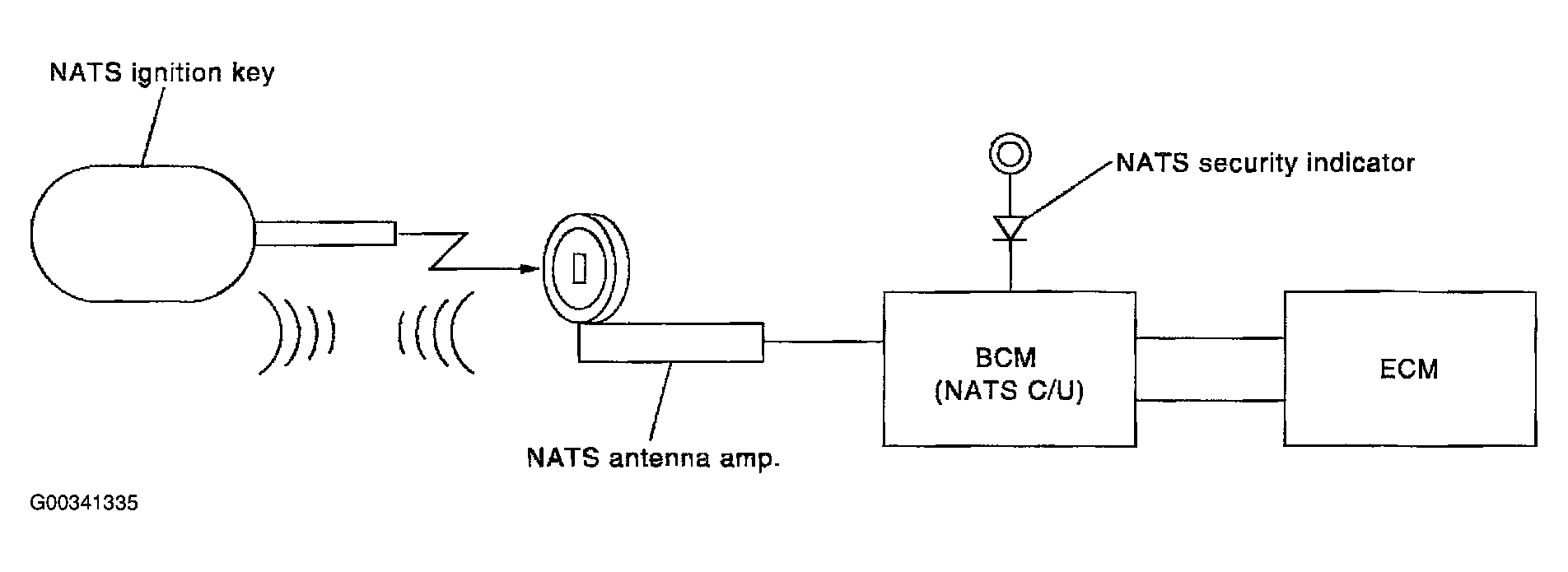

The immobilizer function of the NVIS (NATS) consists of the following:
- NATS ignition key
- NATS antenna amp. located in the ignition key cylinder
- Body control module (BCM)
- Engine control module (ECM)
- Security indicator
NOTE:
The communication between ECM and BCM uses the CAN communication system.
