5. Ground Circuit Check

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Check continuity between auto anti-dazzling inside mirror (integrated homelink transmitter) connector R7 terminal 8 (B) and body ground.

8 (B) - Ground: Continuity should exist.

OK or NG

OK >> Replace inside mirror assembly.
NG >> Repair or replace harness.

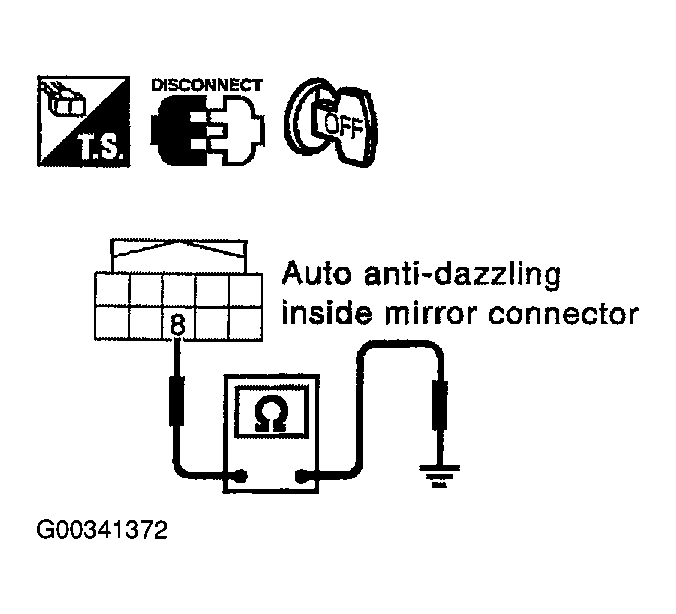

Fig 1: Checking Continuity Between Anti-Dazzling Inside Mirror Connector R7 Terminal 8 (B) & Ground

Courtesy of NISSAN MOTOR CO., U.S.A.
