1. Confirm Self-Diagnostic Results

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Confirm SELF-DIAGNOSTIC RESULTS "CHAIN OF IMMU-KEY" displayed on CONSULT-II screen.

Is CONSULT-II screen displayed as above?

  1. Yes >> GO TO 2
  2. No >> GO TO SYMPTOM MATRIX CHART 1  .

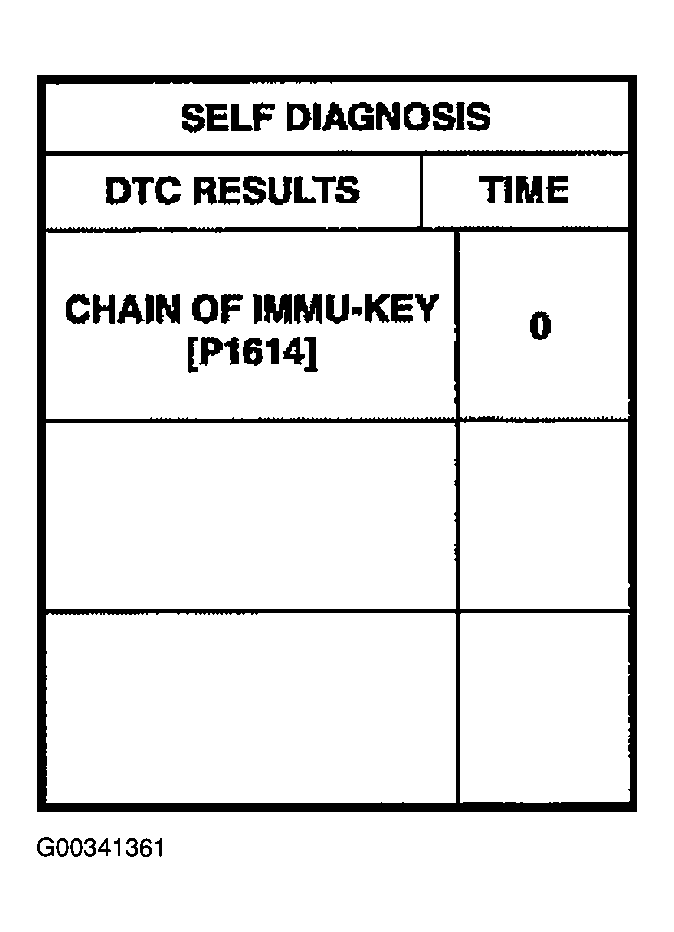

Fig 1: CONSULT-II Display - Self Diagnostic Result Mode
G00341361Courtesy of NISSAN MOTOR CO., U.S.A.
