2. Perform Initialization With Consult-II
WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
Perform initialization with CONSULT-II. Re-register all NATS ignition key IDs.
For initialization and registration of NATS ignition key IDs, refer to CONSULT-II Operation Manual for NATS-IVIS/NVIS.
NOTE:

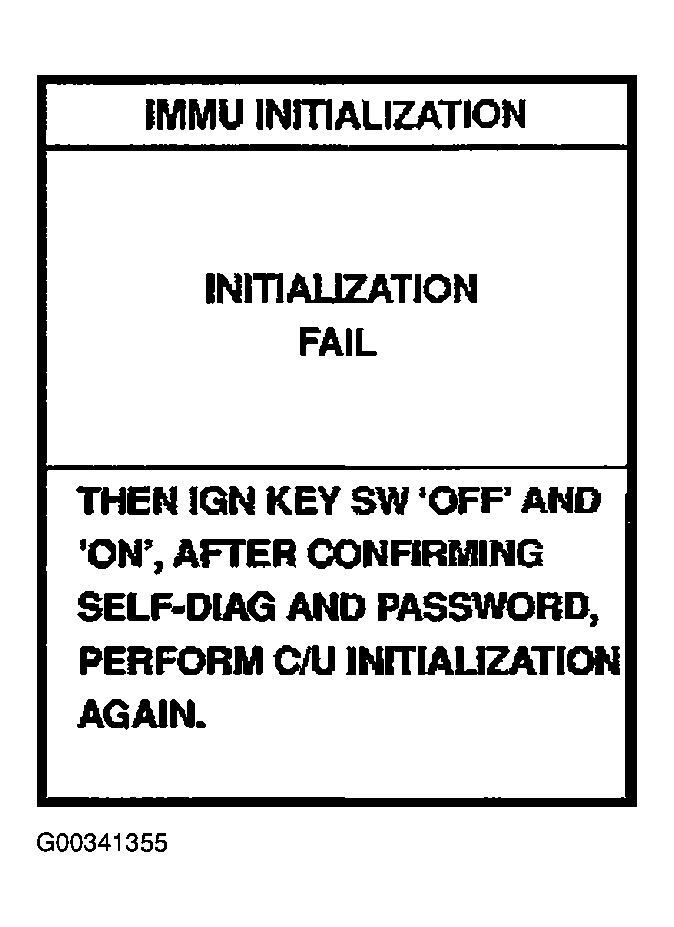

If the initialization is not completed or malfunctions, CONSULT-II shows message on the screen.
Can the system be initialized and can the engine be started with re-registered NATS ignition key?
- Yes >>
- Ignition key ID was unregistered. Ref. part No. D
- No >>
- BCM is malfunctioning.
- Replace BCM. Ref. part No. A
- Perform initialization with CONSULT-II.
- For initialization, refer to CONSULT-II Operation Manual for NATS-IVIS/NVIS.
