Consult-II Inspection Procedure

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carry out CAN communication.

Turn ignition switch OFF.
Insert NVIS (NATS) program card into CONSULT-II.
1. Program card: NATS (AEN02C)
Connect CONSULT-II and CONSULT-II CONVERTER to data link connector.

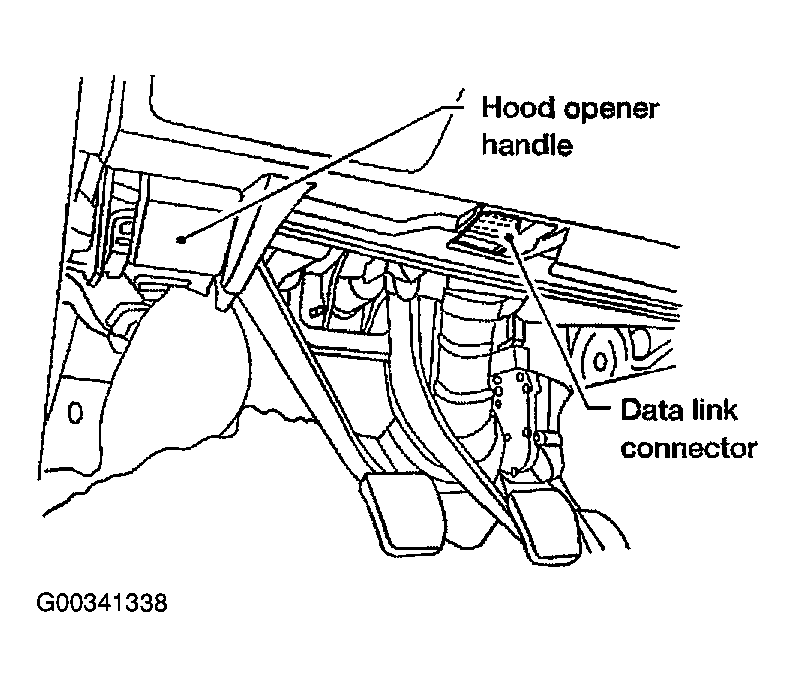

Fig 1: Connecting CONSULT-II & CONSULT-II Converter To Data Link Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Turn ignition switch ON.
Touch "START".

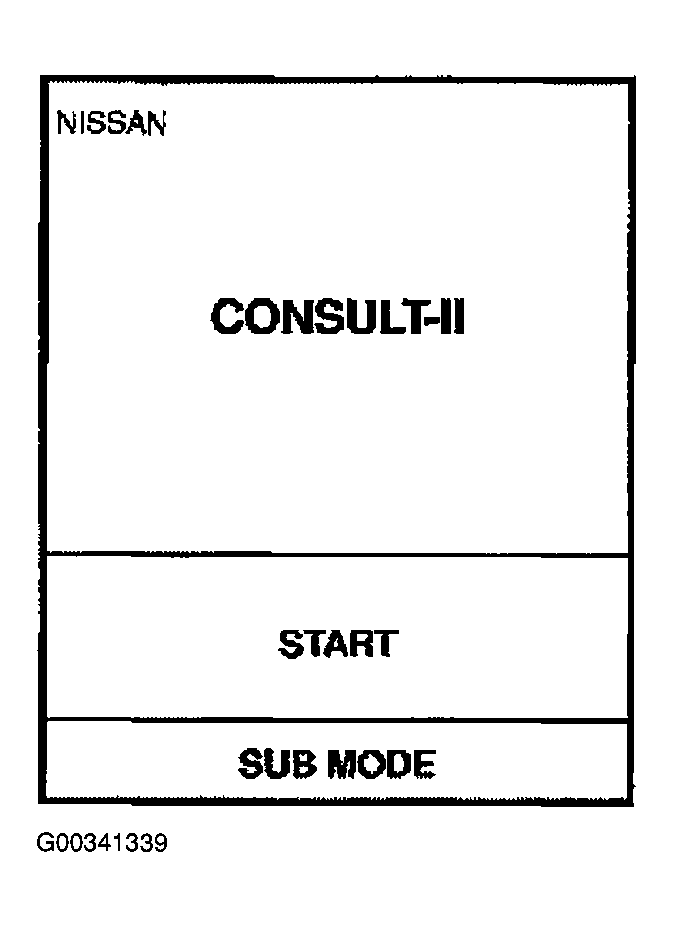

Fig 2: CONSULT-II Display - Touch "START"
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "OTHER"

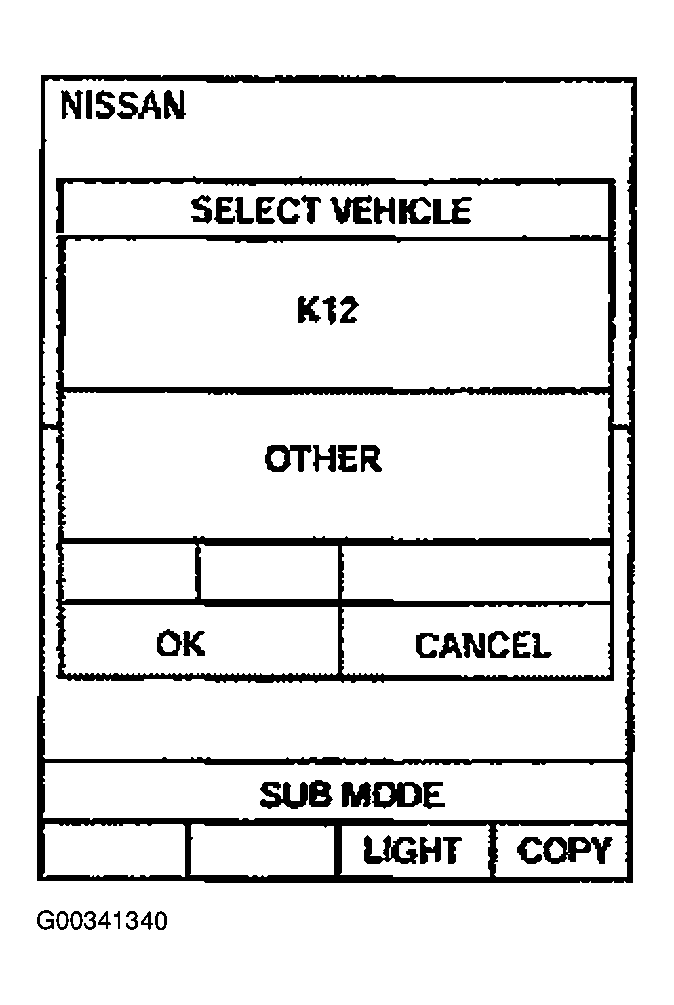

Fig 3: CONSULT-II Display - Touch "OTHER"
Courtesy of NISSAN MOTOR CO., U.S.A.
Select "NATS V.5.0".
If "NATS V5.0" is not indicated, go to CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT .

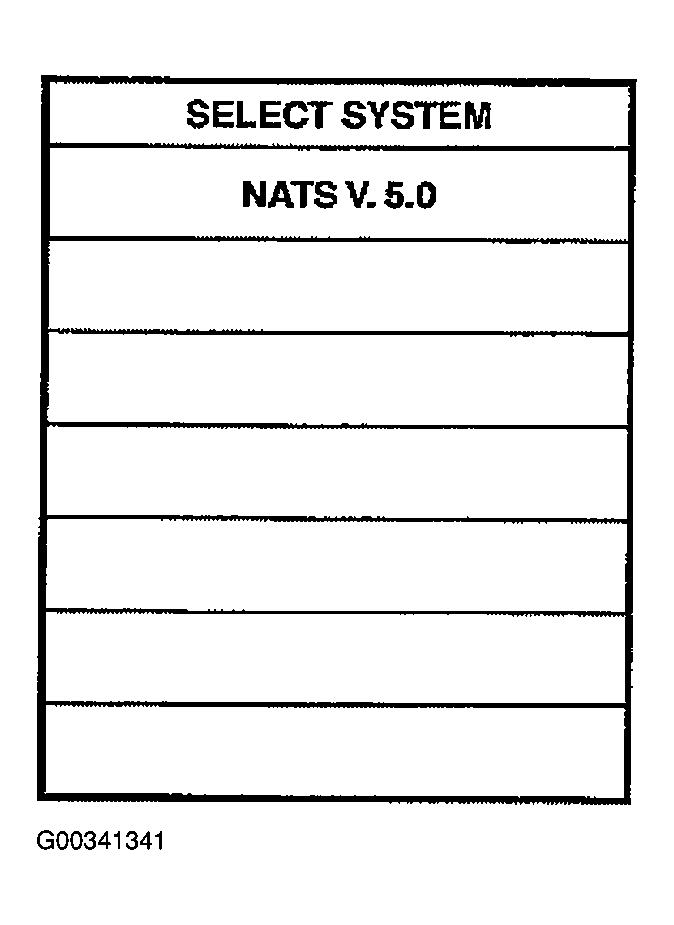

Fig 4: CONSULT-II Display - Select "NATS V.5.0" Mode
Courtesy of NISSAN MOTOR CO., U.S.A.
Perform each diagnostic test mode according to each service procedure.

For further information, see the CONSULT-II Operation Manual for NATS-IVIS/NVIS.

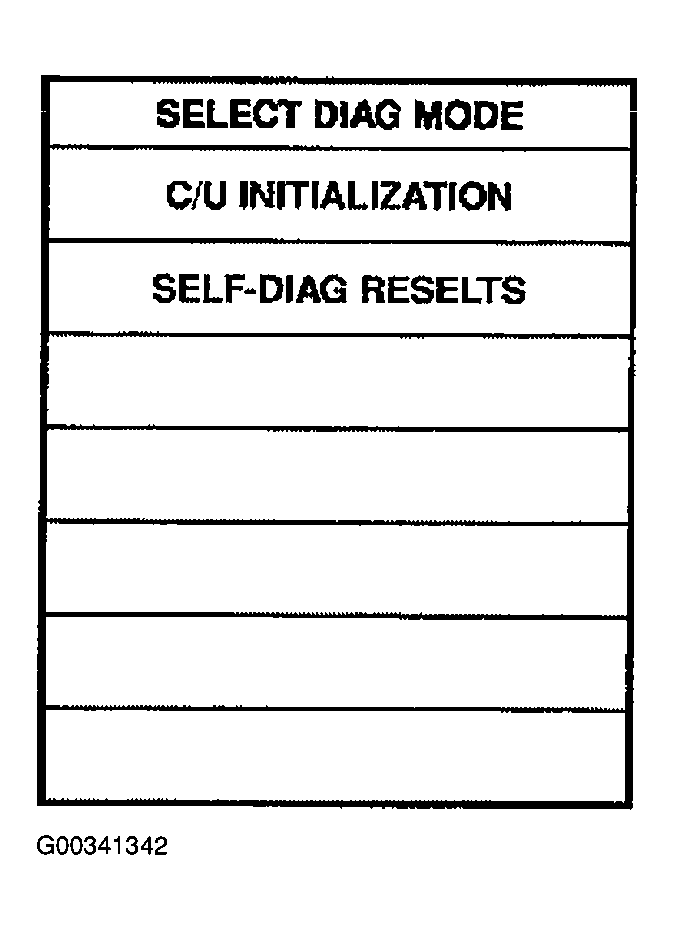

Fig 5: CONSULT-II Display - Self Diagnostic Mode
