3. Check Door Switches

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Check continuity between door switch connector terminals 1, 2 and ground part of door switch.

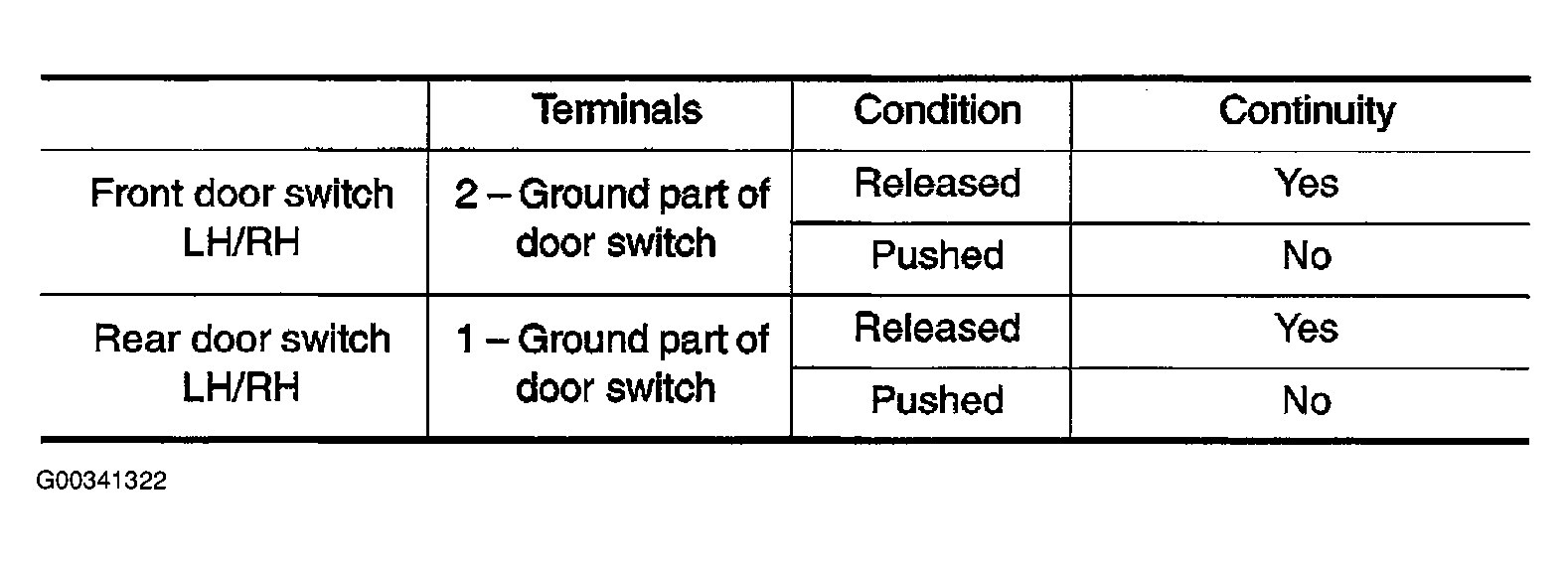

Fig 1: Terminals Continuity Specifications (Front & Rear Door)

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK >> GO TO 4
NG >> Replace door switch.

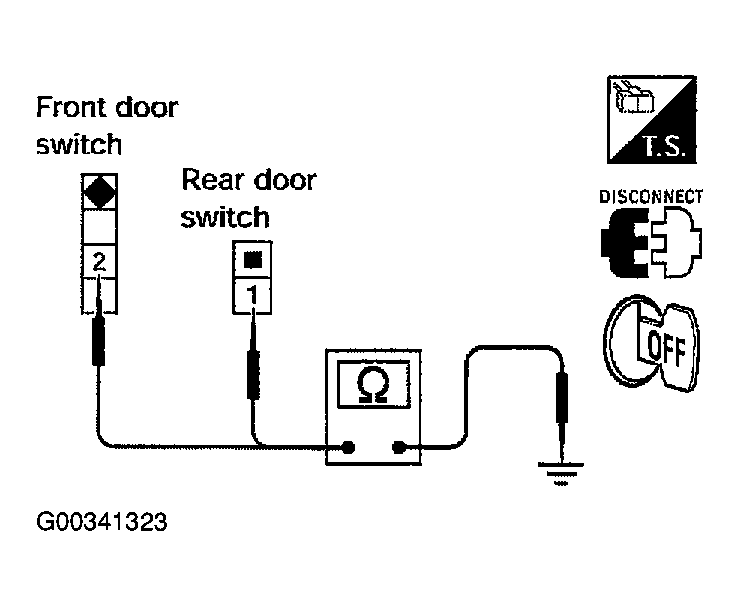

Fig 2: Checking Continuity Between Door Switch Connector Terminals 1, 2 & Ground

Courtesy of NISSAN MOTOR CO., U.S.A.
