Ground Circuit Inspection

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Check continuity between BCM vehicle-side connector and body ground.

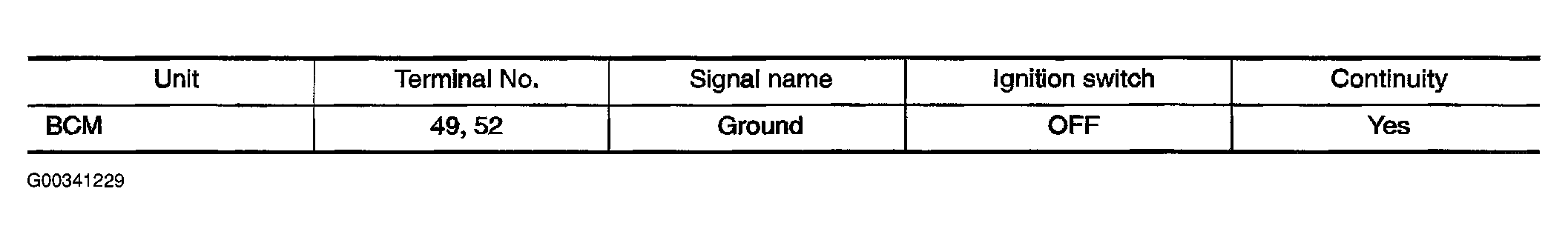

Fig 1: BCM Voltage Specifications (Ground Circuit)

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK >> Power supply and ground circuits are normal.
NG >> Repair or replace harness.
