WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

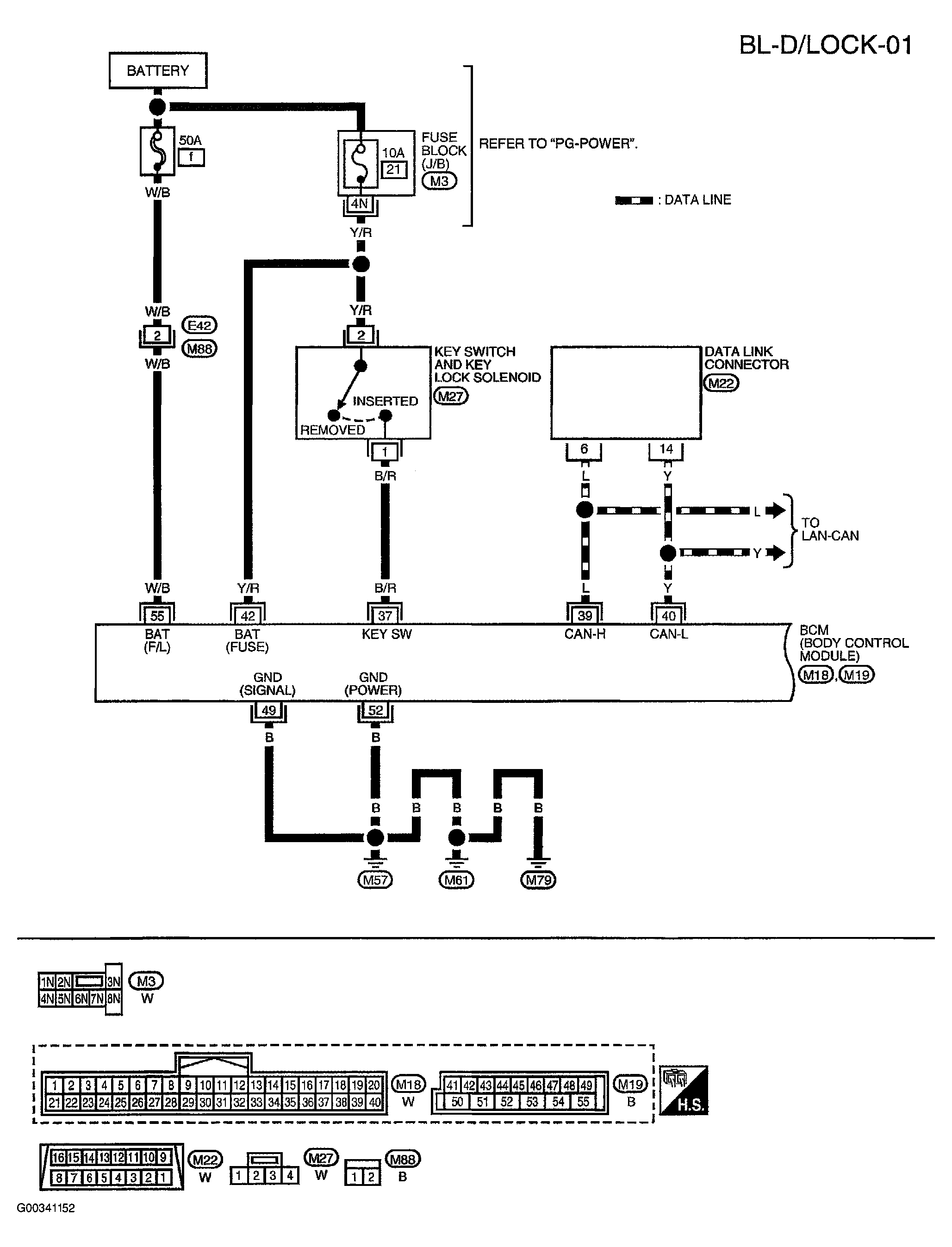

Fig 1: Power Door Lock System Wiring Diagram And Identifying Connectors (1 Of 4) - BL-D/LOCK-01
Courtesy of NISSAN MOTOR CO., U.S.A.

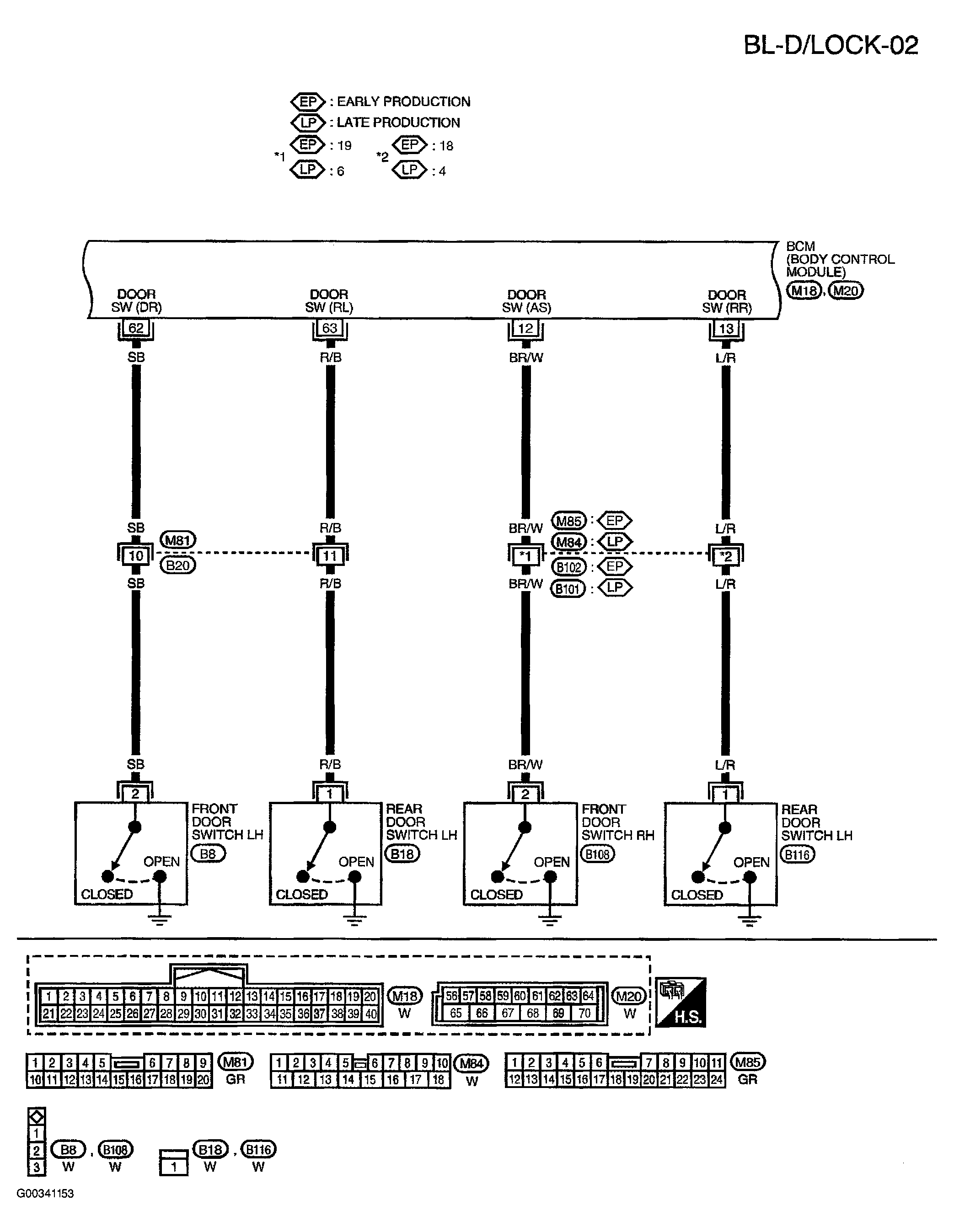

Fig 2: Power Door Lock System Wiring Diagram And Identifying Connectors (2 Of 4) - BL-D/LOCK-02
Courtesy of NISSAN MOTOR CO., U.S.A.

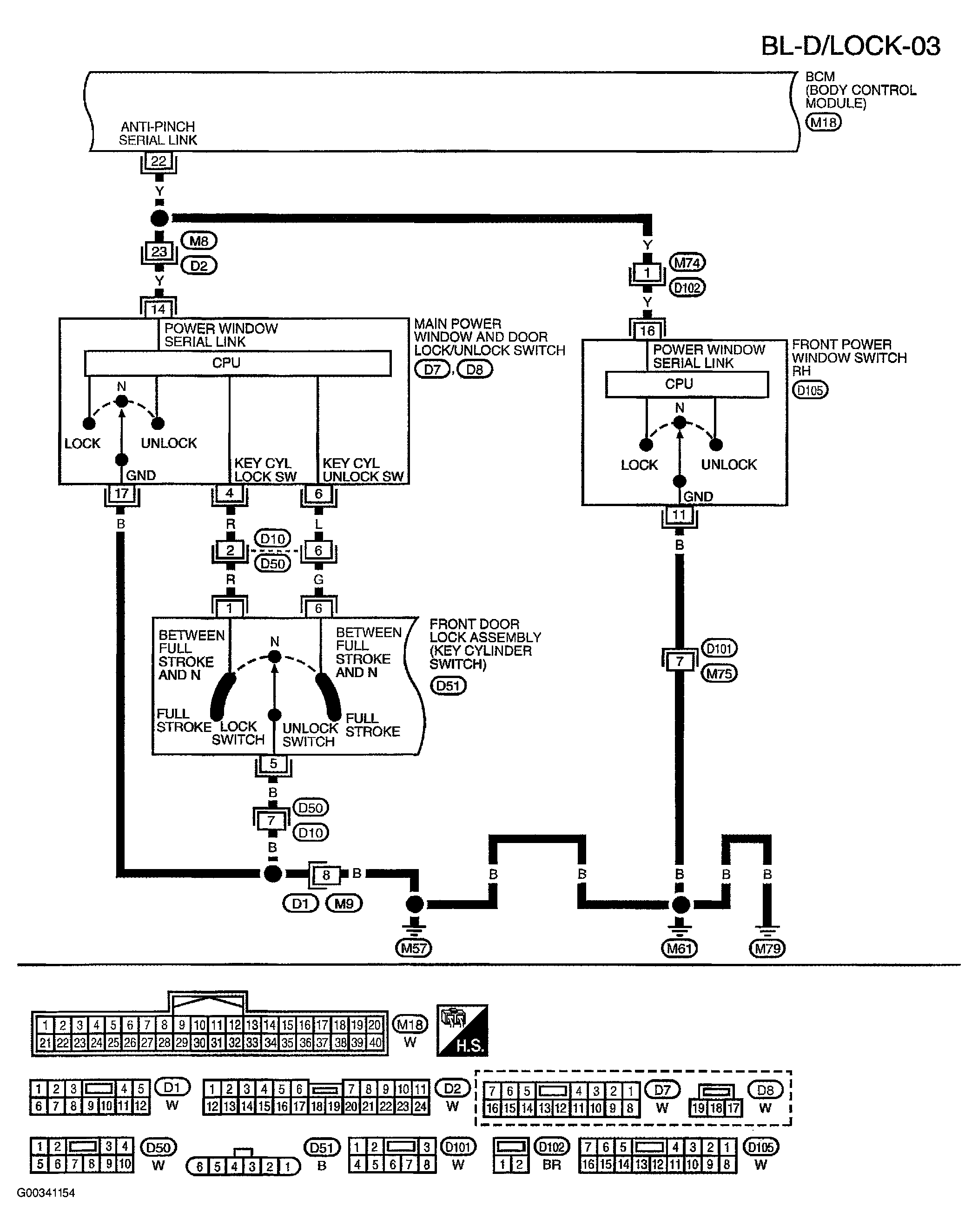

Fig 3: Power Door Lock System Wiring Diagram And Identifying Connectors (3 Of 4) - BL-D/LOCK-03
Courtesy of NISSAN MOTOR CO., U.S.A.

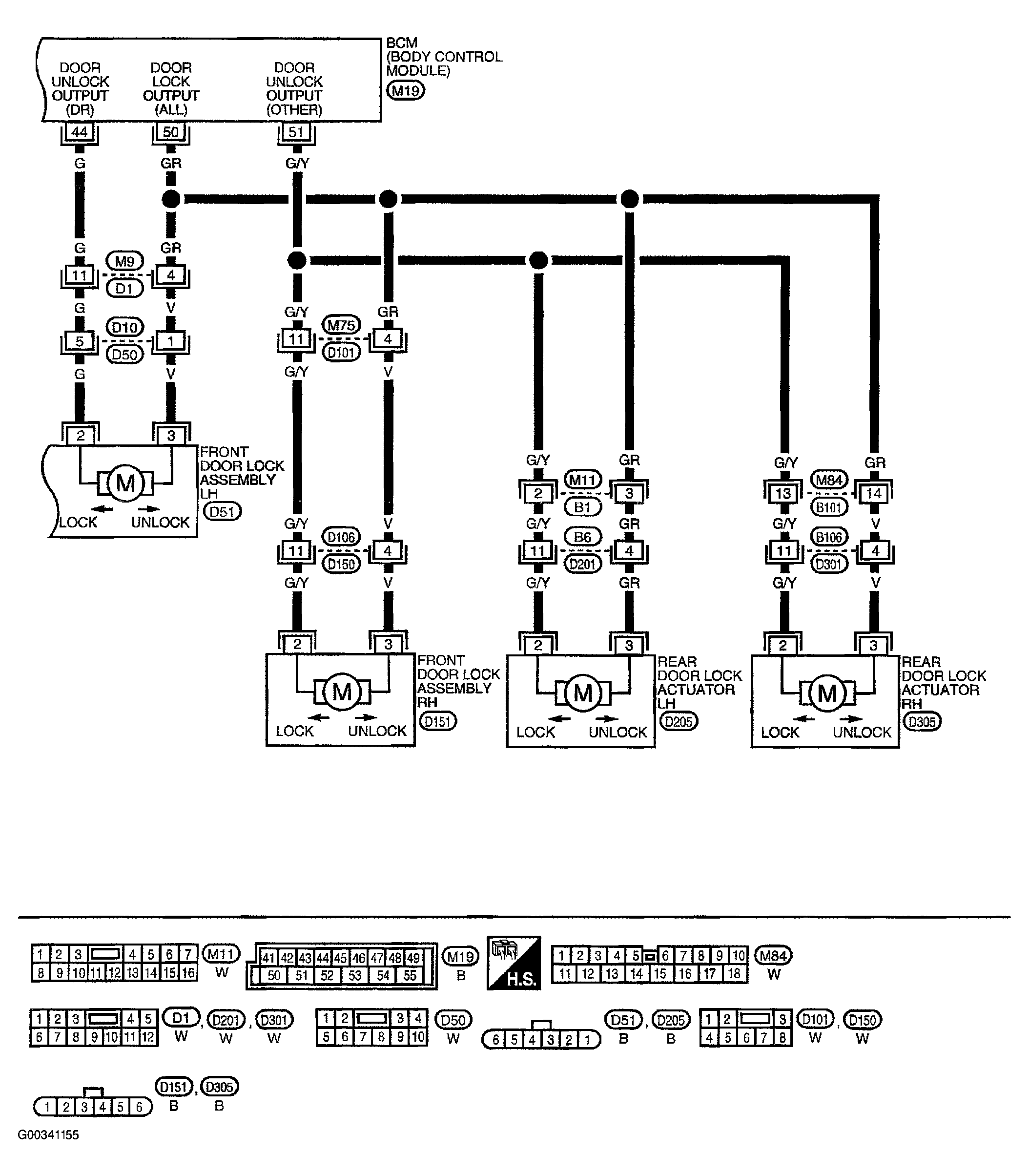

Fig 4: Power Door Lock System Wiring Diagram And Identifying Connectors (4 Of 4) - BL-D/LOCK-04
