Check Door Switches

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

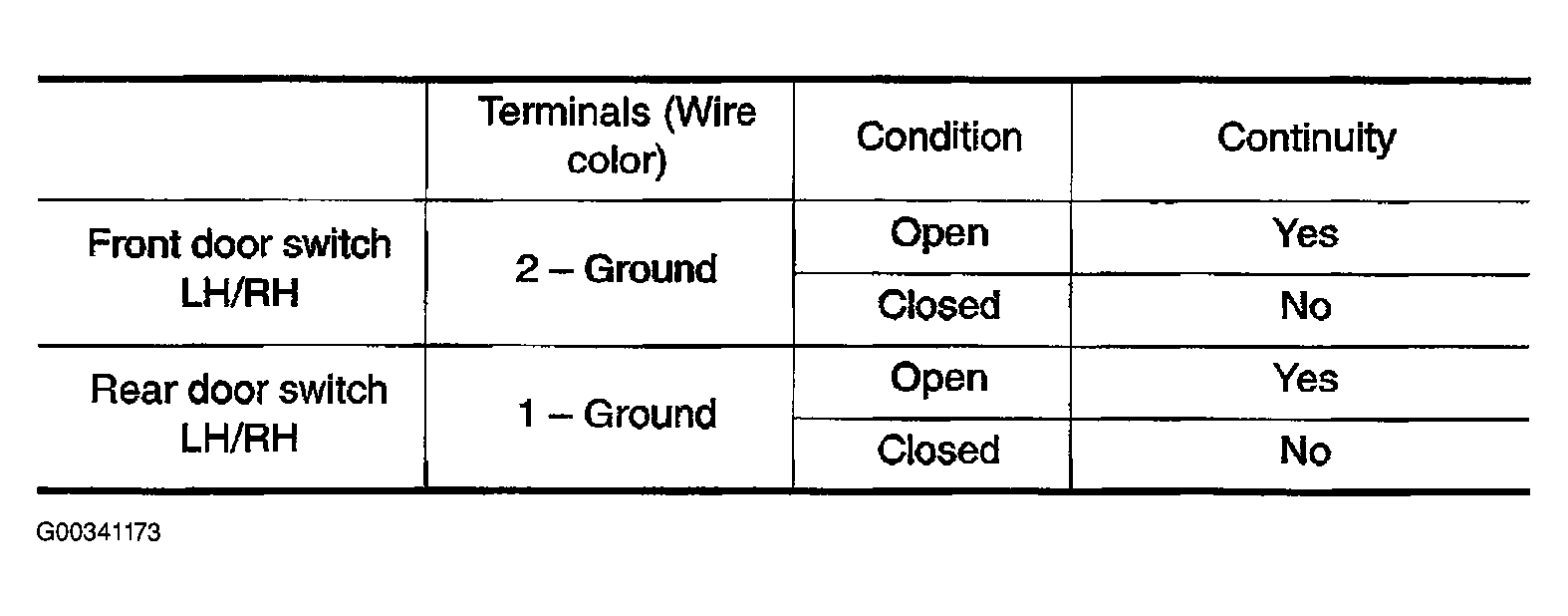

Fig 1: Door Switch Terminals Continuity Specifications (Right & Left)
G00341173Courtesy of NISSAN MOTOR CO., U.S.A.

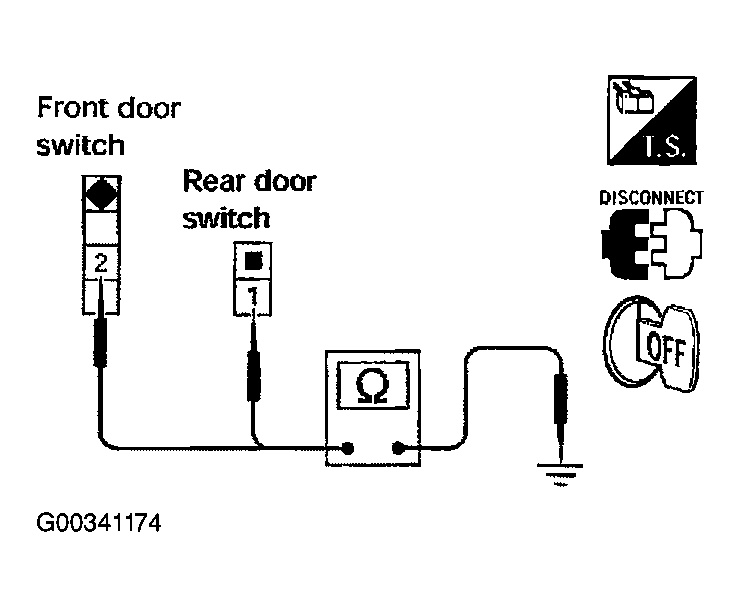

Fig 2: Checking Continuity Between Door Switch Connector Terminals
G00341174Courtesy of NISSAN MOTOR CO., U.S.A.
