Check Ground Circuit

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Check continuity between BCM connector M19 terminals 49, 52 and ground.

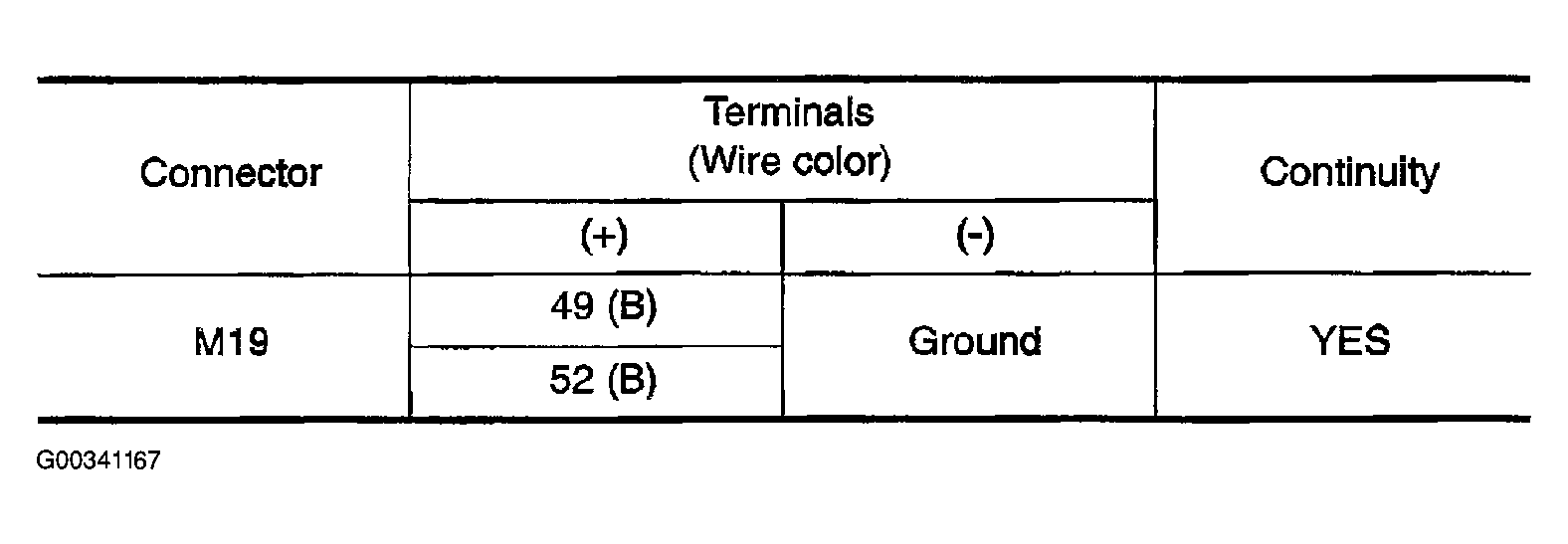

Fig 1: Connector Terminals Continuity Specifications (M 19)

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK >> Power supply and ground circuit is OK.
NG >> Repair or replace harness.

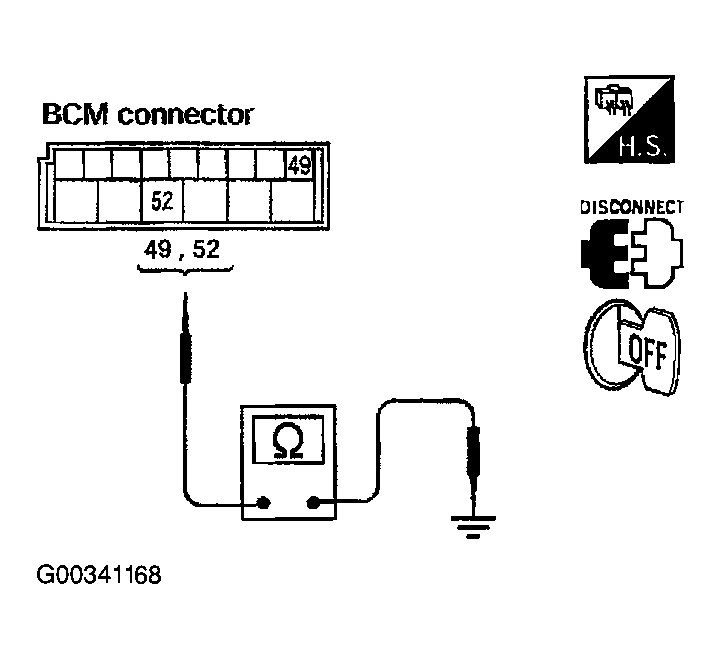

Fig 2: Checking Continuity Between BCM Connector M19 Terminals 49, 52 & Ground

Courtesy of NISSAN MOTOR CO., U.S.A.
