Check Fuse

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Check the following BCM fuse and fusible link.

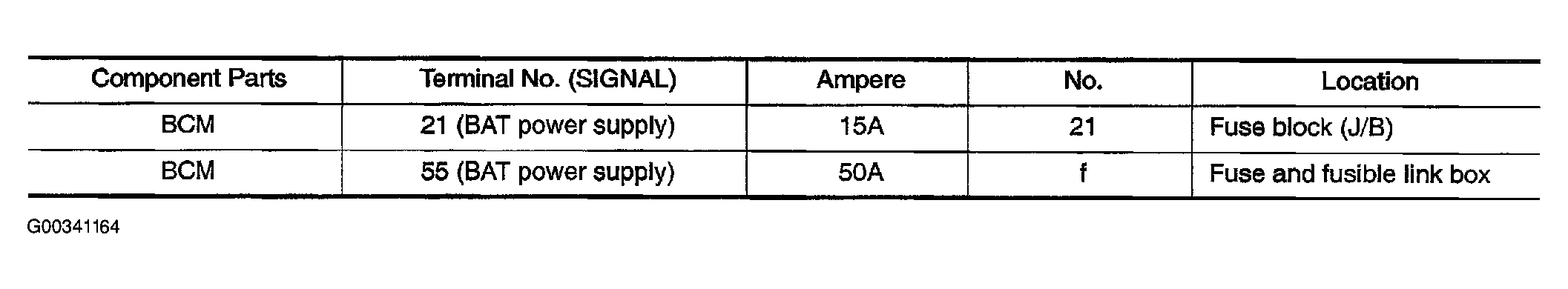

Fig 1: BCM Fuse And Fusible Link Condition Descriptions

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: Refer to "Component Parts and Harness Connector Location .

OK or NG

OK >> GO TO 2
NG >> If fuse is blown, be sure to eliminate cause of problem before installing new fuse, refer to "POWER SUPPLY ROUTING CIRCUIT .
