Removal and Installation of Hood Assembly

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

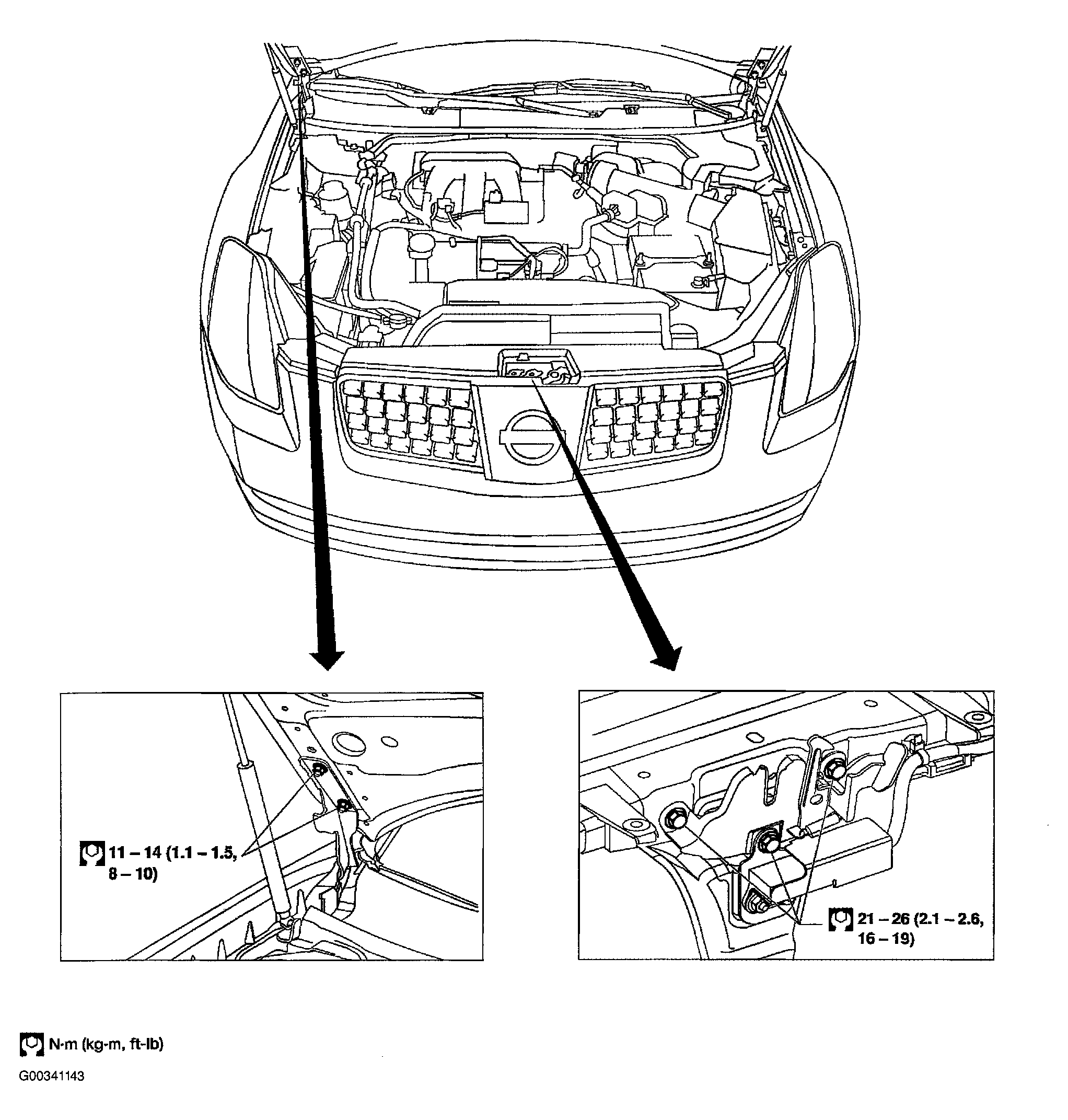

Fig 1: Removing Hood Latch And Stopper Screws
G00341143Courtesy of NISSAN MOTOR CO., U.S.A.
  1. Remove the hinge mounting nuts on the hood to remove the hood assembly.

Install in the reverse order of removal.

NOTE: Align the hood. Fitting Adjustment ".
