Removal Of Seat Belt Retractor

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the adjuster cover on the seat belt anchor.
  2. Remove the anchor bolts.
  3. Remove the center pillar upper/lower garnish. Refer to Removal and Installation .
  4. Remove the anchor bolt.

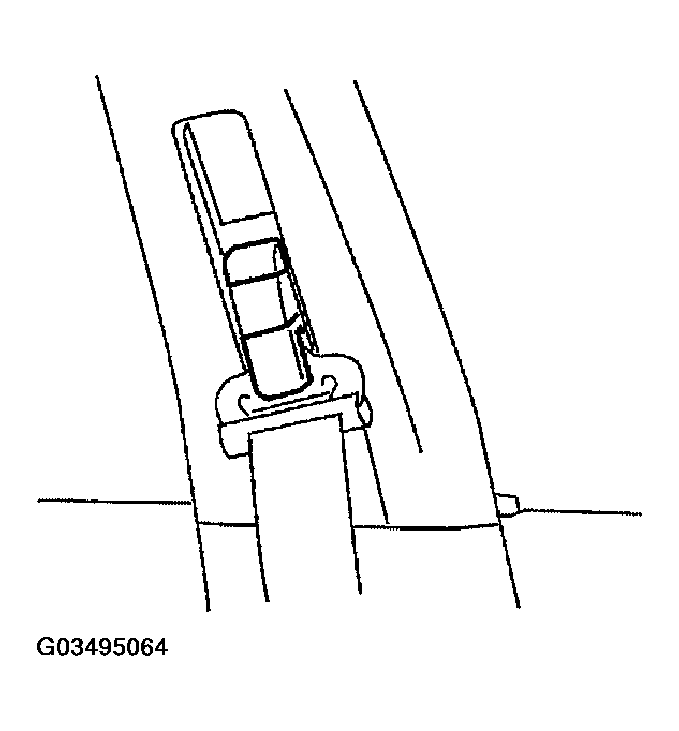

    Fig 1: Removing Center Pillar Upper/Lower Garnish
    G03495064Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Disconnect the seat belt pre-tensioner connector.
  6. Remove the seat belt pre-tensioner retractor fixing screw, anchor bolt, and then remove the seat belt retractor.

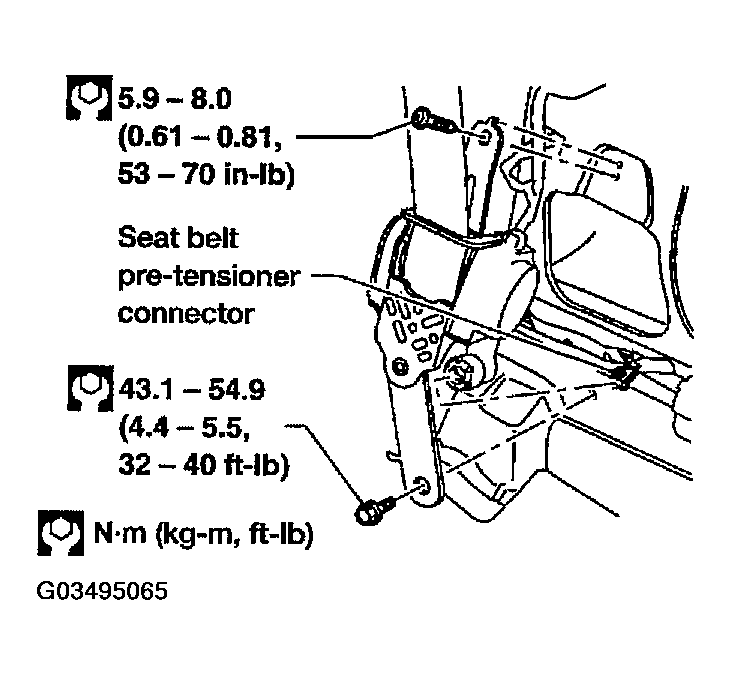

    Fig 2: Removing Seat Belt Retractor - With Torque Specifications
    G03495065Courtesy of NISSAN MOTOR CO., U.S.A.
