Removal Of Seat Belt Buckle

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front seat. Refer to REMOVAL AND INSTALLATION .
  2. Remove the screws, and remove the inner seat cushion finisher.
  3. Remove the anchor bolt, and remove the buckle.

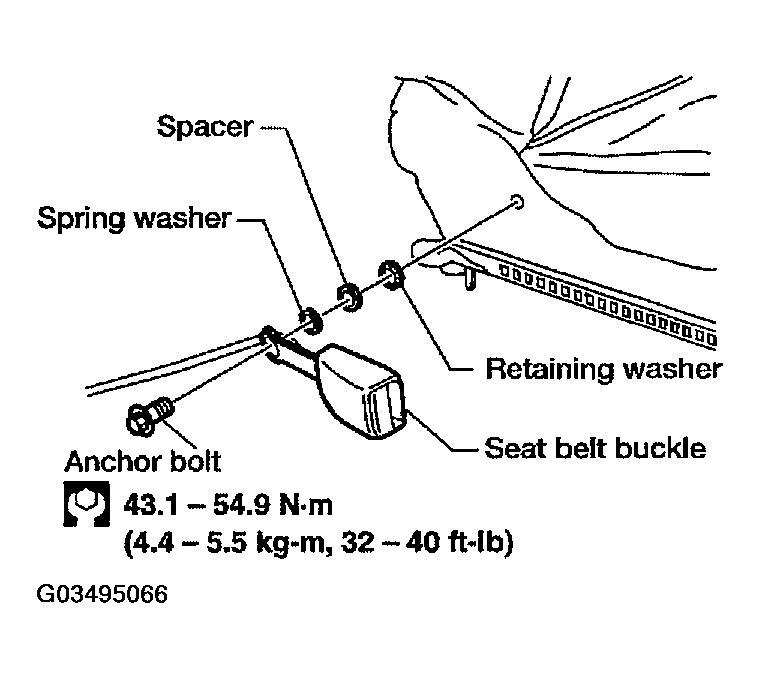

    Fig 1: Removing Buckle - With Torque Specifications
    G03495066Courtesy of NISSAN MOTOR CO., U.S.A.
