Inspection Procedure

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

PERFORM SELF-DIAGNOSIS
Perform ABS actuator and electric unit (control unit) self-diagnosis.

Is "CAN COMM CIRCUIT" displayed in the self-diagnosis display items?
1. Yes >> Print out the self-diagnosis results and go to 2.
2. No >> INSPECTION END.
CONNECTOR INSPECTION
Disconnect the ABS actuator and electric unit connector E125.

Check the terminals for deformation, disconnection, looseness or damage.

OK or NG
1. OK >> GO TO 3.
2. NG >> Repair or replace as necessary.
CAN COMMUNICATION SYSTEM CHECK
Check the data monitor item "CAN Diagnosis Support Monitor".

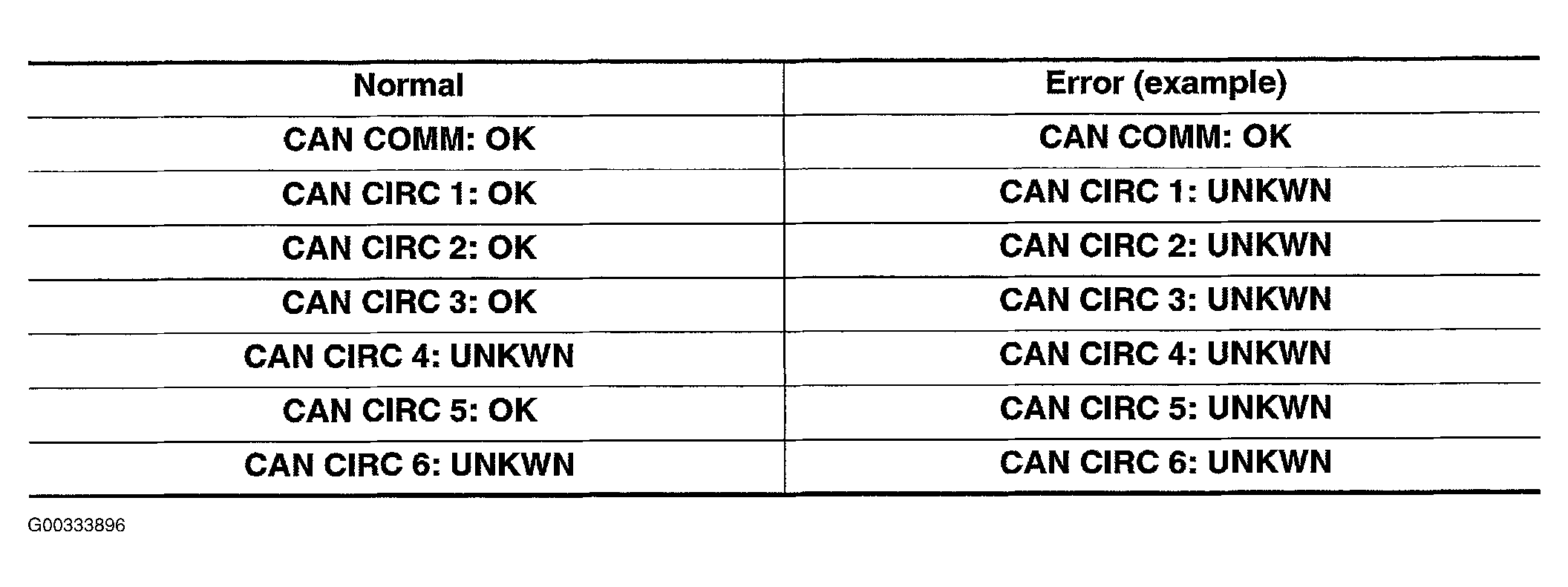

Fig 1: Checking Can Communication System
Courtesy of NISSAN MOTOR CO., U.S.A.
1. >> After printing out the monitor items, go to CAN system. Refer to CAN COMMUNICATION . .
