Inspection Procedure

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

SELF-DIAGNOSIS RESULT CHECK
Check self-diagnosis results.

Self-diagnosis results

STOP LAMP SW

Is the above displayed in the self-diagnosis display items?
1. Yes >> GO TO 2.
2. No >> INSPECTION END.
CONNECTOR INSPECTION
1. Disconnect the ABS actuator and electric unit connector E125 and stop lamp switch connector E38.
2. Check the terminals for deformation, disconnection, looseness or damage.
OK or NG
1. OK >> GO TO 3.
2. NG >> Repair or replace as necessary.
STOP LAMP SWITCH INSPECTION
Turn the ignition switch on and check the voltage between the ABS actuator and electric unit connector E125 terminal 17 (R/G) and ground.
1. 17 (R/G) - Ground
  1. Brake pedal depressed : Battery voltage (approx. 12V)
  2. Brake pedal not depressed : Approx. 0V
OK or NG
1. OK >> Connect the connectors and conduct ABS actuator and electric unit self-diagnosis.
2. NG >> Repair the circuit.

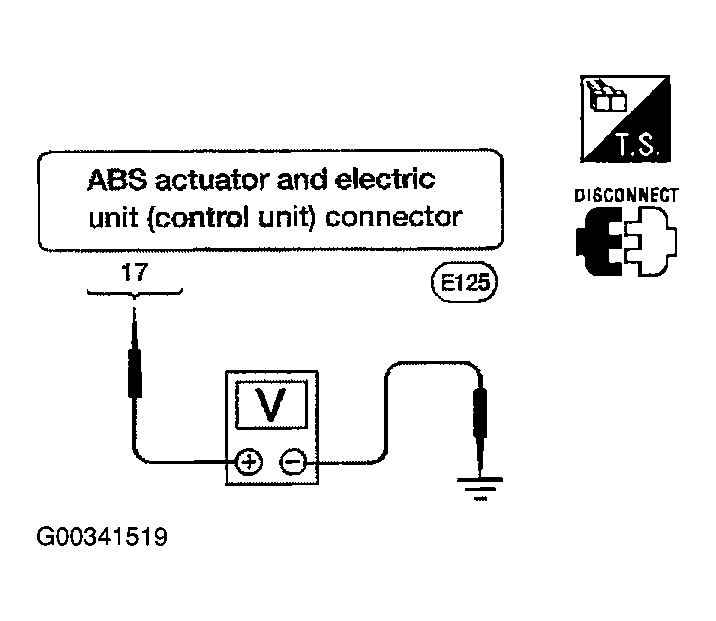

Fig 1: Checking Stop Lamp Switch
Courtesy of NISSAN MOTOR CO., U.S.A.
