Inspection Procedure

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

PERFORM SELF-DIAGNOSIS
Perform ABS actuator and electric unit (control unit) self-diagnosis.

Is "CAN COMM CIRCUIT" displayed in the self-diagnosis display items?
1. Yes >> Print out the self-diagnosis results and go to 2.
2. No >> INSPECTION END.
CONNECTOR INSPECTION
1. Turn the ignition switch off and disconnect the ABS actuator and electric unit connector E125.
2. Check the terminals for deformation, disconnection, looseness or damage.
OK or NG
1. OK >> GO TO 3.
2. NG >> Repair or replace as necessary.
CAN COMMUNICATION SYSTEM CHECK
Check the data monitor item "CAN Diagnosis Support Monitor".

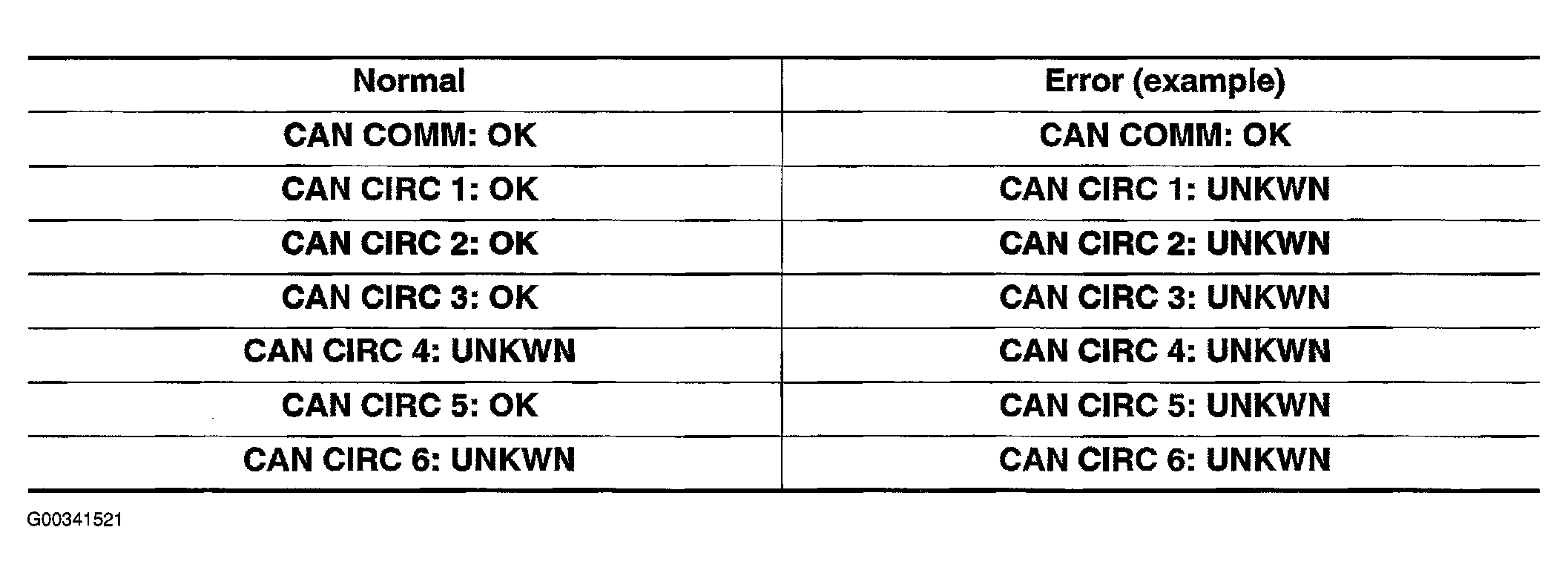

Fig 1: Checking CAN Communication System
Courtesy of NISSAN MOTOR CO., U.S.A.
1. >> After printing out the monitor items, go to CAN system. Refer to CAN COMMUNICATION .
