Generator and air conditioner compressor belt

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove engine undercover.
  2. Loosen idler pulley lock nut "A" and adjust by turning adjusting bolt "B".
    • For specified belt tension, refer to , "Drive Belts ".
  3. Tighten lock nut "A".
    1. Lock nut "A": 25.5 - 32.4 N.m (2.6 - 3.3 kg-m, 19-23 ft-lb)
  4. Tighten adjusting bolt "B".
    1. Adjusting bolt "B": 3.9 - 6.9 N.m (0.4 - 0.7 kg-m, 35 - 61 in-lb)

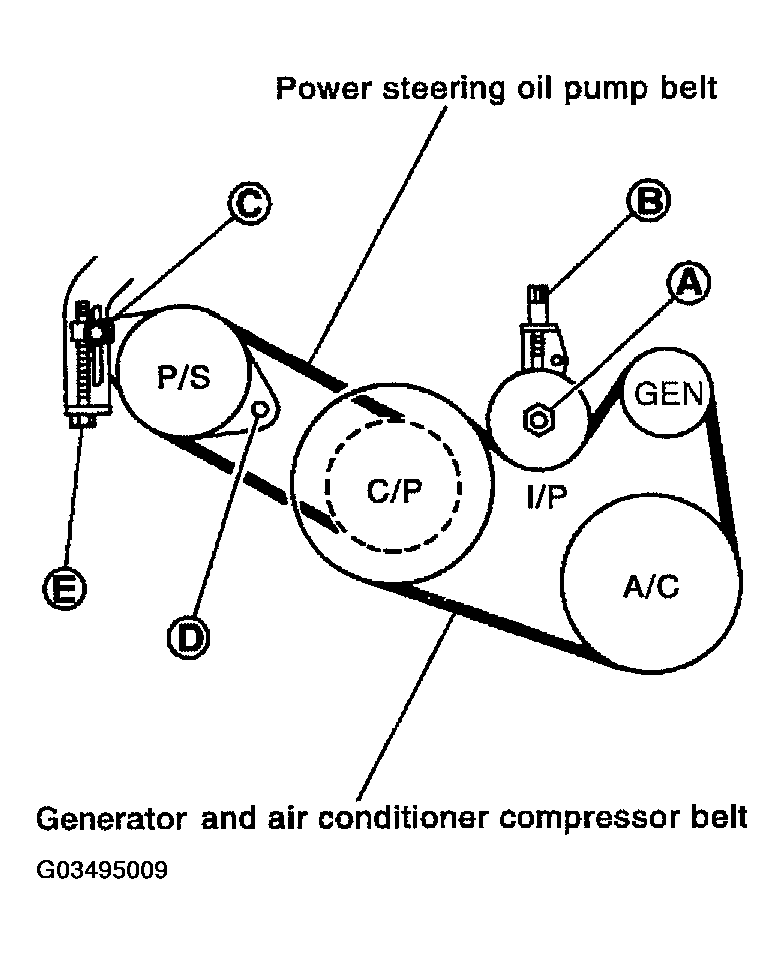

    Fig 1: Loosening Idler Pulley Lock Nut And Adjust By Turning Adjusting Bolt
    G03495009Courtesy of NISSAN MOTOR CO., U.S.A.
