Checking Power Steering Fluid and Lines

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Check the power steering fluid level in the reservoir tank with the engine off.

Use the "HOT" range at fluid temperatures of 50° - 80°C (122° - 176°F) or the "COLD" range at fluid temperatures of 0° - 30°C (32° -86°F).

CAUTION:

Do not overfill the power steering reservoir tank.
Use the recommended power steering fluid, Genuine NISSAN PSF or equivalent. Refer to "RECOMMENDED FLUIDS AND LUBRICANTS ".

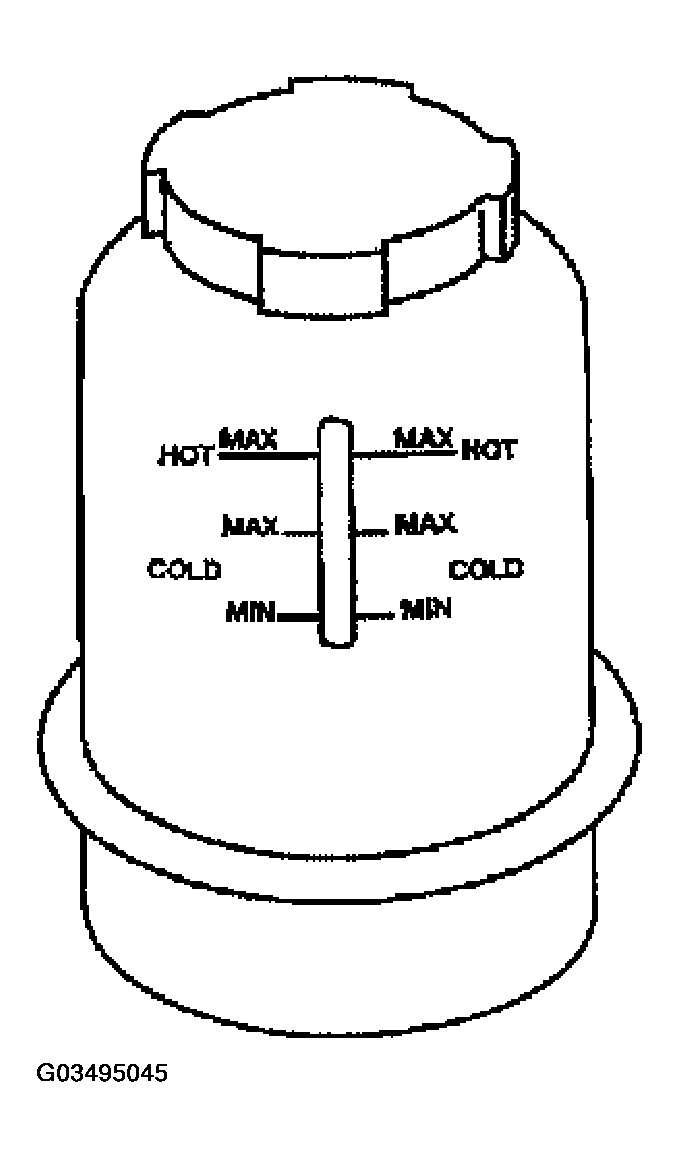

Fig 1: Checking Power Steering Fluid Level In Reservoir Tank

Courtesy of NISSAN MOTOR CO., U.S.A.

Check the power steering hoses for improper attachment, leaks, cracks, damage, loose connections, chafing and deterioration.

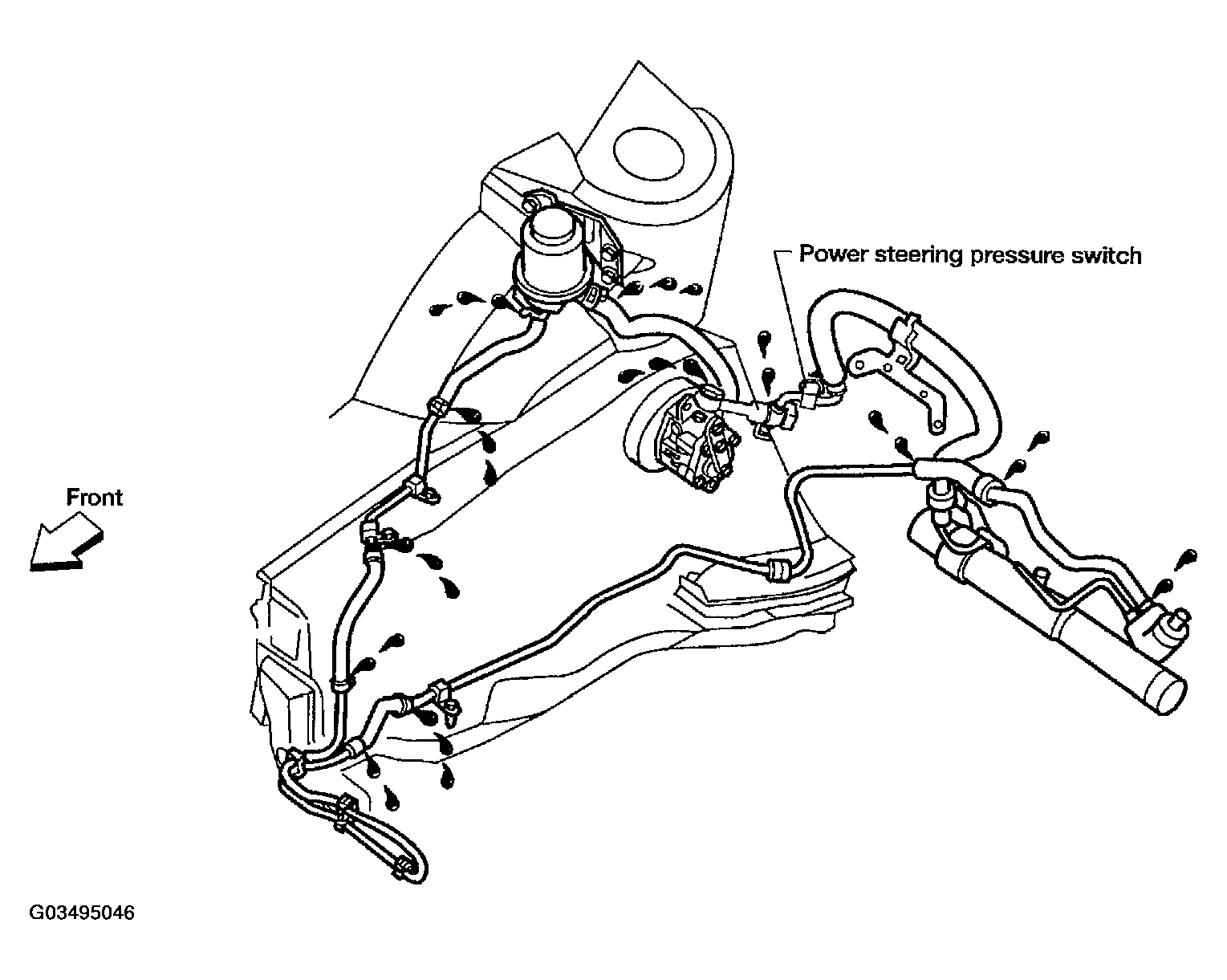

Fig 2: Checking Power Steering Hoses For Improper Attachment
Courtesy of NISSAN MOTOR CO., U.S.A.
Check the steering rack boots for accumulation of power steering fluid indicating an internal leak.
