Changing M/T Oil

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drain the MTF by removing the drain plug.
  2. Install the drain plug using a new washer.
    1. Drain plug: 30 - 39 N.m (3.1 - 4.0 kg-m, 23 - 28 ft-lb)
  3. Remove the filler plug and fill the transaxle with new MTF through the filler plug hole. Check the MTF level as shown.
    1. Manual Transmission Fluid specification  . Refer to M/T OIL .
    2. Capacity (RS6F51A & RS6F51A) : 2.3 l (2 3/8 US qt, 2 Imp qt)
  4. Install the filler plug using a new washer.
    1. Filler plug: 30 - 39 N.m (3.1 - 4.0 kg-m, 23 - 28 ft-lb)

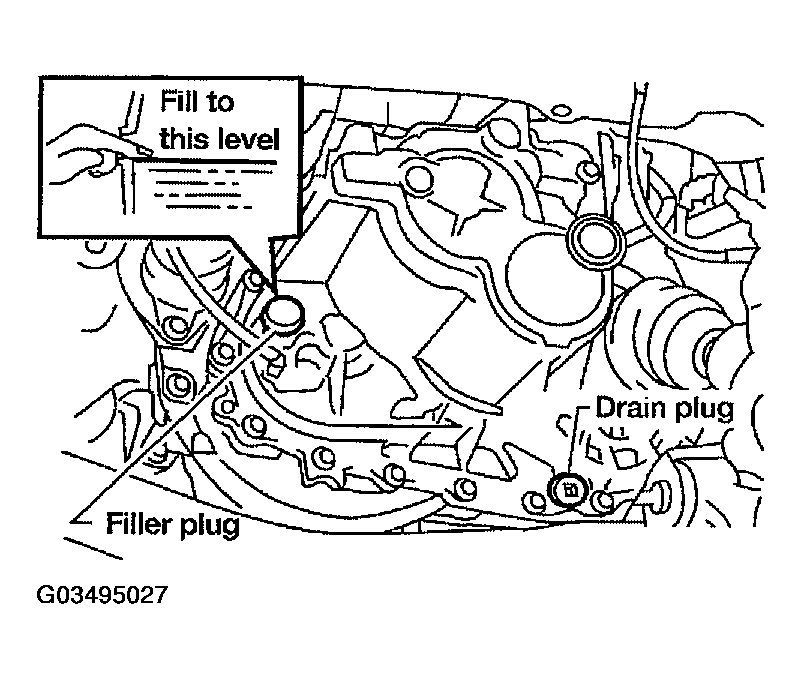

    Fig 1: Installing Filler Plug Using New Washer
    G03495027Courtesy of NISSAN MOTOR CO., U.S.A.
