Axle and Suspension Parts

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Check the front and rear axle and suspension parts for excessive play, cracks, wear, or other damage.

Shake each wheel as shown to check for excessive play.
Rotate each wheel to check for abnormal noise.

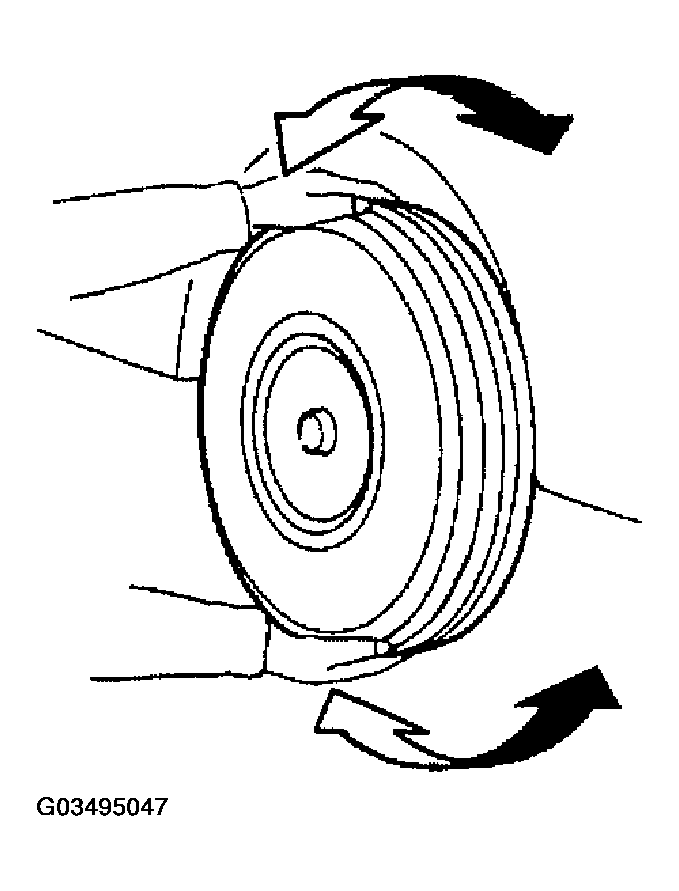

Fig 1: Checking Front And Rear Axle And Suspension Parts For Excessive Play
Courtesy of NISSAN MOTOR CO., U.S.A.
Check the strut mount nuts for looseness.

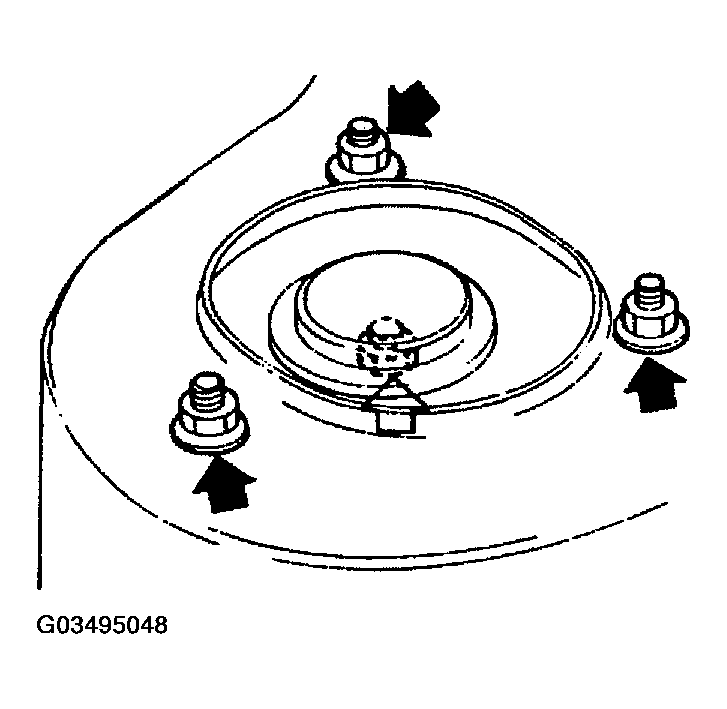

Fig 2: Checking Strut Mount Nuts For Looseness
Courtesy of NISSAN MOTOR CO., U.S.A.
Check the axle and suspension nuts and bolts for looseness.

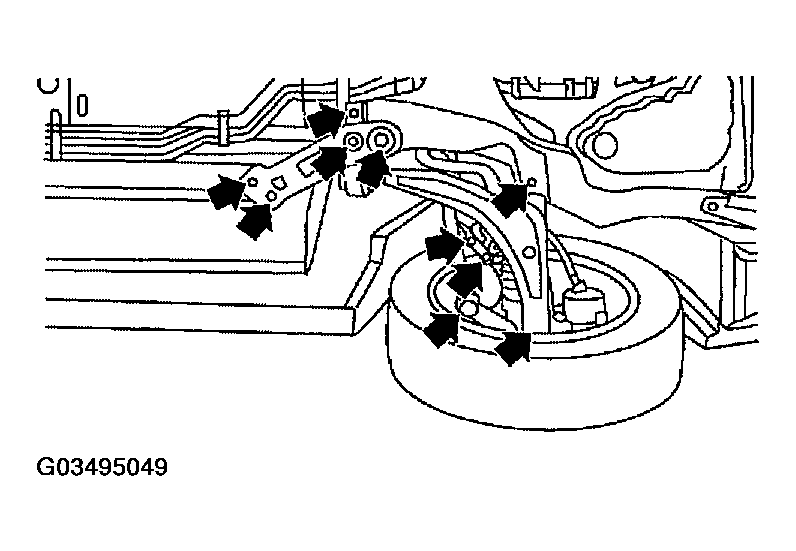

Fig 3: Checking Axle And Suspension Nuts And Bolts
Courtesy of NISSAN MOTOR CO., U.S.A.
Check the struts for oil leakage or other damage.
Check suspension ball joint for grease leakage and ball joint dust cover for cracks or other damage.

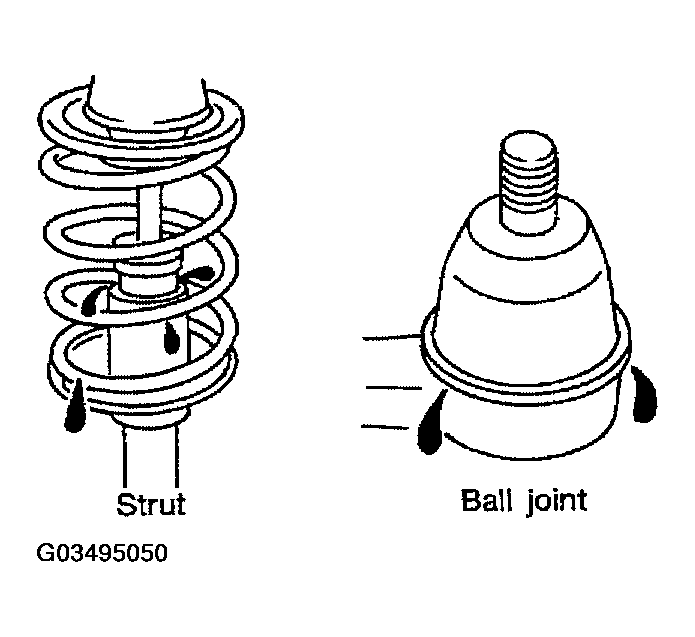

Fig 4: Checking Suspension Ball Joint For Grease Leakage And Ball Joint Dust Cover
Courtesy of NISSAN MOTOR CO., U.S.A.
