Garage Jack and Safety Stand

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
  • Park the vehicle on a level surface when using the jack. Make sure to avoid damaging pipes, tubes, etc. under the vehicle.
  • Never get under the vehicle while it is supported only by the jack. Always use safety stands when you have to get under the vehicle.
  • Place wheel chocks at both front and back of the wheels on the ground.
  • Lift at reinforced area of front suspension member where lower control arm attaches, staying in center line of wheels.

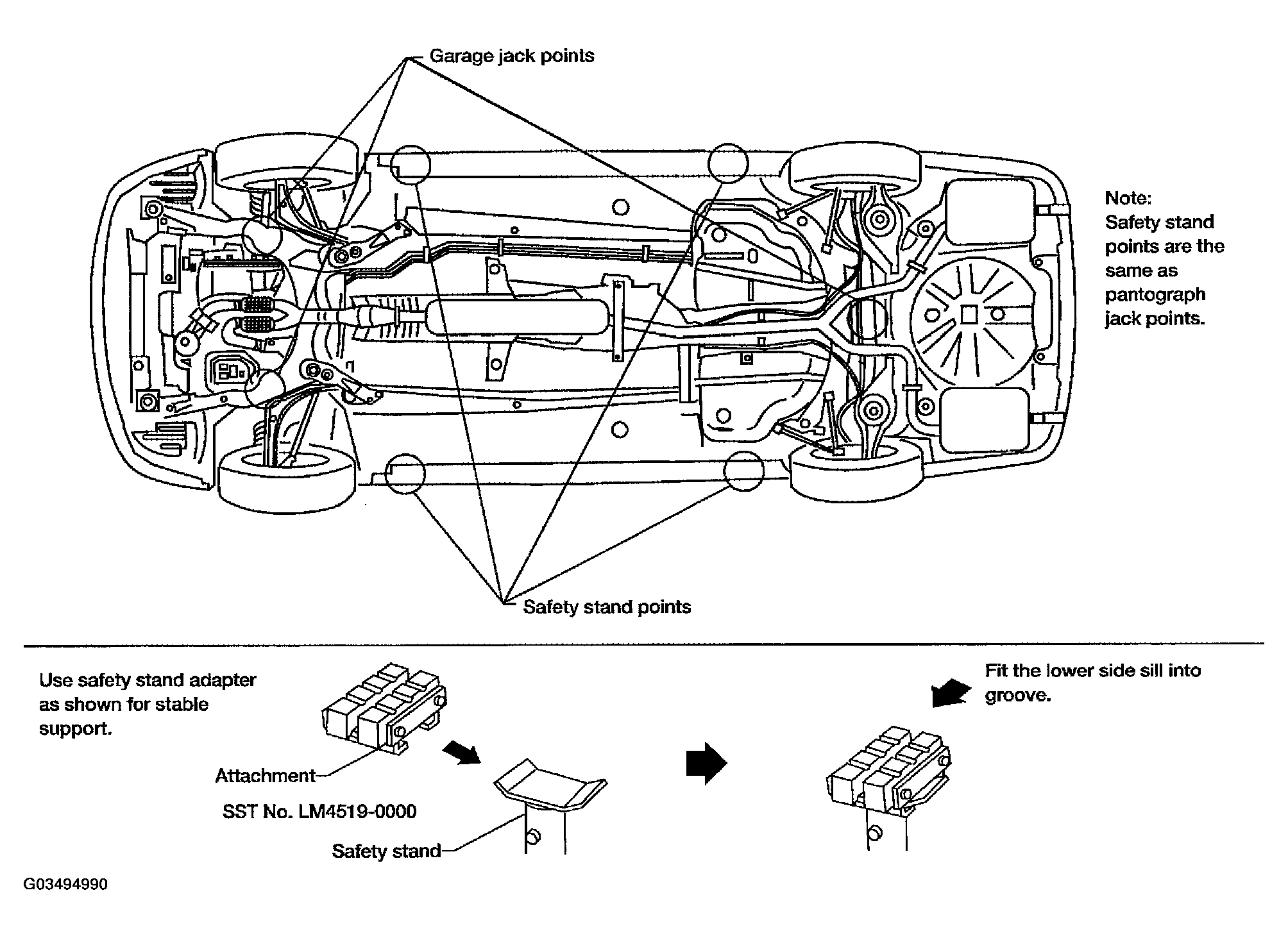

Fig 1: Identifying Safety Stand Point
G03494990Courtesy of NISSAN MOTOR CO., U.S.A.
