How To Follow Test Groups In Trouble Diagnoses
WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
- Work and diagnostic procedure
Start to diagnose a problem using procedures indicated in enclosed test groups.
- Questions and required results
Questions and required results are indicated in bold type in test group. The meaning of are as follows:
- Battery voltage --> 11 - 14V or approximately 12V
- Voltage: Approximately OV --> Less than 1V
- Symbol used in illustration

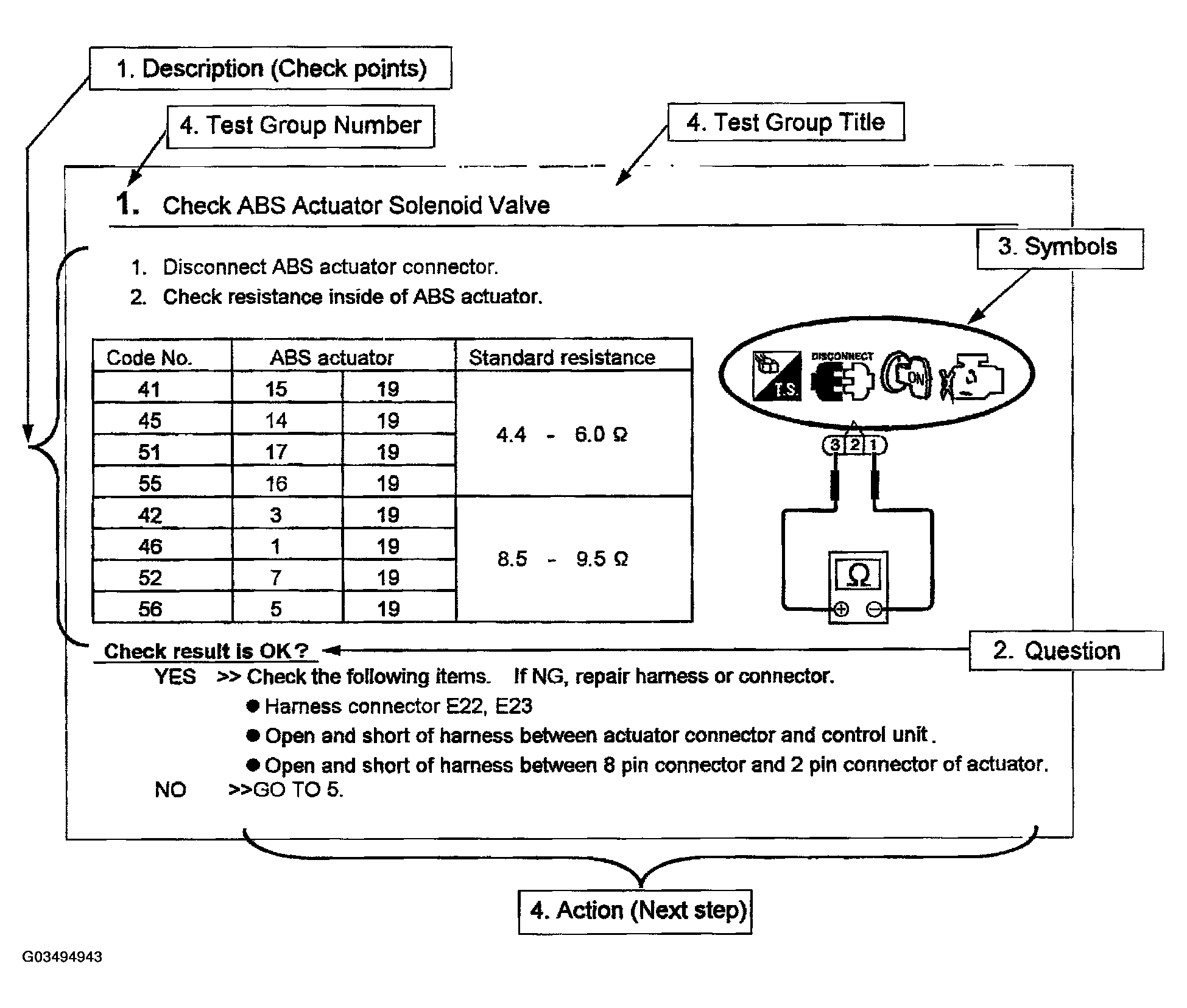

Symbols included in illustrations refer to measurements or procedures. Before diagnosing a problem, familiarize yourself with each symbol. Refer to "CONNECTOR SYMBOLS " in GI Section and "KEY TO SYMBOLS SIGNIFYING MEASUREMENTS OR PROCEDURES " below.
- Action items
Next action for each test group is indicated based on result of each question. Test group number is shown in the left upper portion of each test group.
