Removal and Installation: Removal

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front bumper.
  2. Disconnect horn connector.
  3. Remove horn bolt and remove horn from vehicle.

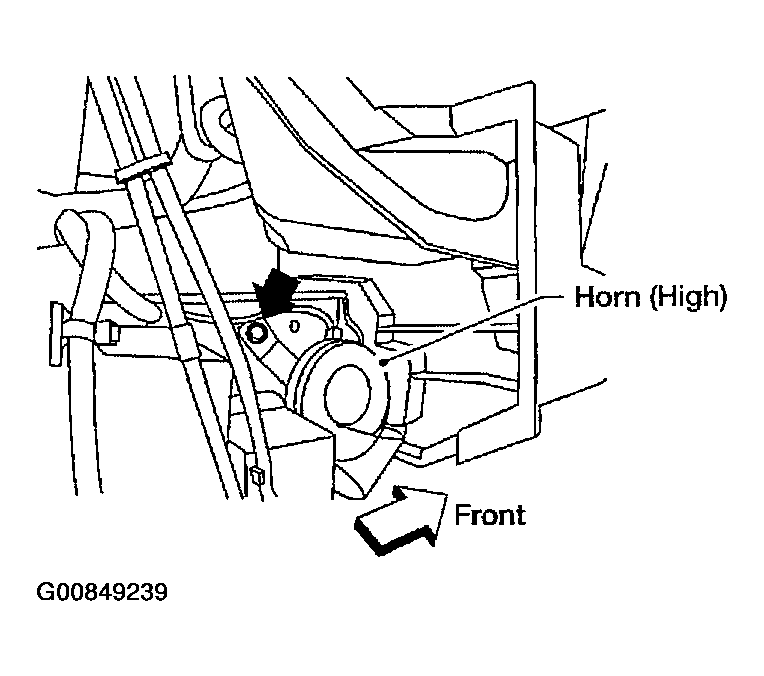

    Fig 1: Removing Horn Bolt (High)
    G00849239Courtesy of NISSAN MOTOR CO., U.S.A.

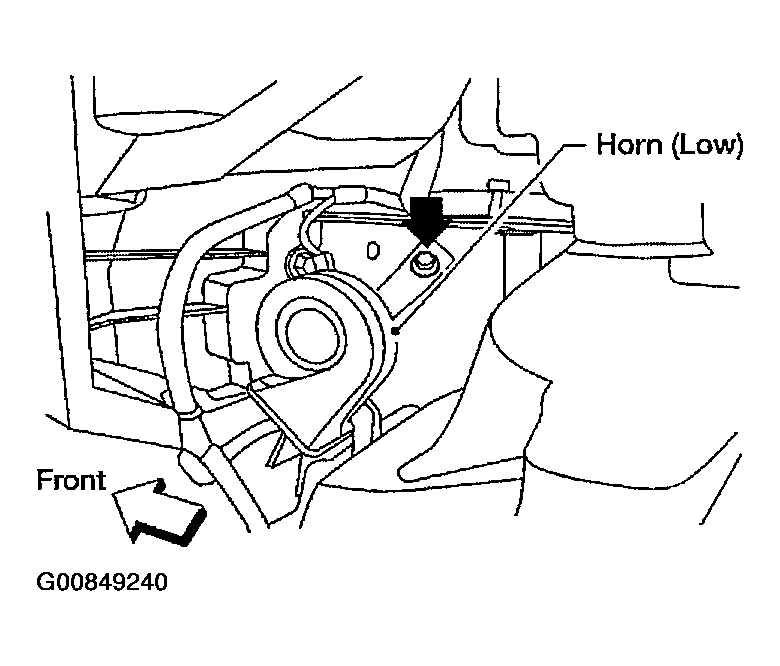

    Fig 2: Removing Horn Bolt (Low)
    G00849240Courtesy of NISSAN MOTOR CO., U.S.A.
