Wiring Diagram - WIP/R -

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: For references in wiring diagrams to PG-POWER, see POWER DISTRIBUTION or GROUND DISTRIBUTION .

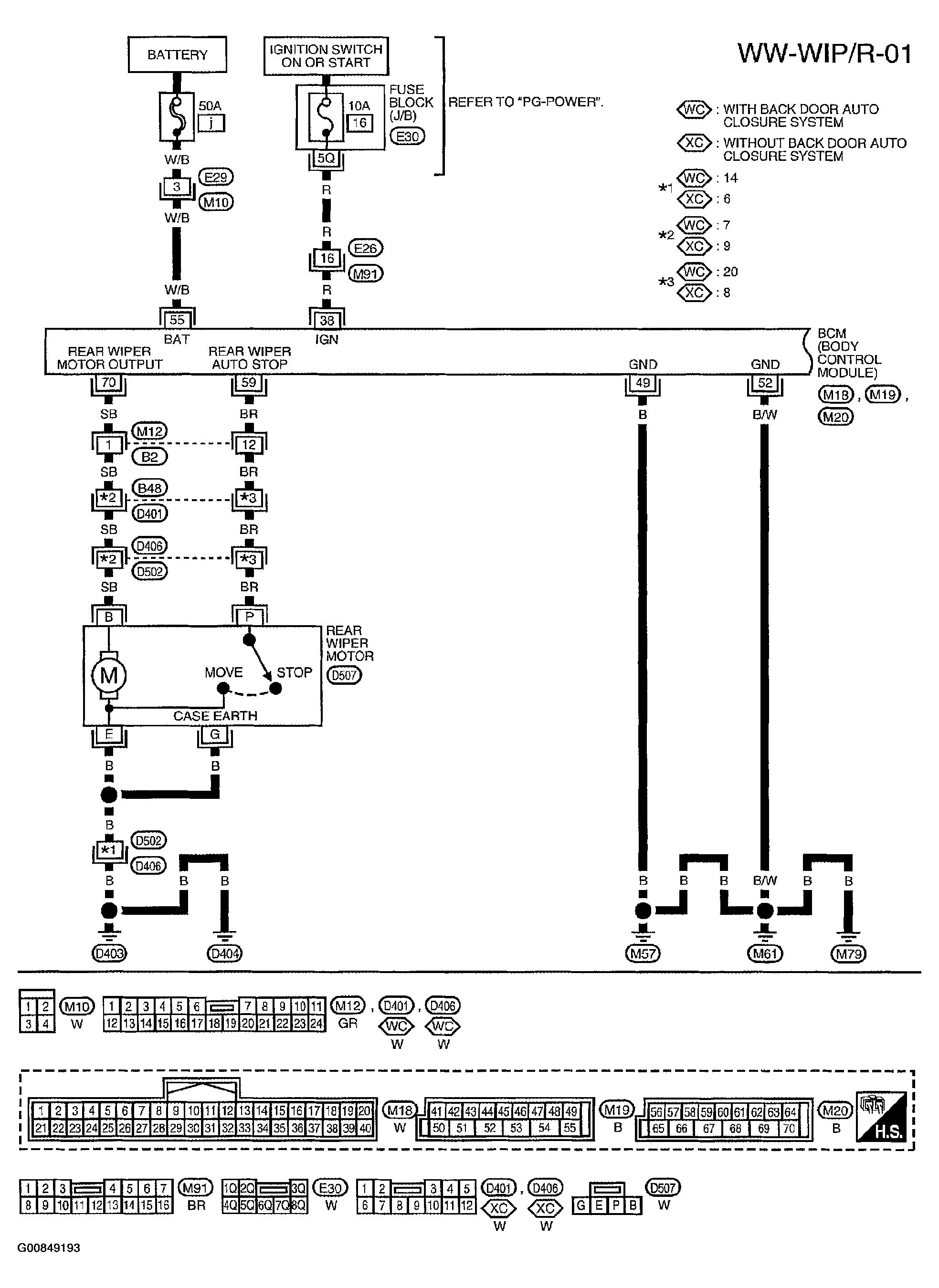

Fig 1: Wiring Diagram - WW-WIP/R-01
G00849193Courtesy of NISSAN MOTOR CO., U.S.A.

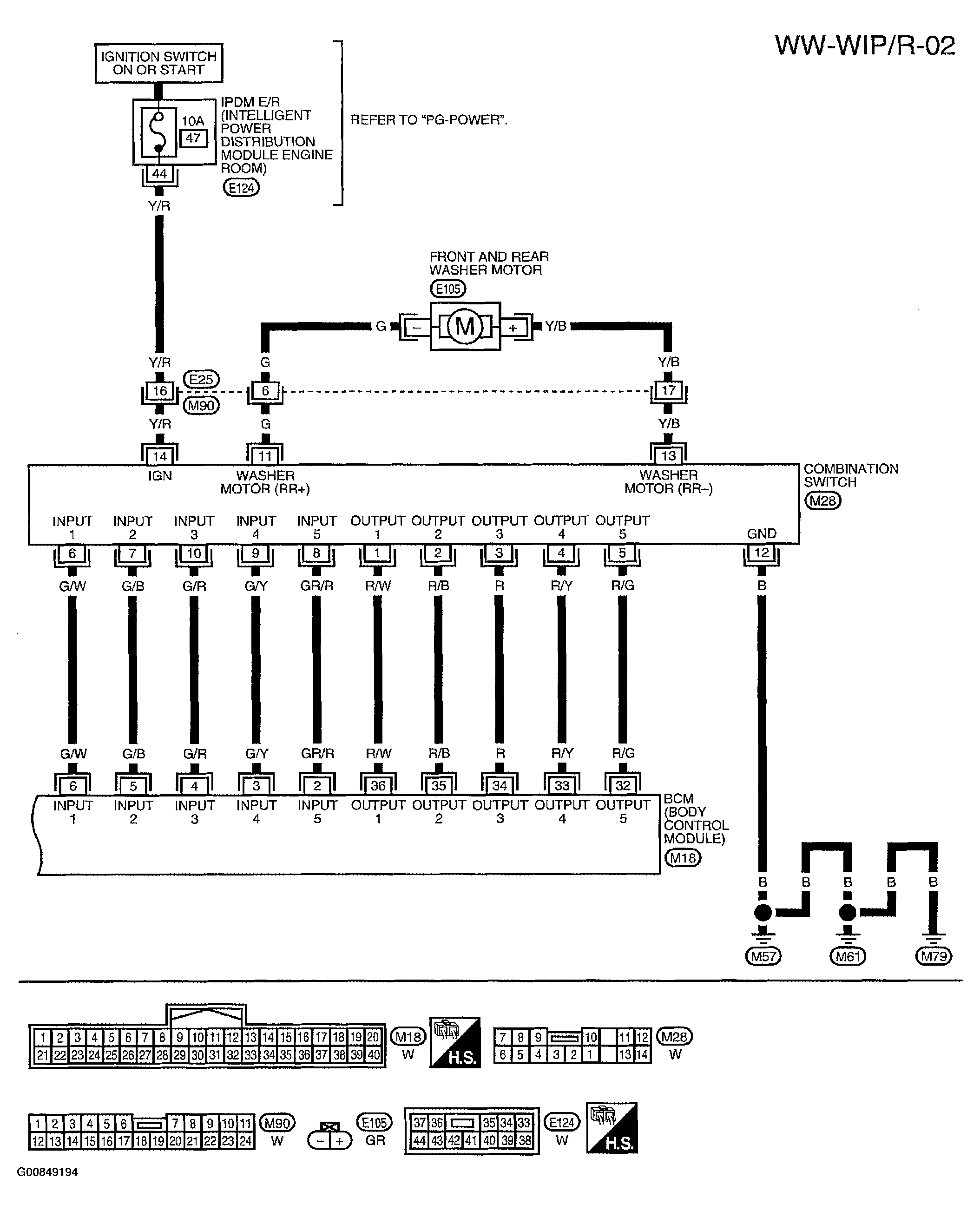

Fig 2: Wiring Diagram - WW-WIP/R-02
G00849194Courtesy of NISSAN MOTOR CO., U.S.A.
